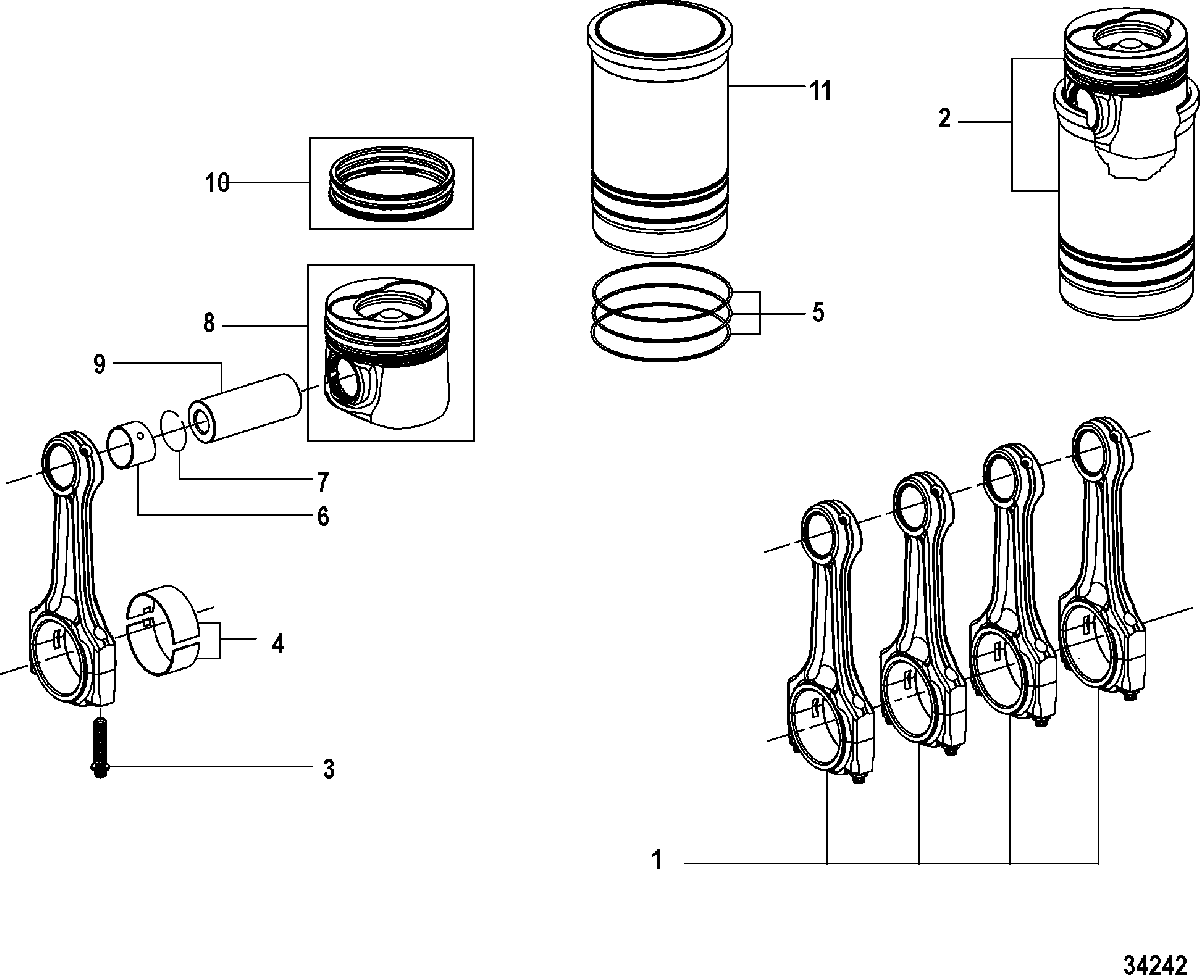

Connecting Rod and Piston, Design-I для Mercruiser - CMD QSD 2.8 ES 170 88300400 THRU 88300453

  • №
    Артикул
    Название
  • 1
    641-898101584 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    51-891726 LINER KIT, Cylinder
    Inboard, 170 Hp SN# 88300007 & Below
    LINER KIT, Cylinder
    Inboard, 170 Hp SN# 88300007 & Below
  • 2
    51-891726 LINER KIT, Cylinder
    Inboard, 210 Hp SN# 88305002 & Below
    LINER KIT, Cylinder
    Inboard, 210 Hp SN# 88305002 & Below
  • 2
    51-891726 LINER KIT, Cylinder
    Inboard, 230 Hp SN# 88310011 & Below
    LINER KIT, Cylinder
    Inboard, 230 Hp SN# 88310011 & Below
  • 2
    51-891726 LINER KIT, Cylinder
    Sterndrive, 170 Hp SN# 88300436 & Below
    LINER KIT, Cylinder
    Sterndrive, 170 Hp SN# 88300436 & Below
  • 2
    51-891726 LINER KIT, Cylinder
    Sterndrive, 210 Hp SN# 88305578 & Below
    LINER KIT, Cylinder
    Sterndrive, 210 Hp SN# 88305578 & Below
  • 2
    51-891726 LINER KIT, Cylinder
    Sterndrive, 230 Hp SN# 88310607 & Below
    LINER KIT, Cylinder
    Sterndrive, 230 Hp SN# 88310607 & Below
  • 3
    10-879150154 BOLT
    BOLT
  • 4
    8M0077370 BEARING ASSEMBLY, (.25 mm)
    BEARING ASSEMBLY, (.25 mm)
  • 4
    31-8M0054658 BEARING ASSEMBLY, Standard
    BEARING ASSEMBLY, Standard
  • 5
    25-879194172 O-RING SET
    O-RING SET
  • 6
    23-898101464 BUSHING, Piston
    BUSHING, Piston
  • 7
    NSS NOT SOLD SEPARATE, RING
    NOT SOLD SEPARATE, RING
  • 8
    795-891727001 PISTON ASSEMBLY, With Rings and Pin
    Inboard, 170 Hp SN# 88300007 & Below
    PISTON ASSEMBLY, With Rings and Pin
    Inboard, 170 Hp SN# 88300007 & Below
  • 8
    795-891727001 PISTON ASSEMBLY, With Rings and Pin
    Inboard, 210 Hp SN# 88305002 & Below
    PISTON ASSEMBLY, With Rings and Pin
    Inboard, 210 Hp SN# 88305002 & Below
  • 8
    795-891727001 PISTON ASSEMBLY, With Rings and Pin
    Inboard, 230 Hp SN# 88310011 & Below
    PISTON ASSEMBLY, With Rings and Pin
    Inboard, 230 Hp SN# 88310011 & Below
  • 8
    795-891727001 PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 170 Hp SN# 88300436 & Below
    PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 170 Hp SN# 88300436 & Below
  • 8
    795-891727001 PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 210 Hp SN# 88305578 & Below
    PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 210 Hp SN# 88305578 & Below
  • 8
    795-891727001 PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 230 Hp SN# 88310607 & Below
    PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 230 Hp SN# 88310607 & Below
  • 9
    NSS NOT SOLD SEPARATE, PIN, Piston
    NOT SOLD SEPARATE, PIN, Piston
  • 10
    39-898101412 RING SET, Piston
    Inboard, 170 Hp SN# 88300007 & Below
    RING SET, Piston
    Inboard, 170 Hp SN# 88300007 & Below
  • 10
    39-898101412 RING SET, Piston
    Inboard, 210 Hp SN# 88305002 & Below
    RING SET, Piston
    Inboard, 210 Hp SN# 88305002 & Below
  • 10
    39-898101412 RING SET, Piston
    Inboard, 230 Hp SN# 88310011 & Below
    RING SET, Piston
    Inboard, 230 Hp SN# 88310011 & Below
  • 10
    39-898101412 RING SET, Piston
    Sterndrive, 170 Hp SN# 88300436 & Below
    RING SET, Piston
    Sterndrive, 170 Hp SN# 88300436 & Below
  • 10
    39-898101412 RING SET, Piston
    Sterndrive, 210 Hp SN# 88305578 & Below
    RING SET, Piston
    Sterndrive, 210 Hp SN# 88305578 & Below
  • 10
    39-898101412 RING SET, Piston
    Sterndrive, 230 Hp SN# 88310607 & Below
    RING SET, Piston
    Sterndrive, 230 Hp SN# 88310607 & Below
  • 11
    51-889857 CYLINDER LINER
    CYLINDER LINER
