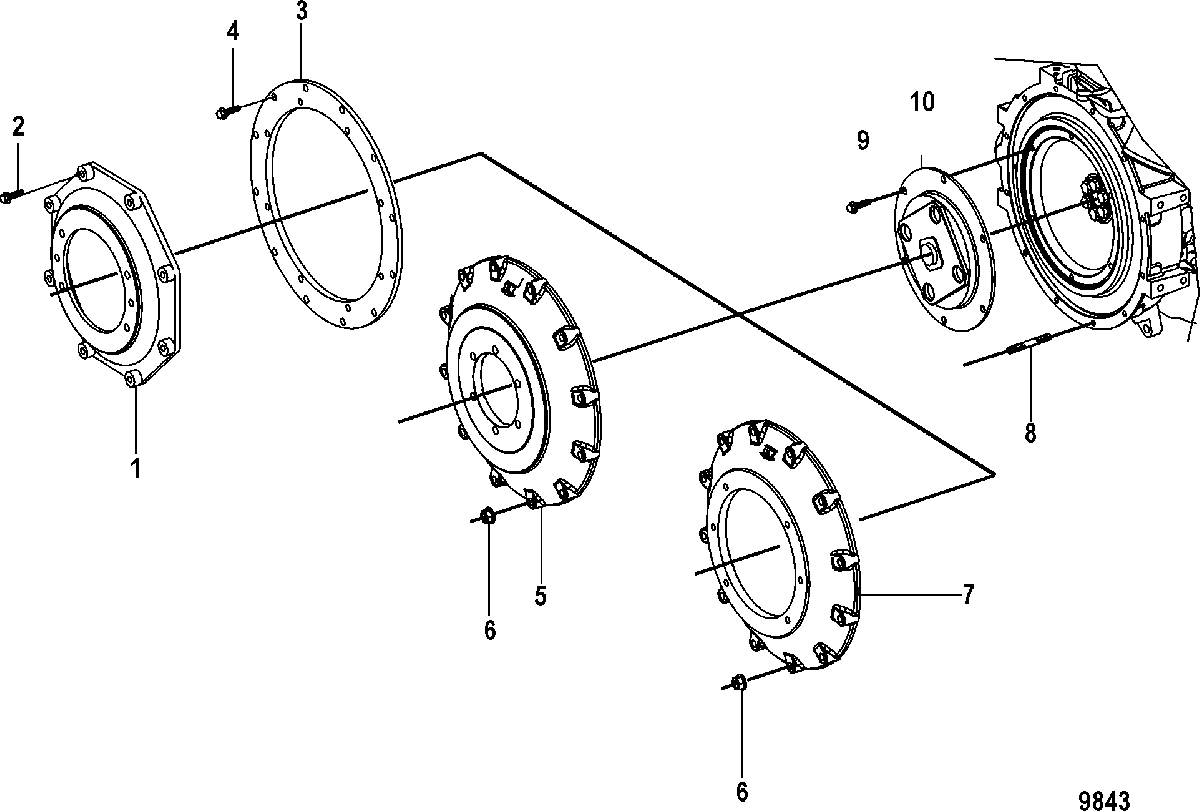

Flywheel Housing Cover(Inboard) для Mercruiser - CMD QSD 2.0 EI 150 88220299 THRU 88220999

  • №
    Артикул
    Название
  • 1
    881787 HOUSING, Flywheel Housing (SAE5)
    (ZF Transmission)
    HOUSING, Flywheel Housing (SAE5)
    (ZF Transmission)
  • 2
    10-898101567 SCREW
    SCREW
  • 3
    896332205 ADAPTOR PLATE (SAE5 to SAE4)
    ADAPTOR PLATE (SAE5 to SAE4)
  • 4
    10-898101563 SCREW
    SCREW
  • 5
    896332204 COVER PLATE, Flywheel Housing (SAE4)
    (Technodrive)
    COVER PLATE, Flywheel Housing (SAE4)
    (Technodrive)
  • 6
    11-898101544 NUT, (M10)
    NUT, (M10)
  • 7
    896332202 COVER PLATE, Flywheel Housing (SAE4)
    (ZF Transmission) All Except Albemarle 290 XF
    COVER PLATE, Flywheel Housing (SAE4)
    (ZF Transmission) All Except Albemarle 290 XF
  • 7
    8M6002130 HOUSING
    Albemarle 290 XF
    HOUSING
    Albemarle 290 XF
  • 8
    16-879148011 STUD, (M10 x 20)
    STUD, (M10 x 20)
  • 9
    10-898101562 SCREW
    All Except Albemarle 290 XF
    SCREW
    All Except Albemarle 290 XF
  • 9
    10-40001192 SCREW, (M10 x 25)
    Albemarle 290 XF
    SCREW, (M10 x 25)
    Albemarle 290 XF
  • 10
    803610 DRIVEPLATE ASSEMBLY
    All Except Albemarle 290 XF
    DRIVEPLATE ASSEMBLY
    All Except Albemarle 290 XF
  • 10
    8M6002138 DRIVEPLATE ASSEMBLY
    Albemarle 290 XF
    DRIVEPLATE ASSEMBLY
    Albemarle 290 XF
