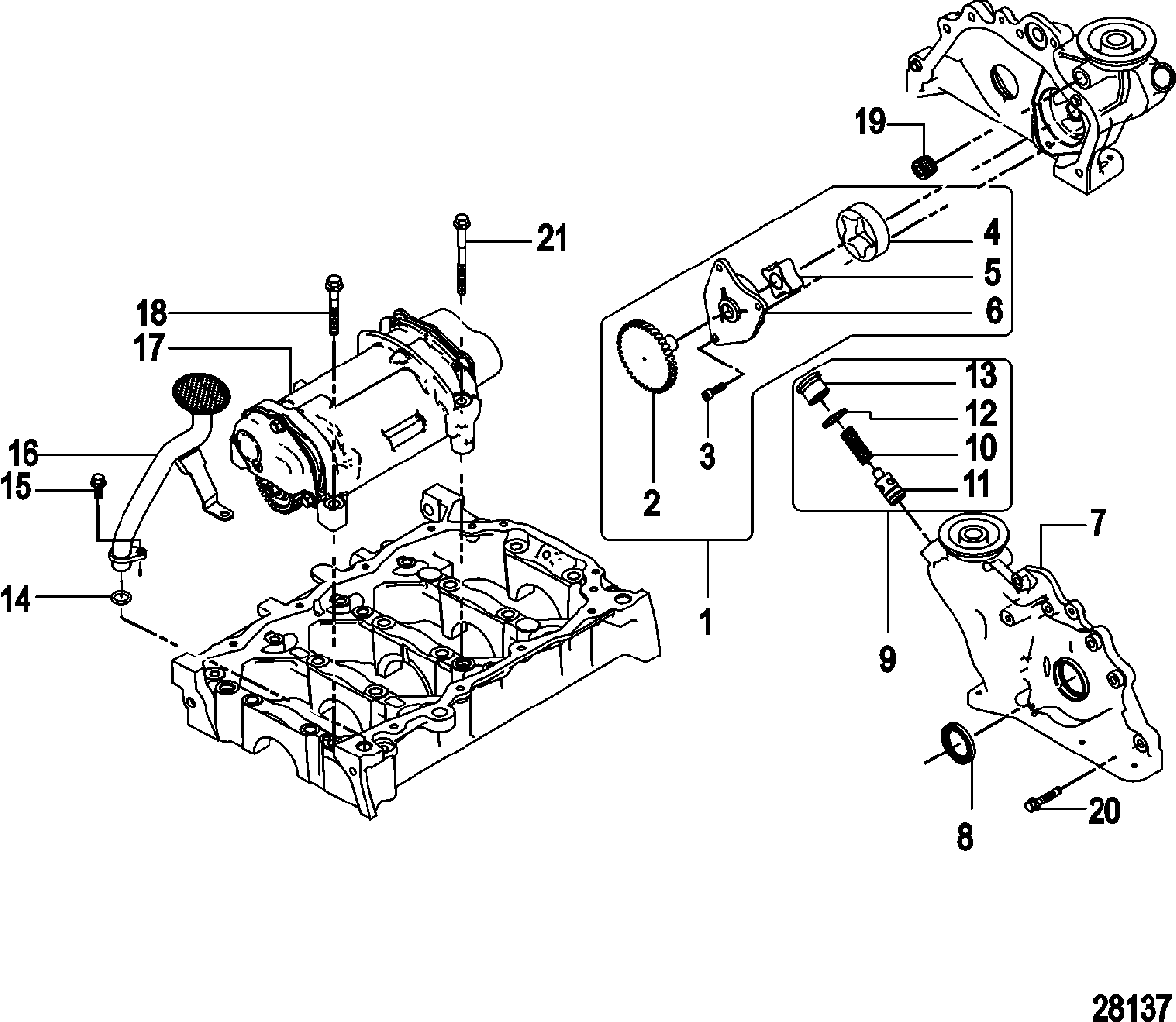

Oil Pump and Balance Shaft для Mercruiser - CMD QSD 2.0 EI 115 88200499 THRU 88200999

  • №
    Артикул
    Название
  • 1
    879172008 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    NSS NOT SOLD SEPARATE, Gear
    NOT SOLD SEPARATE, Gear
  • 3
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 4
    NSS NOT SOLD SEPARATE, External Rotor
    NOT SOLD SEPARATE, External Rotor
  • 5
    NSS NOT SOLD SEPARATE, Internal Rotor
    NOT SOLD SEPARATE, Internal Rotor
  • 6
    NSS NOT SOLD SEPARATE, Oil Pump Body
    NOT SOLD SEPARATE, Oil Pump Body
  • 7
    879172028 COVER ASSEMBLY, Front
    COVER ASSEMBLY, Front
  • 8
    26-879172119 SEAL
    SEAL
  • 9
    879172142 VALVE, Oil Pressure
    VALVE, Oil Pressure
  • 10
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 11
    NSS NOT SOLD SEPARATE, Valve
    NOT SOLD SEPARATE, Valve
  • 12
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 13
    NSS NOT SOLD SEPARATE, Valve Plug
    NOT SOLD SEPARATE, Valve Plug
  • 14
    25-879172111 O-RING
    O-RING
  • 15
    10-8M0129752 SCREW
    SCREW
  • 16
    879172071 PIPE
    PIPE
  • 17
    879172035 BALANCE SHAFT
    BALANCE SHAFT
  • 18
    10-879172079 SCREW
    SCREW
  • 19
    19-879172088 PLUG
    PLUG
  • 20
    10-898101557 SCREW
    SCREW
  • 21
    10-879172080 SCREW
    SCREW
