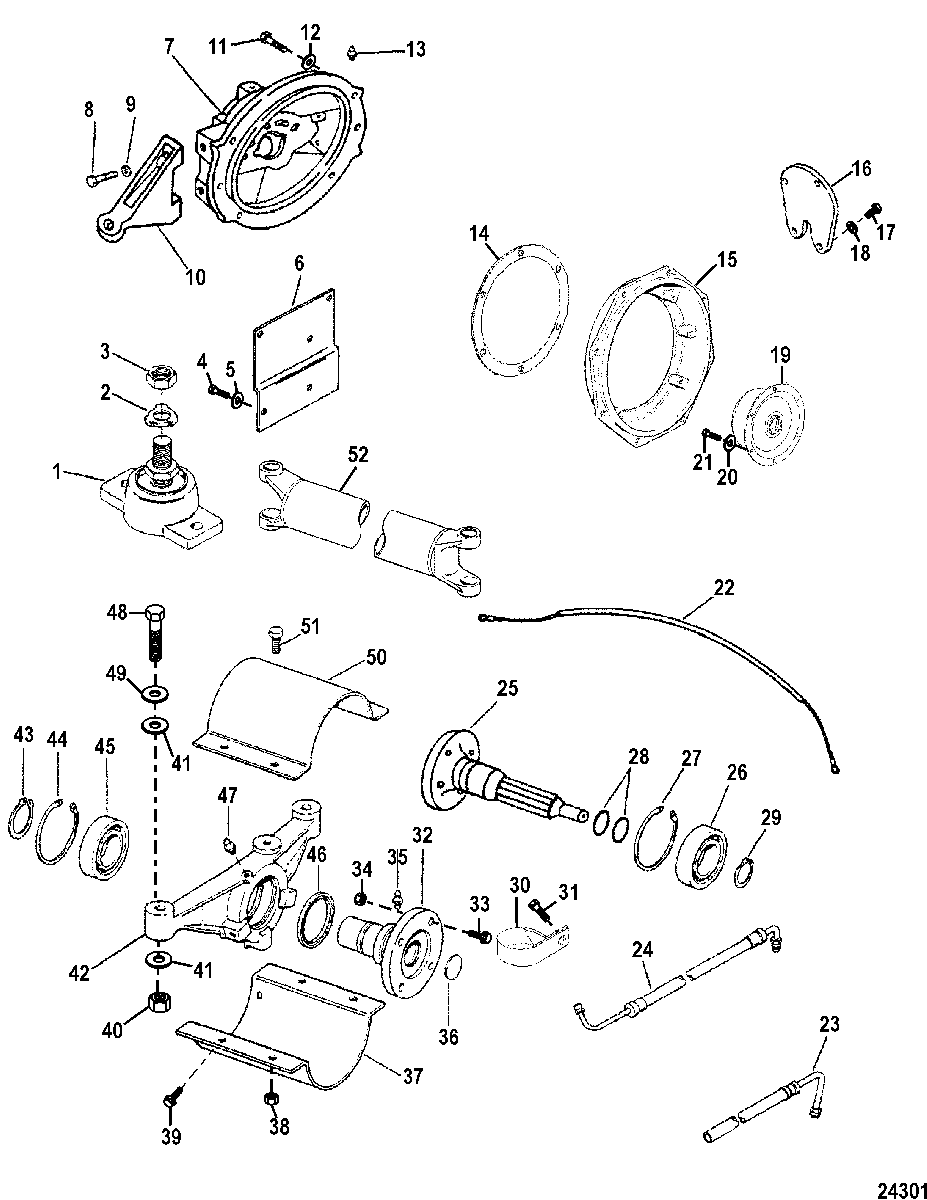

Jackshaft Components для Mercruiser - CMD 4.2 MS 230 88030001 THRU 88030344

  • №
    Артикул
    Название
  • -
    806843A2 JACKSHAFT KIT
    4.2
    JACKSHAFT KIT
    4.2
  • 1
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 2
    14-12657 TAB WASHER
    TAB WASHER
  • 3
    11-859126 NUT, (.750-16)
    NUT, (.750-16)
  • 4
    10-59784 SCREW, (.250-10 x 1.00)
    SCREW, (.250-10 x 1.00)
  • 5
    12-21249 WASHER
    WASHER
  • 6
    41063A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, EXTENSION SHAFT HOUSING
    NOT SOLD SEPARATE, EXTENSION SHAFT HOUSING
  • 8
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 9
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 10
    93923A1 MOUNT ASSEMBLY
    MOUNT ASSEMBLY
  • 11
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 12
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 13
    22-74036 FITTING, Grease
    FITTING, Grease
  • 14
    NSS NOT SOLD SEPARATE, SPACER PLATE
    NOT SOLD SEPARATE, SPACER PLATE
  • 15
    881787 HOUSING
    HOUSING
  • 16
    861776A2 PLATE KIT
    PLATE KIT
  • 17
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 18
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 19
    19100A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 20
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 21
    10-40001189 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 22
    84-41575A4 HARNESS ASSEMBLY, Extension
    HARNESS ASSEMBLY, Extension
  • 23
    32-80622145 RETURN HOSE
    RETURN HOSE
  • 24
    32-80622236 PRESSURE HOSE
    PRESSURE HOSE
  • 25
    93906A2 SHAFT
    SHAFT
  • 26
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 27
    53-94104 RING, Retaining
    RING, Retaining
  • 28
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 29
    53-8M0141818 RING, Retaining
    RING, Retaining
  • 30
    54-62494 CLIP
    CLIP
  • 31
    10-59784 SCREW, (.250-10 x 1.00)
    SCREW, (.250-10 x 1.00)
  • 32
    817415T SHAFT
    SHAFT
  • 33
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 34
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 35
    22-74036 FITTING, Grease
    FITTING, Grease
  • 36
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 37
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 38
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 39
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 40
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 41
    12-42307 WASHER
    WASHER
  • 42
    817416A4 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 43
    53-93915 RING, Retaining
    RING, Retaining
  • 44
    53-93914 RING, Retaining
    RING, Retaining
  • 45
    30-93944A2 BEARING SET, Ball
    BEARING SET, Ball
  • 46
    26-93924 SEAL
    SEAL
  • 47
    22-74036 FITTING, Grease
    FITTING, Grease
  • 48
    10-57053 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 49
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 50
    93919A1 SHIELD, Upper
    SHIELD, Upper
  • 51
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 52
    45-94819A3 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 52
    45-94819T5 DRIVESHAFT ASSEMBLY, (34.50 Inches)
    DRIVESHAFT ASSEMBLY, (34.50 Inches)
  • 52
    45-864286A1 DRIVESHAFT ASSEMBLY, (63.00 Inches)
    DRIVESHAFT ASSEMBLY, (63.00 Inches)
