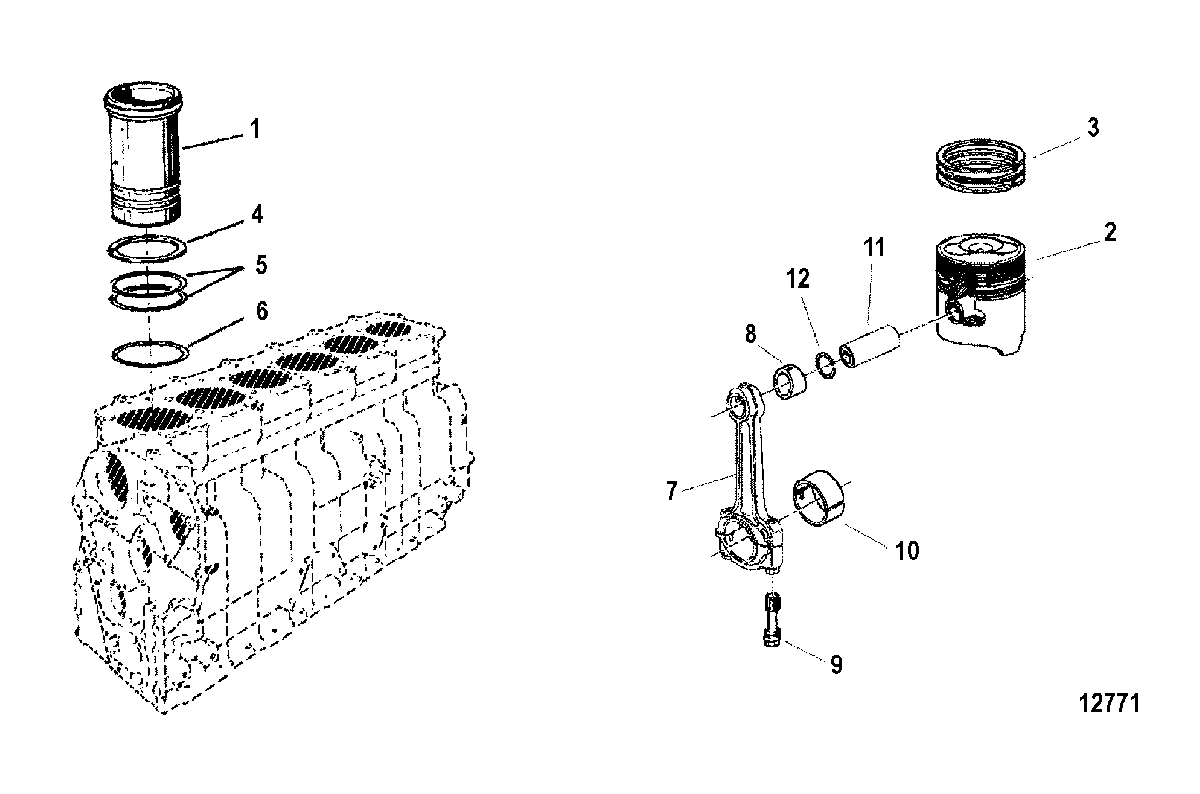

Connecting Rod And Piston для Mercruiser - CMD 4.2 MS 200 88020001 THRU 88020166
-
№АртикулНазвание
-
-51-803123A1 LINER KIT
200 SN# 88020010 & BelowLINER KIT
200 SN# 88020010 & Below -
-51-803123A1 LINER KIT
230 SN# 88030132 & BelowLINER KIT
230 SN# 88030132 & Below -
-51-891726 LINER KIT
200 SN# 88020011 & UpLINER KIT
200 SN# 88020011 & Up -
-51-891726 LINER KIT
230 SN# 88030133 & UpLINER KIT
230 SN# 88030133 & Up -
151-889857 CYLINDER LINER
200 SN# 88020010 & BelowCYLINDER LINER
200 SN# 88020010 & Below -
151-889857 CYLINDER LINER
230 SN# 88030132 & BelowCYLINDER LINER
230 SN# 88030132 & Below -
2795-803122T01 PISTON ASSEMBLY
200 SN# 88020010 & BelowPISTON ASSEMBLY
200 SN# 88020010 & Below -
2795-803122T01 PISTON ASSEMBLY
230 SN# 88030132 & BelowPISTON ASSEMBLY
230 SN# 88030132 & Below -
2795-891727001 PISTON ASSEMBLY, With Rings and Pin
200 SN# 88020011 & UpPISTON ASSEMBLY, With Rings and Pin
200 SN# 88020011 & Up -
2795-891727001 PISTON ASSEMBLY, With Rings and Pin
230 SN# 88030133 & UpPISTON ASSEMBLY, With Rings and Pin
230 SN# 88030133 & Up -
339-811386 RING SET
200 SN# 88020010 & BelowRING SET
200 SN# 88020010 & Below -
339-811386 RING SET
230 SN# 88030132 & BelowRING SET
230 SN# 88030132 & Below -
339-889859 RING SET
200 SN# 88020011 & UpRING SET
200 SN# 88020011 & Up -
339-889859 RING SET
230 SN# 88030133 & UpRING SET
230 SN# 88030133 & Up -
415-801331607 SHIM, (15 mm)SHIM, (15 mm)
-
415-801331608 SHIM, (20 mm)SHIM, (20 mm)
-
415-801763362 SHIM, (23 mm)SHIM, (23 mm)
-
525-817728 O-RINGO-RING
-
625-817729 O-RINGO-RING
-
7641-879172156 CONNECTING ROD ASSEMBLY
200 SN# 88020010 & BelowCONNECTING ROD ASSEMBLY
200 SN# 88020010 & Below -
7641-879172156 CONNECTING ROD ASSEMBLY
230 SN# 88030132 & BelowCONNECTING ROD ASSEMBLY
230 SN# 88030132 & Below -
7641-889860 CONNECTING ROD ASSEMBLY
200 SN# 88020011 & UpCONNECTING ROD ASSEMBLY
200 SN# 88020011 & Up -
7641-889860 CONNECTING ROD ASSEMBLY
230 SN# 88030133 & UpCONNECTING ROD ASSEMBLY
230 SN# 88030133 & Up -
823-854090 BUSHING
200 SN# 88020010 & BelowBUSHING
200 SN# 88020010 & Below -
823-854090 BUSHING
230 SN# 88030132 & BelowBUSHING
230 SN# 88030132 & Below -
823-898101464 BUSHING
200 SN# 88020011 & UpBUSHING
200 SN# 88020011 & Up -
823-898101464 BUSHING
230 SN# 88030133 & UpBUSHING
230 SN# 88030133 & Up -
910-801331713 BOLT
200 SN# 88020010 & BelowBOLT
200 SN# 88020010 & Below -
910-801331713 BOLT
230 SN# 88030132 & BelowBOLT
230 SN# 88030132 & Below -
910-879150154 BOLT
200 SN# 88020011 & UpBOLT
200 SN# 88020011 & Up -
910-879150154 BOLT
230 SN# 88030133 & UpBOLT
230 SN# 88030133 & Up -
1031-8M0054658 BEARING, StandardBEARING, Standard
-
108M0077370 BEARING, (25 mm)BEARING, (25 mm)
-
1141-811387 PIN
200 SN# 88020010 & BelowPIN
200 SN# 88020010 & Below -
1141-811387 PIN
230 SN# 88030132 & BelowPIN
230 SN# 88030132 & Below -
1240-801331725 RING
200 SN# 88020010 & BelowRING
200 SN# 88020010 & Below -
1240-801331725 RING
230 SN# 88030132 & BelowRING
230 SN# 88030132 & Below -
-27-898272016 GASKET SET, OverhaulGASKET SET, Overhaul
