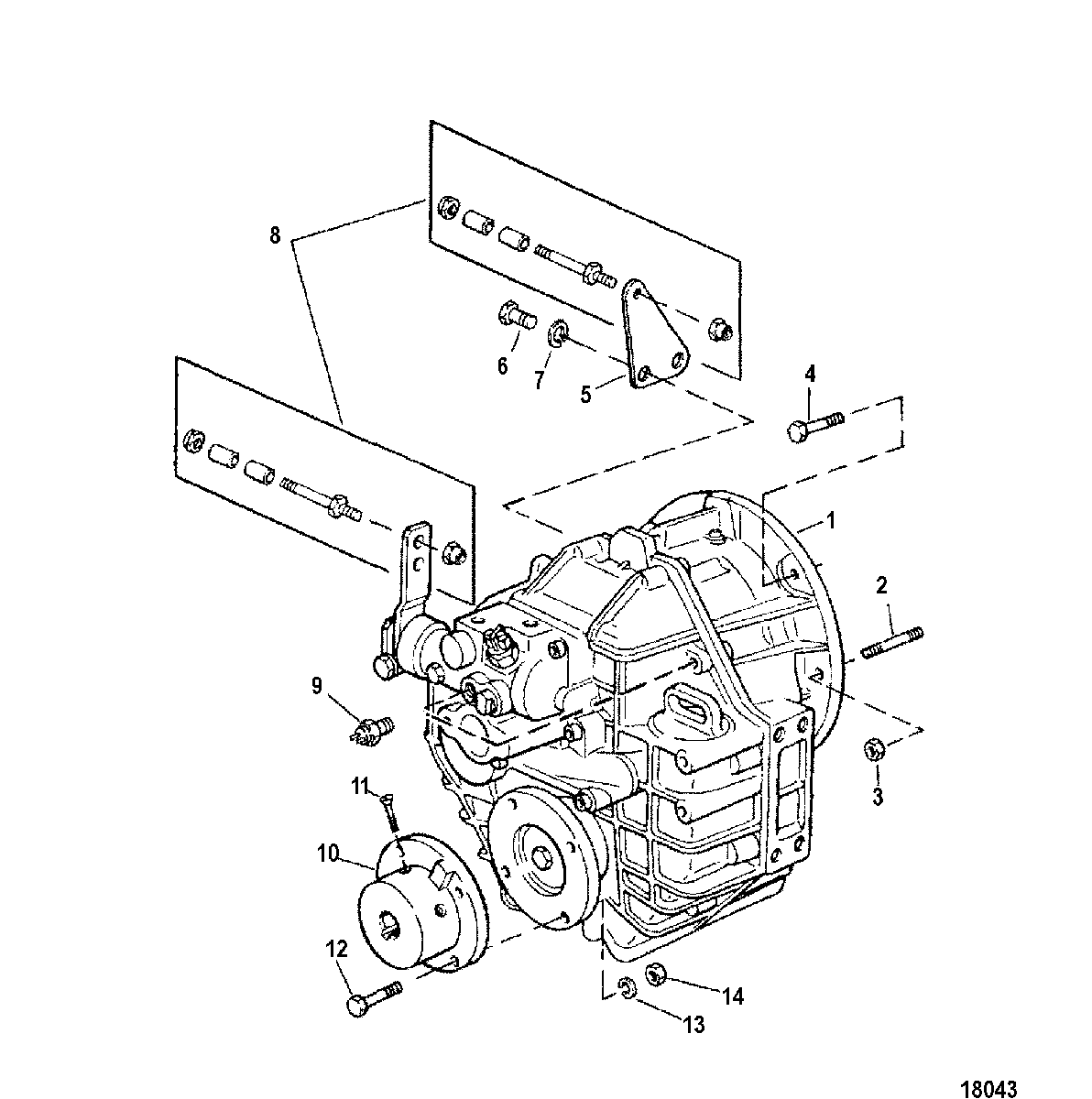

Transmission and Related Parts(INBOARD) для Mercruiser - CMD 4.2 MI 230 88030400 THRU 88040000

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION, (1.5:1 Ratio), Down Angle
    TRANSMISSION, (1.5:1 Ratio), Down Angle
  • 1
    863744T3 TRANSMISSION, (2.0:1 Ratio), Down Angle
    TRANSMISSION, (2.0:1 Ratio), Down Angle
  • 1
    863744T4 TRANSMISSION, (2.50:1 Ratio), Down Angle
    TRANSMISSION, (2.50:1 Ratio), Down Angle
  • 1
    863745T2 TRANSMISSION, (1.5:1 Ratio), V Drive
    TRANSMISSION, (1.5:1 Ratio), V Drive
  • 1
    863745T3 TRANSMISSION, (2.0:1 Ratio), V Drive
    TRANSMISSION, (2.0:1 Ratio), V Drive
  • 1
    863745T4 TRANSMISSION, (2.5:1 Ratio), V Drive
    TRANSMISSION, (2.5:1 Ratio), V Drive
  • 2
    16-910002 STUD
    STUD
  • 3
    11-809922113 NUT
    (Refer to MerCruiser Parts Bulletin 95-24)
    NUT
    (Refer to MerCruiser Parts Bulletin 95-24)
  • 4
    10-809913837 SCREW
    (Refer to MerCruiser Parts Bulletin 95-24)
    SCREW
    (Refer to MerCruiser Parts Bulletin 95-24)
  • 5
    806238 BRACKET
    BRACKET
  • 6
    10-809919969 SCREW
    SCREW
  • 7
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 8
    16-97477A3 STUD KIT
    STUD KIT
  • 9
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 10
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 10
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 10
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 10
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 10
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 10
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 10
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 11
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 11
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 12
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 13
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 14
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • -
    877523 VALVE, Trolling
    VALVE, Trolling
