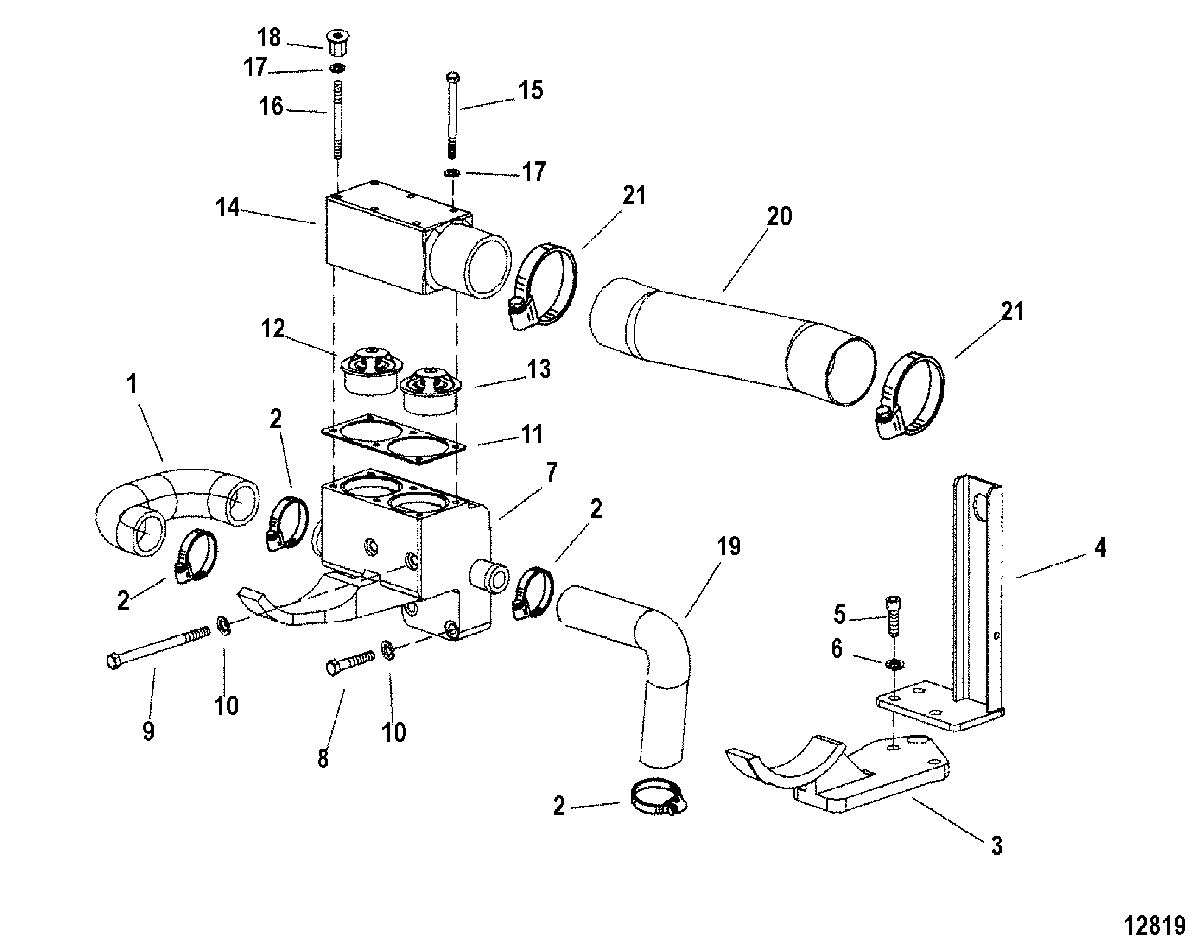

Thermostat Assembly and Hoses для Mercruiser - CMD 4.2 ES 300 VM 254 I/L6 88050001 THRU 88050643

  • №
    Артикул
    Название
  • 1
    32-805741 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 2
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 3
    884002 BRACKET, Heat Exchanger Support
    BRACKET, Heat Exchanger Support
  • 4
    854165 LIFTING EYE
    LIFTING EYE
  • 5
    10-854166 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 6
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 7
    879172210 HOUSING, Thermostat
    HOUSING, Thermostat
  • 8
    10-1994360 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 9
    10-4000363 SCREW, (M8 x 100)
    SCREW, (M8 x 100)
  • 10
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 11
    27-805723 GASKET
    GASKET
  • 12
    805947T THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 13
    805948 THERMOSTAT, 82A°C (180A°F)
    THERMOSTAT, 82A°C (180A°F)
  • 14
    879288013 COVER, Thermostat Housing
    COVER, Thermostat Housing
  • 15
    10-4009238 SCREW, (M6 x 80), Mount Cover
    SCREW, (M6 x 80), Mount Cover
  • 16
    16-898101516 STUD, (M6 x 75)
    STUD, (M6 x 75)
  • 17
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 18
    23-854170 SPACER, Engine Cover
    SPACER, Engine Cover
  • 19
    32-805744 HOSE, Thermostat Housing to Water Pump By-Pass
    HOSE, Thermostat Housing to Water Pump By-Pass
  • 20
    32-805739 HOSE, Thermostat Housing to Heat Exchanger
    HOSE, Thermostat Housing to Heat Exchanger
  • 21
    54-815504348 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    27-898272016 GASKET SET, Overhaul
    GASKET SET, Overhaul
