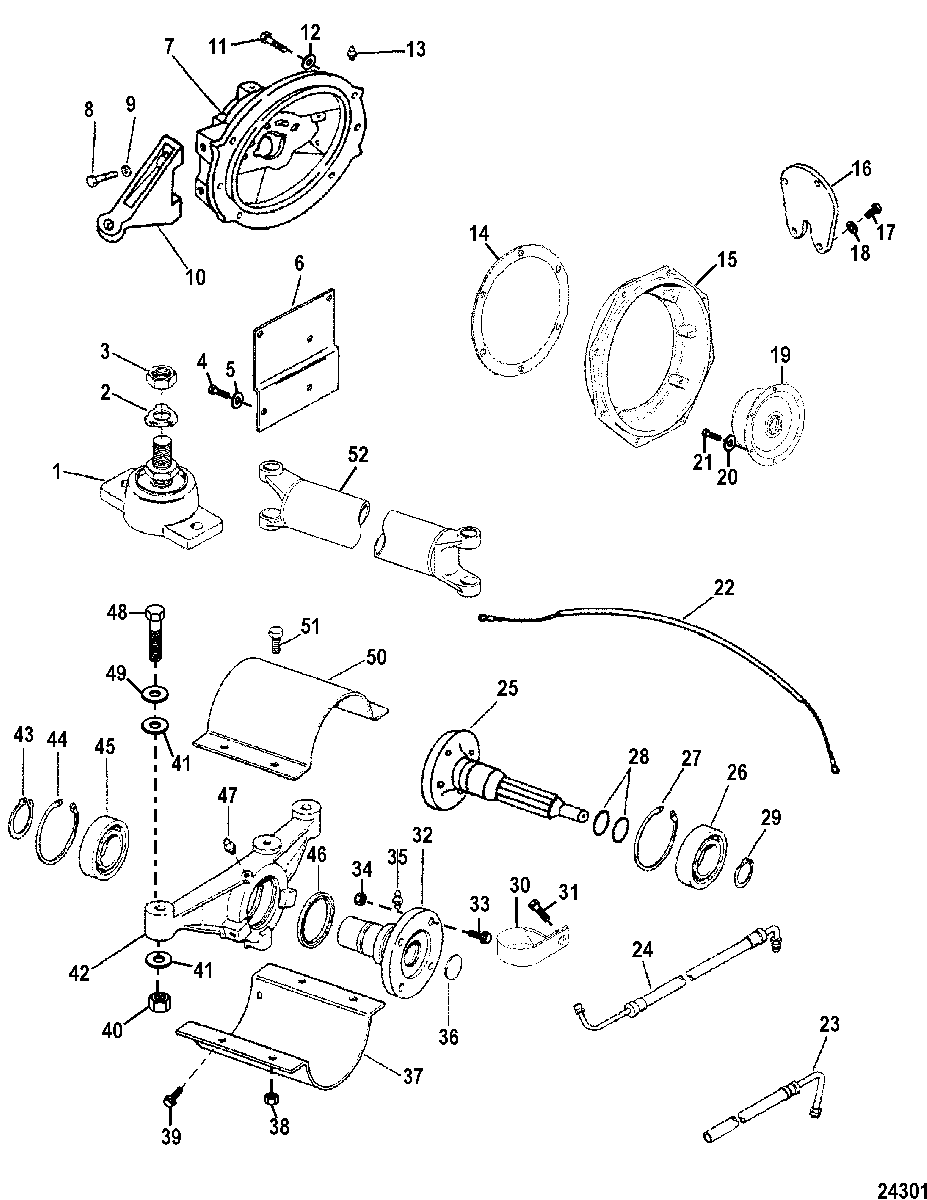

Jackshaft Components для Mercruiser - CMD 4.2 ES 270 88060001 THRU 88070000
-
№АртикулНазвание
-
-806843A2 JACKSHAFT KIT
4.2JACKSHAFT KIT
4.2 -
1814263A1 BASE ASSEMBLYBASE ASSEMBLY
-
214-12657 TAB WASHERTAB WASHER
-
311-859126 NUT, (.750-16)NUT, (.750-16)
-
410-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
512-21249 WASHERWASHER
-
641063A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
7NSS NOT SOLD SEPARATE, EXTENSION SHAFT HOUSINGNOT SOLD SEPARATE, EXTENSION SHAFT HOUSING
-
810-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
913-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1093923A1 MOUNT ASSEMBLYMOUNT ASSEMBLY
-
1110-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
1213-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1322-74036 FITTING, GreaseFITTING, Grease
-
14NSS NOT SOLD SEPARATE, SPACER PLATENOT SOLD SEPARATE, SPACER PLATE
-
15881787 HOUSINGHOUSING
-
16861776A2 PLATE KITPLATE KIT
-
1710-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1813-41471 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1919100A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2013-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
2110-40001189 SCREW, (M10 x 20)SCREW, (M10 x 20)
-
2284-41575A4 HARNESS ASSEMBLY, ExtensionHARNESS ASSEMBLY, Extension
-
2332-80622145 RETURN HOSERETURN HOSE
-
2432-80622236 PRESSURE HOSEPRESSURE HOSE
-
2593906A2 SHAFTSHAFT
-
2630-879194A03 BEARING, BallBEARING, Ball
-
2753-94104 RING, RetainingRING, Retaining
-
2825-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
2953-8M0141818 RING, RetainingRING, Retaining
-
3054-62494 CLIPCLIP
-
3110-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
32817415T SHAFTSHAFT
-
3310-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
3411-82670815 NUT, (.437-20)NUT, (.437-20)
-
3522-74036 FITTING, GreaseFITTING, Grease
-
3619-93921 EXPANSION PLUGEXPANSION PLUG
-
3793918A1 SHIELD, LowerSHIELD, Lower
-
3811-32219 NUT, (.375-16)NUT, (.375-16)
-
3910-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
4011-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
4112-42307 WASHERWASHER
-
42817416A4 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
4353-93915 RING, RetainingRING, Retaining
-
4453-93914 RING, RetainingRING, Retaining
-
4530-93944A2 BEARING SET, BallBEARING SET, Ball
-
4626-93924 SEALSEAL
-
4722-74036 FITTING, GreaseFITTING, Grease
-
4810-57053 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
4912-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
5093919A1 SHIELD, UpperSHIELD, Upper
-
5110-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
5245-94819A3 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
5245-94819T5 DRIVESHAFT ASSEMBLY, (34.50 Inches)DRIVESHAFT ASSEMBLY, (34.50 Inches)
-
5245-864286A1 DRIVESHAFT ASSEMBLY, (63.00 Inches)DRIVESHAFT ASSEMBLY, (63.00 Inches)
