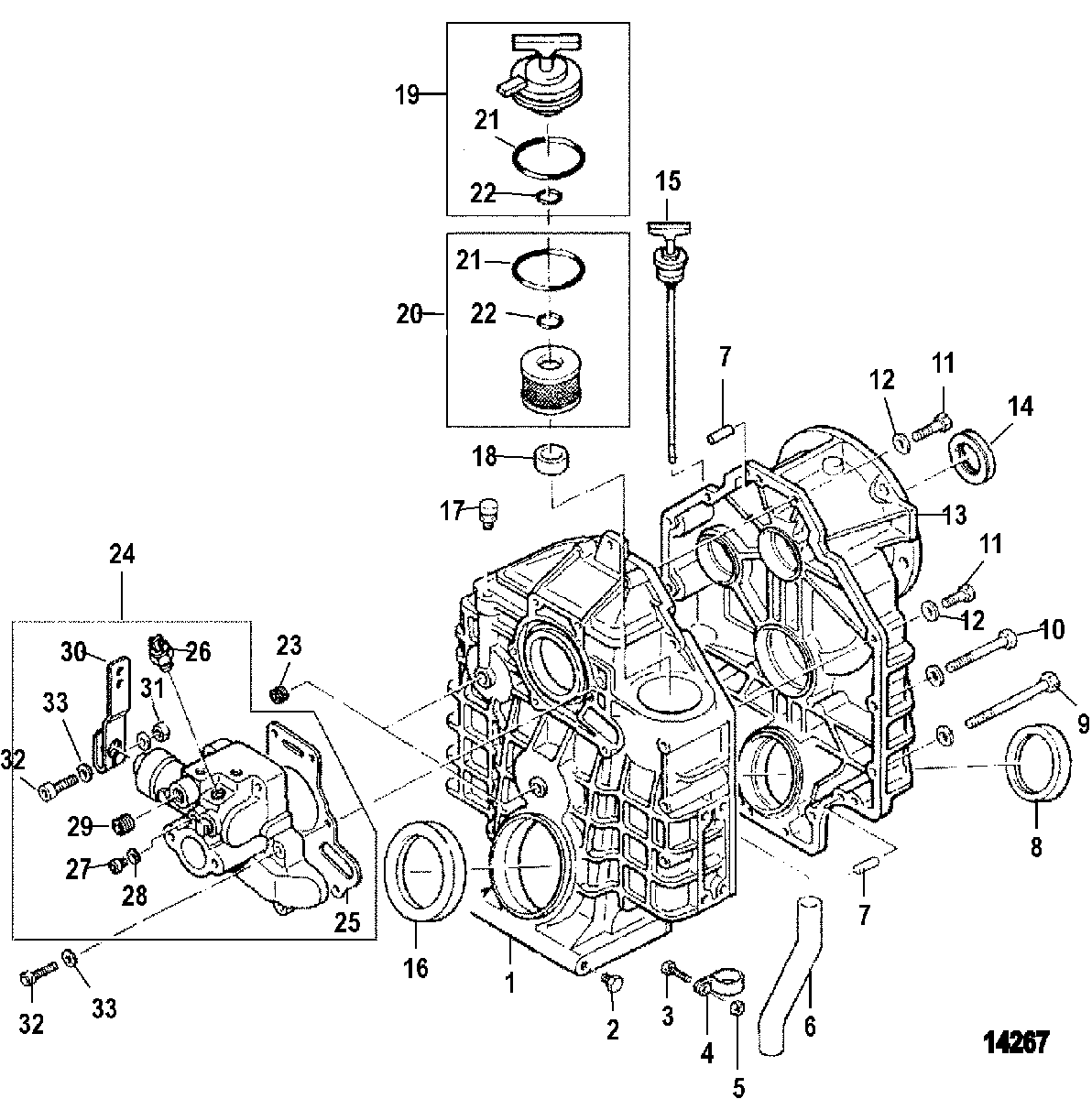

Transmission(V-Drive) (Inboard) для Mercruiser - CMD 4.2 EI 250 88040001 THRU 88040508

  • №
    Артикул
    Название
  • -
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • -
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • -
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    TRANSMISSION, (2.5:1 Ratio)
  • 1
    NLA No Longer Available, Housing
    (Refer To Note 1)
    No Longer Available, Housing
    (Refer To Note 1)
  • 2
    NLA No Longer Available, Plug
    (Refer To Note 1)
    No Longer Available, Plug
    (Refer To Note 1)
  • 3
    NLA No Longer Available, Screw
    (Refer To Note 1)
    No Longer Available, Screw
    (Refer To Note 1)
  • 4
    NLA No Longer Available, Clamp
    (Refer To Note 1)
    No Longer Available, Clamp
    (Refer To Note 1)
  • 5
    NLA No Longer Available, Nut
    (Refer To Note 1)
    No Longer Available, Nut
    (Refer To Note 1)
  • 6
    NLA No Longer Available, Hose Suction
    (Refer To Note 1)
    No Longer Available, Hose Suction
    (Refer To Note 1)
  • 7
    NLA No Longer Available, Pin, Dowel
    (Refer To Note 1)
    No Longer Available, Pin, Dowel
    (Refer To Note 1)
  • 8
    26-811957 SEAL, Oil
    SEAL, Oil
  • 9
    NLA No Longer Available, Screw
    (Refer To Note 1)
    No Longer Available, Screw
    (Refer To Note 1)
  • 10
    NLA No Longer Available, Screw
    (Refer To Note 1)
    No Longer Available, Screw
    (Refer To Note 1)
  • 11
    10-813282 SCREW
    SCREW
  • 12
    NLA No Longer Available, Lockwasher
    (Refer To Note 1)
    No Longer Available, Lockwasher
    (Refer To Note 1)
  • 13
    NLA No Longer Available, Housing
    (Refer To Note 1)
    No Longer Available, Housing
    (Refer To Note 1)
  • 14
    26-813286 SEAL
    SEAL
  • 15
    811964 DIPSTICK
    DIPSTICK
  • 16
    26-811956 SEAL, Oil
    SEAL, Oil
  • 17
    813280 VENT CAP
    VENT CAP
  • 18
    NLA No Longer Available, Washer
    (Refer To Note 1)
    No Longer Available, Washer
    (Refer To Note 1)
  • 19
    NLA No Longer Available, Filter Cover Kit
    (Includes Refference Number 21 And 22) (Refer To Note1)
    No Longer Available, Filter Cover Kit
    (Includes Refference Number 21 And 22) (Refer To Note1)
  • 20
    35-879194241 FLUID FILTER KIT
    FLUID FILTER KIT
  • 21
    25-813407 O-RING
    O-RING
  • 22
    NLA No Longer Available, O-Ring
    (Refer to Note 1)
    No Longer Available, O-Ring
    (Refer to Note 1)
  • 23
    NLA No Longer Available, Plug
    No Longer Available, Plug
  • 24
    813295 CONTROL BLOCK
    CONTROL BLOCK
  • 25
    27-813301 GASKET
    GASKET
  • 26
    87-813300 SWITCH
    SWITCH
  • 27
    NLA No Longer Available, Screw
    No Longer Available, Screw
  • 28
    NLA No Longer Available, Washer
    (Refer To Note 1)
    No Longer Available, Washer
    (Refer To Note 1)
  • 29
    NLA No Longer Available, Plug
    (Refer To Note 1)
    No Longer Available, Plug
    (Refer To Note 1)
  • 30
    NLA No Longer Available, Lever, Shift
    (Refer To Note 1)
    No Longer Available, Lever, Shift
    (Refer To Note 1)
  • 31
    NLA No Longer Available, Nut
    (Refer To Note 1)
    No Longer Available, Nut
    (Refer To Note 1)
  • 32
    10-813294 SCREW
    SCREW
  • 33
    NLA No Longer Available, Lockwasher
    No Longer Available, Lockwasher
