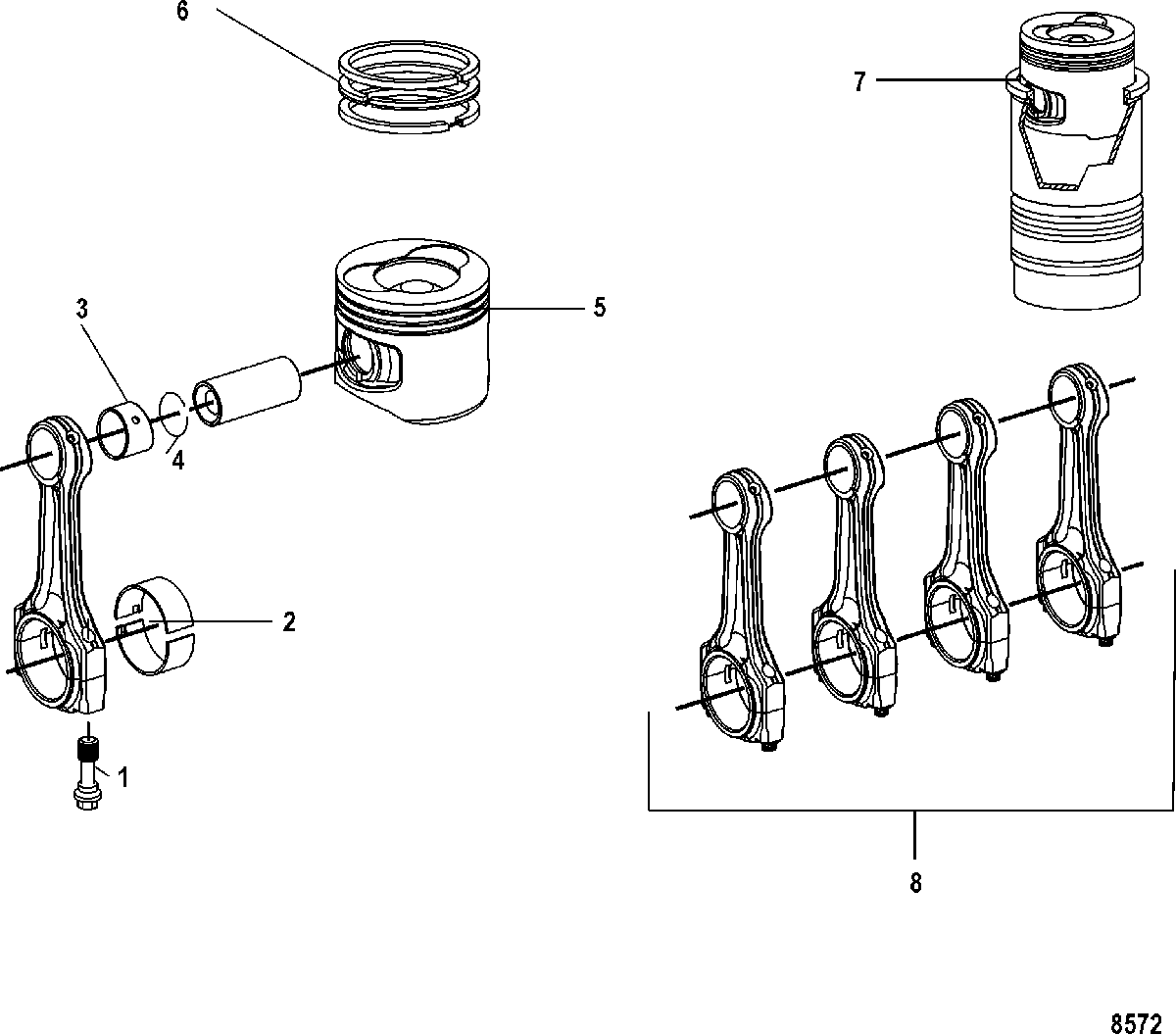

Connecting Rod and Piston для Mercruiser - CMD 2.8 ES 170 88005200 THRU 88005518

  • №
    Артикул
    Название
  • 1
    10-879150154 BOLT
    BOLT
  • 2
    31-8M0054658 BEARING, Standard
    BEARING, Standard
  • 2
    8M0077370 BEARING, (25 mm)
    BEARING, (25 mm)
  • 3
    23-898101464 BUSHING, Con Rod
    BUSHING, Con Rod
  • 4
    795-891727001 RING
    RING
  • 5
    795-891727001 PISTON, With Rings and Pin
    170 SN# 88012304 & Below
    PISTON, With Rings and Pin
    170 SN# 88012304 & Below
  • 5
    795-891727001 PISTON, With Rings and Pin
    200 SN# 88005492 & Below
    PISTON, With Rings and Pin
    200 SN# 88005492 & Below
  • 5
    795-8M0076459 PISTON, With Rings and Pin
    170 SN# 88012305 & Up
    PISTON, With Rings and Pin
    170 SN# 88012305 & Up
  • 5
    795-8M0076459 PISTON, With Rings and Pin
    200 SN# 88005493 & Up
    PISTON, With Rings and Pin
    200 SN# 88005493 & Up
  • 6
    39-889859 RING SET, Piston
    170 SN# 88010930 & Below
    RING SET, Piston
    170 SN# 88010930 & Below
  • 6
    39-889859 RING SET, Piston
    200 SN# 88005253 & Below
    RING SET, Piston
    200 SN# 88005253 & Below
  • 6
    39-898101412 RING SET, Piston
    170 SN# 88010931 THRU 88012304
    RING SET, Piston
    170 SN# 88010931 THRU 88012304
  • 6
    39-898101412 RING SET, Piston
    200 SN# 88005254 THRU 88005492
    RING SET, Piston
    200 SN# 88005254 THRU 88005492
  • 6
    39-879288074 RING SET, Piston
    170 SN# 88012305 & Up
    RING SET, Piston
    170 SN# 88012305 & Up
  • 6
    39-879288074 RING SET, Piston
    200 SN# 88005493 & Up
    RING SET, Piston
    200 SN# 88005493 & Up
  • 7
    51-891726 LINER KIT, With Piston and Rings
    170 SN# 88012304 & Below
    LINER KIT, With Piston and Rings
    170 SN# 88012304 & Below
  • 7
    51-891726 LINER KIT, With Piston and Rings
    200 SN# 88005492 & Below
    LINER KIT, With Piston and Rings
    200 SN# 88005492 & Below
  • 7
    51-879172216 LINER KIT, With Piston and Rings
    170 SN# 88012305 & Up
    LINER KIT, With Piston and Rings
    170 SN# 88012305 & Up
  • 7
    51-879172216 LINER KIT, With Piston and Rings
    200 SN# 88005493 & Up
    LINER KIT, With Piston and Rings
    200 SN# 88005493 & Up
  • 8
    641-898101584 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
