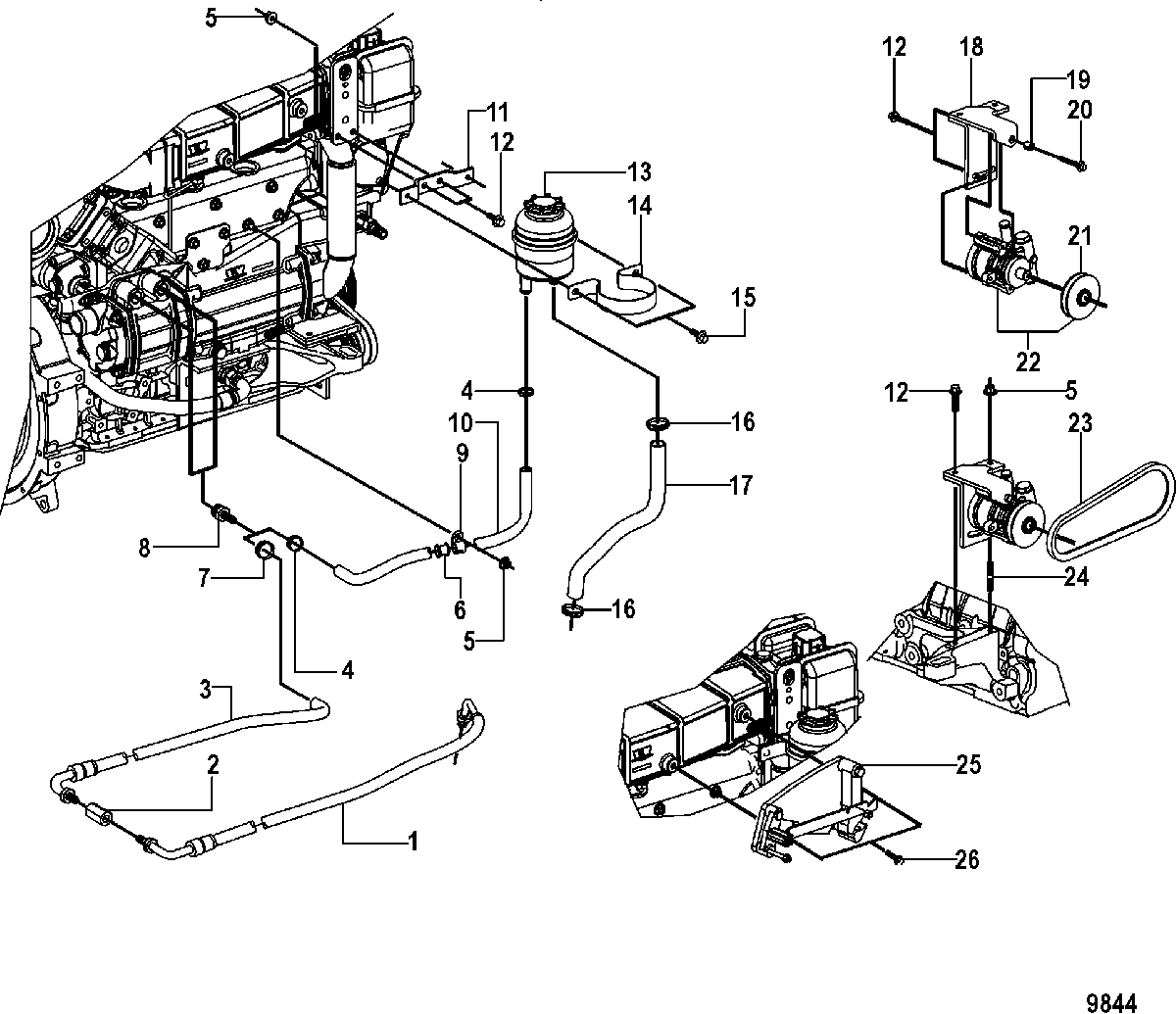

Power Steering and Shift Bracket для Mercruiser - CMD 2.8 EI 170 88005200 THRU 88005518
-
№АртикулНазвание
-
132-883970 HOSE
(Without Quick Connnect)HOSE
(Without Quick Connnect) -
132-866690 HOSE, Pressure
(With Quick Connect)HOSE, Pressure
(With Quick Connect) -
222-806231001 COUPLERCOUPLER
-
332-883969 HOSE
(Without Quick Connect)HOSE
(Without Quick Connect) -
332-865390068 HOSE, Return
(With Quick Connect)HOSE, Return
(With Quick Connect) -
454-8M0129901 CLAMPCLAMP
-
511-854037 NUT, (M8)NUT, (M8)
-
625-854052 SLEEVESLEEVE
-
754-8M0129902 CLAMPCLAMP
-
8896332211 ADAPTORADAPTOR
-
954-811467 CLIPCLIP
-
1032-883968 HOSE, Reservior to CoolerHOSE, Reservior to Cooler
-
11896332209 BRACKETBRACKET
-
1210-898101555 SCREWSCREW
-
13865264T TANK, Power Steering Oil ReservoirTANK, Power Steering Oil Reservoir
-
148553871 SUPPORT, Oil TankSUPPORT, Oil Tank
-
1510-898101554 SCREWSCREW
-
1654-854189 CLAMPCLAMP
-
1732-816689260 HOSE, Power Steering Pump to Reservoir
(Cut to Length)HOSE, Power Steering Pump to Reservoir
(Cut to Length) -
18896332210 BRACKETBRACKET
-
1923-12009 BUSHING, (.31 x .45 x .50)BUSHING, (.31 x .45 x .50)
-
2010-898101556 SCREWSCREW
-
21801763349 PULLEYPULLEY
-
2218825A10 PUMP ASSEMBLYPUMP ASSEMBLY
-
2357-816177Q V BELTV BELT
-
2416-896332213 STUDSTUD
-
2599237A27 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
2610-898101554 SCREWSCREW
