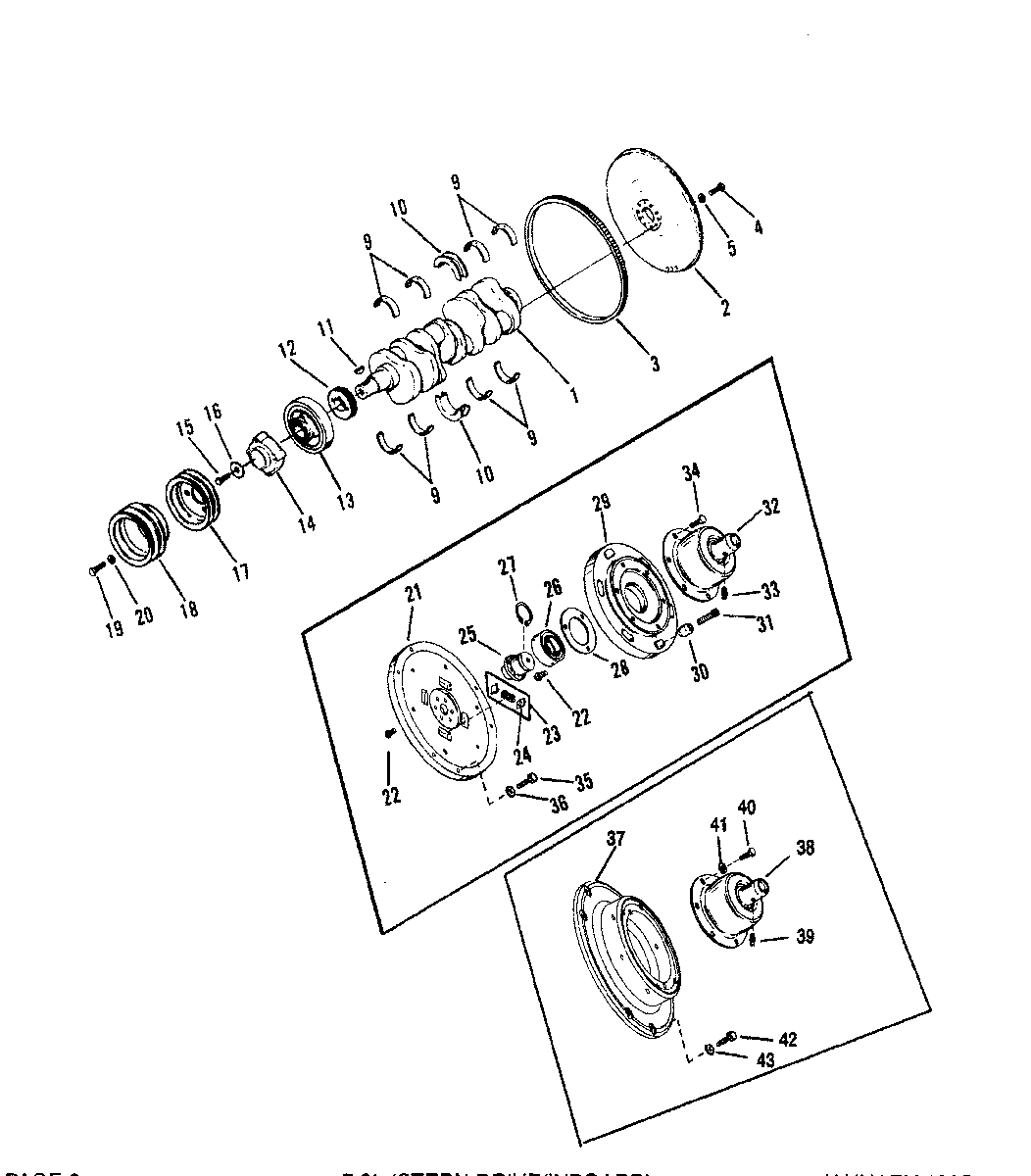

CRANKSHAFT, FLYWHEEL AND ENGINE COUPLING (STERN DRIVE) для Mercruiser - 7.3L (BRAVO & MIE) DIESEL NAV 444 V-8 1994-1996 0F060000 AND UP

  • №
    Артикул
    Название
  • 1
    429-808161 CRANKSHAFT
    INCLUDES ALL STANDARD BEARINGS
    CRANKSHAFT
    INCLUDES ALL STANDARD BEARINGS
  • 2
    222-805822 FLYWHEEL
    FLYWHEEL
  • 3
    43-808099 RING GEAR
    RING GEAR
  • 4
    10-805766 SCREW
    SCREW
  • 5
    12-34931 WASHER
    WASHER
  • 9
    23-808153 BEARING SET (STANDARD)
    BEARING SET (STANDARD)
  • 9
    23-808154 BEARING SET (.010 U.S.)
    BEARING SET (.010 U.S.)
  • 9
    23-808155 BEARING SET (.020 U.S.)
    BEARING SET (.020 U.S.)
  • 9
    23-808156 BEARING SET (.030 U.S.)
    BEARING SET (.030 U.S.)
  • 10
    23-808157 BEARING SET-CENTER (STANDARD)
    BEARING SET-CENTER (STANDARD)
  • 10
    23-808158 BEARING SET-CENTER (.010 U.S.)
    BEARING SET-CENTER (.010 U.S.)
  • 10
    23-808159 BEARING SET-CENTER (.020 U.S.)
    BEARING SET-CENTER (.020 U.S.)
  • 10
    23-808160 BEARING SET-CENTER (.030 U.S.)
    BEARING SET-CENTER (.030 U.S.)
  • 11
    28-808109 KEY
    KEY
  • 12
    43-808167 CRANKSHAFT GEAR
    CRANKSHAFT GEAR
  • 13
    808281 DAMPER
    DAMPER
  • 14
    23-805832F2 SPACER
    SPACER
  • 15
    10-808092 SCREW
    SCREW
  • 16
    12-808113 WASHER
    WASHER
  • 17
    805800 PULLEY
    PULLEY
  • 18
    805801 PULLEY
    PULLEY
  • 19
    10-805761 SCREW
    SCREW
  • 20
    12-34931 WASHER
    WASHER
  • -
    806800A4 ENGINE COUPLER ASSEMBLY
    2 STAGE COUPLER
    ENGINE COUPLER ASSEMBLY
    2 STAGE COUPLER
  • 21
    806245T COUPLER PLATE
    2 STAGE COUPLER
    COUPLER PLATE
    2 STAGE COUPLER
  • 22
    10-806383 SCREW
    2 STAGE COUPLER
    SCREW
    2 STAGE COUPLER
  • 23
    24-806395A1 SPRING
    2 STAGE COUPLER
    SPRING
    2 STAGE COUPLER
  • 23
    24-806270A1 SPRING
    2 STAGE COUPLER
    SPRING
    2 STAGE COUPLER
  • 24
    806271 SPRING RETAINER
    2 STAGE COUPLER
    SPRING RETAINER
    2 STAGE COUPLER
  • 25
    806246A1 BEARING SUPPORT
    2 STAGE COUPLER
    BEARING SUPPORT
    2 STAGE COUPLER
  • 26
    30-818942T BALL BEARING
    2 STAGE COUPLER
    BALL BEARING
    2 STAGE COUPLER
  • 27
    53-818944 RETAINING RING
    2 STAGE COUPLER
    RETAINING RING
    2 STAGE COUPLER
  • 28
    806531 RETAINER PLATE
    2 STAGE COUPLER
    RETAINER PLATE
    2 STAGE COUPLER
  • 29
    806268T COUPLER PLATE
    2 STAGE COUPLER
    COUPLER PLATE
    2 STAGE COUPLER
  • 30
    821625 SNUBBER
    2 STAGE COUPLER
    SNUBBER
    2 STAGE COUPLER
  • 31
    10-806396 SCREW
    2 STAGE COUPLER
    SCREW
    2 STAGE COUPLER
  • 32
    805684A2 COUPLER ASSEMBLY
    2 STAGE COUPLER
    COUPLER ASSEMBLY
    2 STAGE COUPLER
  • 33
    22-74036 GREASE FITTING
    2 STAGE COUPLER
    GREASE FITTING
    2 STAGE COUPLER
  • 34
    10-47461 SCREW
    2 STAGE COUPLER
    SCREW
    2 STAGE COUPLER
  • 35
    10-73657 SCREW
    2 STAGE COUPLER
    SCREW
    2 STAGE COUPLER
  • 36
    12-12038 WASHER
    2 STAGE COUPLER
    WASHER
    2 STAGE COUPLER
  • 37
    D806800A4 ENGINE COUPLER ASSEMBLY
    SOLID COUPLER
    ENGINE COUPLER ASSEMBLY
    SOLID COUPLER
  • 38
    805684A2 COUPLER ASSEMBLY
    SOLID COUPLER
    COUPLER ASSEMBLY
    SOLID COUPLER
  • 39
    22-74036 GREASE FITTING
    SOLID COUPLER
    GREASE FITTING
    SOLID COUPLER
  • 40
    10-47461 SCREW
    SOLID COUPLER
    SCREW
    SOLID COUPLER
  • 41
    12-74758 WASHER
    SOLID COUPLER
    WASHER
    SOLID COUPLER
  • 42
    10-73657 SCREW
    SOLID COUPLER
    SCREW
    SOLID COUPLER
  • 43
    12-12038 WASHER
    SOLID COUPLER
    WASHER
    SOLID COUPLER
