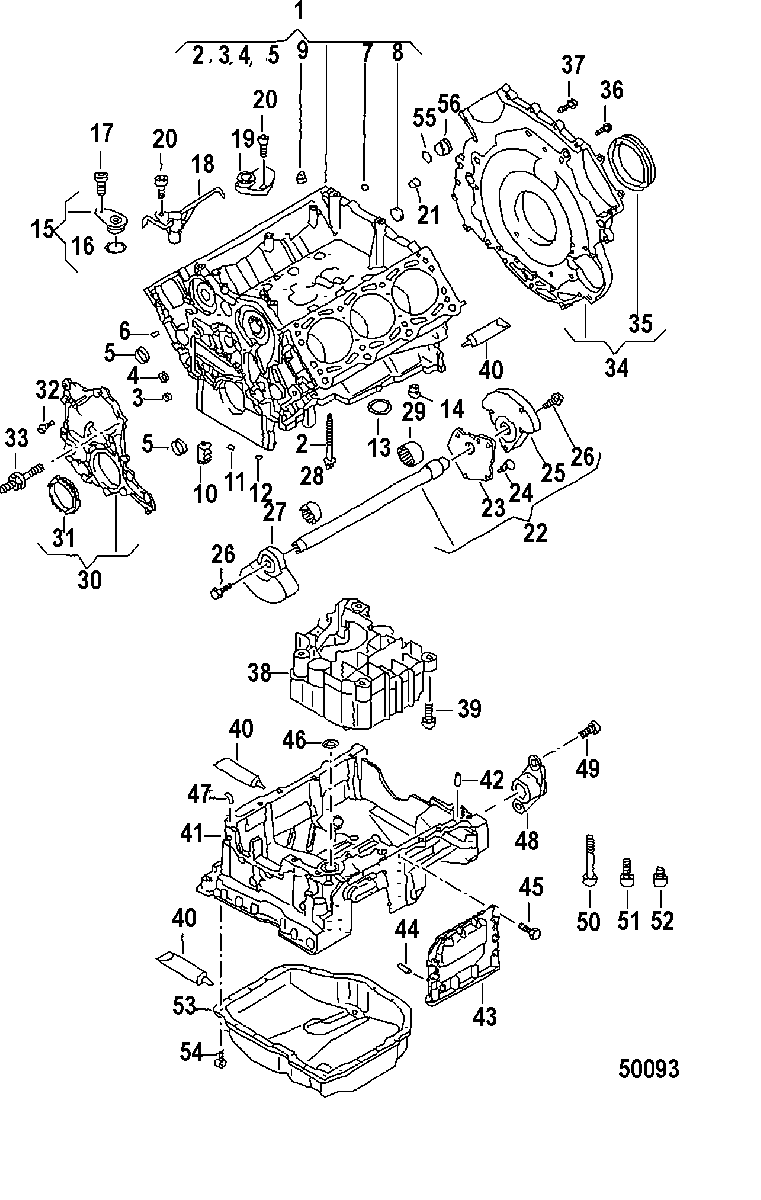

CYLINDER BLOCK, w/ Balance Shaft and Oil Sump для Mercruiser - 3.0L TDI 260 SD ALL & Up

№

Артикул

Название
1

86-8M0066527 CRANKCASE

CRANKCASE
2

10-8M0066528 SCREW , M11x112

SCREW , M11x112
3

8M0089364 PLUG

PLUG
4

19-8M0068105 PLUG, 18

PLUG, 18
5

19-8M0068107 PLUG, 28

PLUG, 28
6

8M0068370 PIN, 6x16

PIN, 6x16
7

19-8M0068557 PLUG, 8

PLUG, 8
8

19-8M0058178 PLUG

PLUG
9

NSS NOT SOLD SEPARATE, Plug

NOT SOLD SEPARATE, Plug
10

27-8M0066411 GASKET

GASKET
11

26-8M0068415 SEAL , 7x2

SEAL , 7x2
12

26-8M0068418 SEAL , 11x2.5

SEAL , 11x2.5
13

25-8M0068141 O-RING, 18x22

O-RING, 18x22
14

22-8M0068169 PLUG , M18x1.50

PLUG , M18x1.50
15

8M0066648 COVER PLATE

COVER PLATE
16

26-8M0068523 SEAL , 19.6x3

SEAL , 19.6x3
17

10-8M0068239 SCREW, M6x10

SCREW, M6x10
18

8M0066535 OIL SPRAY JET

OIL SPRAY JET
19

21-8M0066568 CHECK VALVE

CHECK VALVE
20

10-8M0068548 SCREW , M6x6x12

SCREW , M6x6x12
21

8M0066410 SLEEVE

SLEEVE
22

8M0066543 BALANCE SHAFT

BALANCE SHAFT
23

8M0066555 CAP, Plate

CAP, Plate
24

8M0089370 SCREW, M6x25

SCREW, M6x25
25

8M0066545 WEIGHT BALANCER

WEIGHT BALANCER
26

10-8M0068501 SCREW , M10x20

SCREW , M10x20
27

8M0066546 WEIGHT BALANCER

WEIGHT BALANCER
28

31-8M0066569 BEARING, NEEDLE, 25mm

BEARING, NEEDLE, 25mm
29

31-8M0066570 BEARING, NEEDLE, 22mm

BEARING, NEEDLE, 22mm
30

8M0067258 FLANGE, Front

FLANGE, Front
31

26-8M0067474 SEAL, Oil

SEAL, Oil
32

10-8M0068223 SCREW , M6x20

SCREW , M6x20
33

10-8M0068522 SCREW , M6x22/M6x12

SCREW , M6x22/M6x12
34

8M0066537 FLANGE, Rear

FLANGE, Rear
35

26-8M0067475 SEAL, Oil

SEAL, Oil
36

10-8M0068234 SCREW , M6x30

SCREW , M6x30
37

10-8M0068255 SCREW , M8x32

SCREW , M8x32
38

8M0088011 BAFFLE, OIL PAN

BAFFLE, OIL PAN
39

10-8M0068310 SCREW , M6x25

SCREW , M6x25
40

92-8M0099608 SEALANT, 80 ml

SEALANT, 80 ml
41

8M0067259 PAN

PAN
42

17-8M0066404 PIN, SPRING, 6.2x22

PIN, SPRING, 6.2x22
43

8M0067261 COVER PLATE

COVER PLATE
44

8M0068370 PIN, 6x16

PIN, 6x16
45

10-8M0068223 SCREW , M6x20

SCREW , M6x20
46

27-8M0066563 SEAL

SEAL
47

27-8M0066564 SEAL

SEAL
48

8M0066617 CARRIER PLATE

CARRIER PLATE
49

10-8M0068486 SCREW

SCREW
50

10-8M0068223 SCREW , M6x20

SCREW , M6x20
51

8M0068497 SCREW , M7x20

SCREW , M7x20
52

10-8M0068527 SCREW , M7x105x39

SCREW , M7x105x39
53

8M0100291 PAN

PAN
54

10-8M0068252 SCREW , M6x32

SCREW , M6x32
55

26-8M0066277 SEAL , 15x2.5

SEAL , 15x2.5
56

22-8M0066538 PLUG

PLUG
-

8M0067473 SENSOR

SENSOR
-

10-8M0068245 SCREW , M6x18

SCREW , M6x18
