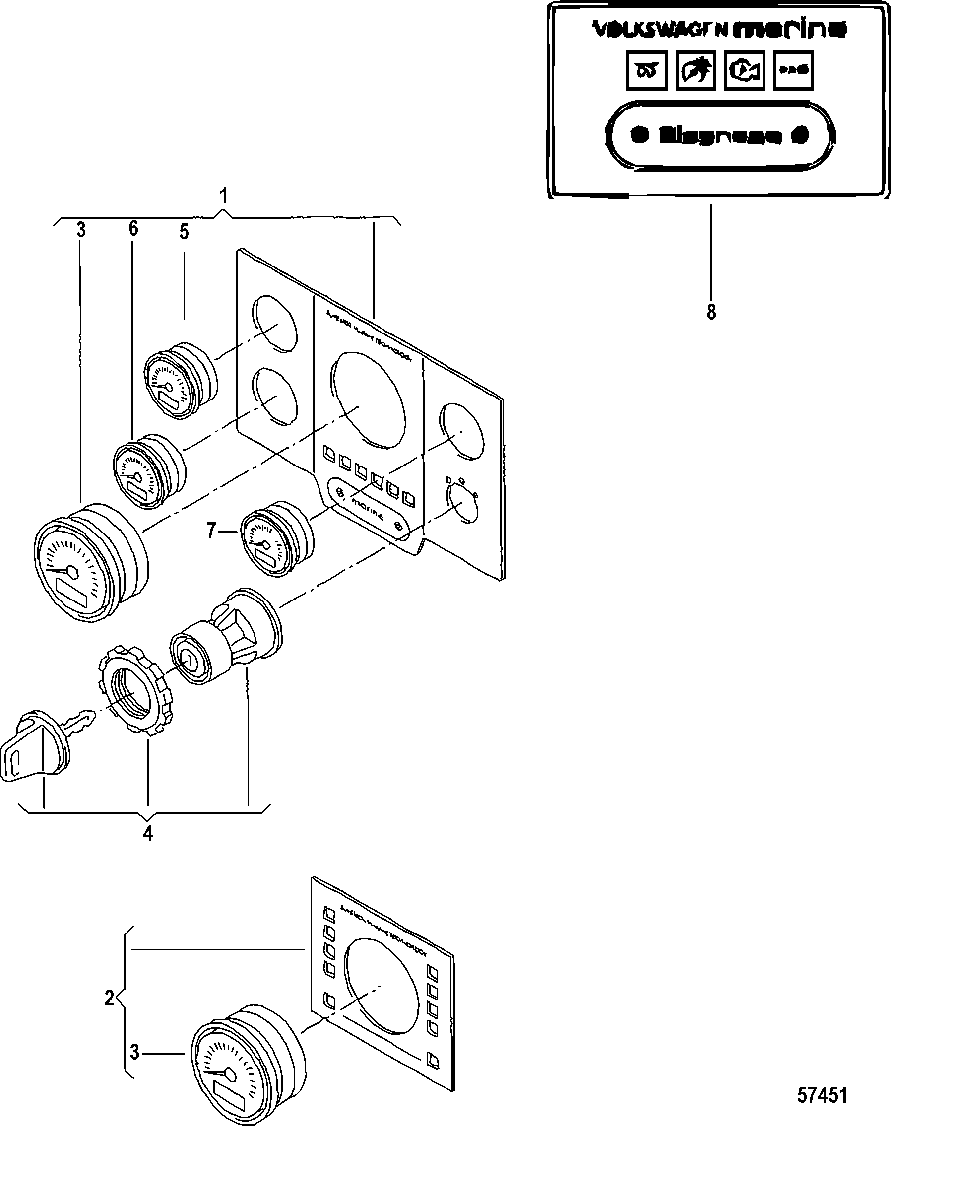

INSTRUMENT PANEL, Lamps для Mercruiser - 3.0L TDI 230 V6 CEZ000201 & Up

  • №
    Артикул
    Название
  • 1
    8M0067116 RPM GAUGE
    SN# October 30, 2006 & Below
    RPM GAUGE
    SN# October 30, 2006 & Below
  • 2
    8M0067117 RPM GAUGE
    SN# August 21, 2006 & Below
    RPM GAUGE
    SN# August 21, 2006 & Below
  • 2
    8M0067119 RPM GAUGE
    SN# August 21, 2006 & Up
    RPM GAUGE
    SN# August 21, 2006 & Up
  • 3
    8M0067375 TACHOMETER
    TACHOMETER
  • 4
    87-8M0067131 SWITCH , Ignition Starter
    SWITCH , Ignition Starter
  • 5
    79-8M0099537 TEMPERATURE GAUGE
    TEMPERATURE GAUGE
  • 6
    8M0099536 OIL PRESSURE GAUGE
    OIL PRESSURE GAUGE
  • 7
    79-8M0099538 VOLTAGE GAUGE
    VOLTAGE GAUGE
  • 8
    8M0067174 OPERATING UNIT
    OPERATING UNIT
  • -
    84-8M0067189 WIRING HARNESS, Voltmeter
    WIRING HARNESS, Voltmeter
  • -
    84-8M0067190 WIRING HARNESS, Oil Pressure
    WIRING HARNESS, Oil Pressure
  • -
    84-8M0067191 WIRING HARNESS, Temperature
    WIRING HARNESS, Temperature
  • -
    84-8M0067192 WIRING HARNESS, RPM
    WIRING HARNESS, RPM
  • -
    8M0067918 WARNING BULB, RED, 12V
    WARNING BULB, RED, 12V
  • -
    79-8M0099535 VOLTAGE BOOSTER
    VOLTAGE BOOSTER
