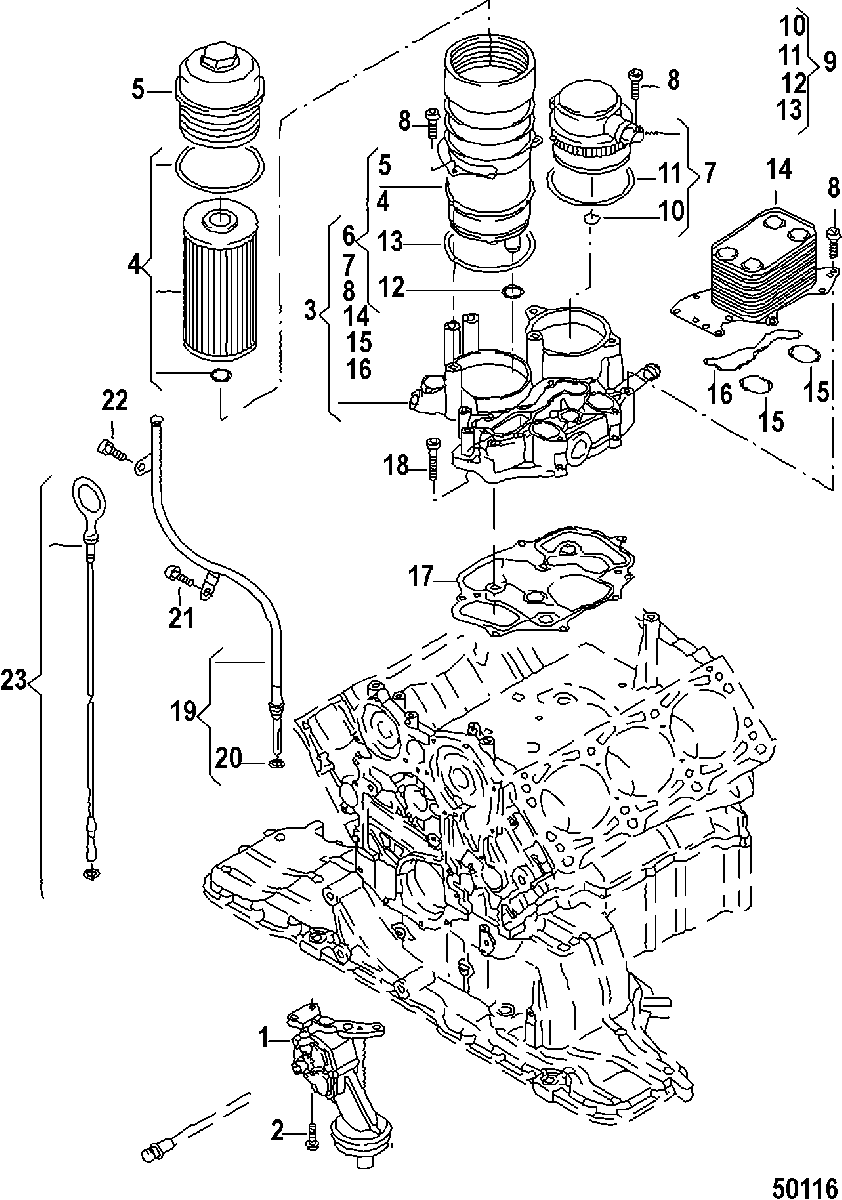

OIL PUMP AND COMPONENTS для Mercruiser - 3.0L TDI 100 V6 CEZ000201 & Up

  • №
    Артикул
    Название
  • 1
    8M0066632 OIL PUMP
    OIL PUMP
  • 2
    10-8M0068356 SCREW , M8x30
    SCREW , M8x30
  • 3
    8M0066636 BRACKET, Filter Assembly
    SN# Start THRU February 13, 2008
    BRACKET, Filter Assembly
    SN# Start THRU February 13, 2008
  • 3
    8M0066634 HEAD
    SN# February 14, 2008 THRU Current
    HEAD
    SN# February 14, 2008 THRU Current
  • 4
    35-8M0066482 FILTER ELEMENT, Oil
    SN# Start THRU February 13, 2008
    FILTER ELEMENT, Oil
    SN# Start THRU February 13, 2008
  • 4
    35-8M0066483 FILTER ELEMENT, Oil
    SN# February 14, 2008 THRU Current
    FILTER ELEMENT, Oil
    SN# February 14, 2008 THRU Current
  • 5
    22-8M0066477 PLUG
    February 13, 2008 SN# Start THRU February 13, 2008
    PLUG
    February 13, 2008 SN# Start THRU February 13, 2008
  • 5
    22-8M0066478 PLUG
    SN# February 14, 2008 THRU Current
    PLUG
    SN# February 14, 2008 THRU Current
  • 6
    8M0066475 CONTAINER ASSEMBLY
    SN# Start THRU February 13, 2008
    CONTAINER ASSEMBLY
    SN# Start THRU February 13, 2008
  • 6
    8M0066475 RESERVOIR ASSEMBLY
    SN# February 14, 2008 THRU Current
    RESERVOIR ASSEMBLY
    SN# February 14, 2008 THRU Current
  • 7
    8M0066432 OIL SEPARATOR
    OIL SEPARATOR
  • 8
    10-8M0068223 SCREW , M6x20
    SCREW , M6x20
  • 9
    25-8M0066518 SEALING KIT
    SEALING KIT
  • 10
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 11
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 12
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 13
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 14
    8M0066641 COOLER
    COOLER
  • 15
    25-8M0066481 O-RING
    O-RING
  • 16
    26-8M0066638 SEAL
    SEAL
  • 17
    27-8M0066637 GASKET
    GASKET
  • 18
    10-8M0068358 SCREW , M6x56
    SCREW , M6x56
  • 19
    32-8M0066640 TUBE, OIL GAUGE
    TUBE, OIL GAUGE
  • 20
    25-8M0066271 O-RING, 12x2
    O-RING, 12x2
  • 21
    10-8M0068239 SCREW, M6x10
    SCREW, M6x10
  • 22
    10-8M0068298 SCREW , M6x12
    SCREW , M6x12
  • 23
    8M0066639 DIPSTICK
    DIPSTICK
  • 24
    25-8M0068491 O-RING, 5x1.9
    O-RING, 5x1.9
