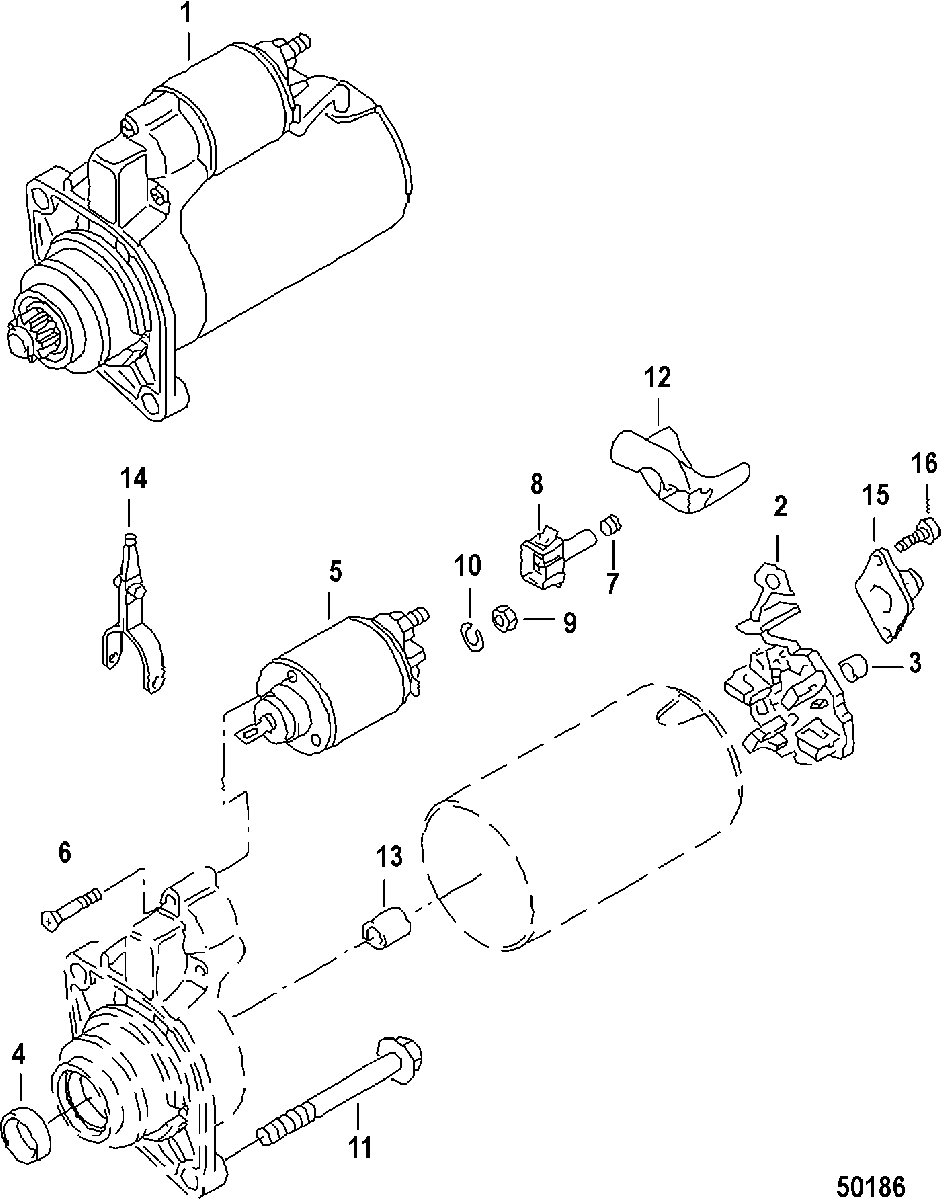

STARTER COMPONENTS для Mercruiser - 2.5L TDI 100 I5 BCU001803 & Up

  • №
    Артикул
    Название
  • 1
    50-8M0067224 STARTER, BOSCH 19 KW
    STARTER, BOSCH 19 KW
  • 1
    50-8M0067214 STARTER, Bosch 18 KW
    STARTER, Bosch 18 KW
  • 1
    50-8M0067215 STARTER, 20 KW
    STARTER, 20 KW
  • 1
    50-8M0066732 STARTER, Bosch 20 KW
    STARTER, Bosch 20 KW
  • 2
    8M0066735 PLATE, For Starter Groups 2,3
    PLATE, For Starter Groups 2,3
  • 3
    23-8M0066287 BUSHING, For Starter Group 1
    BUSHING, For Starter Group 1
  • 4
    23-8M0066259 BUSHING, For Starter Group 1
    BUSHING, For Starter Group 1
  • 4
    23-8M0066736 BUSHING, For Starter Groups 2,3
    BUSHING, For Starter Groups 2,3
  • 5
    89-8M0067226 SOLENOID, For Starter Group 1
    SOLENOID, For Starter Group 1
  • 5
    89-8M0067217 SOLENOID, For Starter Groups 2,3
    SOLENOID, For Starter Groups 2,3
  • 5
    89-8M0067464 SOLENOID, For Starter Group 4
    SOLENOID, For Starter Group 4
  • 6
    10-8M0066288 SCREW , M5x33
    SCREW , M5x33
  • 7
    26-8M0068005 SEAL WIRE, For Wire Cross Section 4.0
    SEAL WIRE, For Wire Cross Section 4.0
  • 8
    86-8M0068008 CONNECTOR, 1 Pin
    CONNECTOR, 1 Pin
  • 9
    11-8M0068090 NUT , M8
    NUT , M8
  • 10
    13-8M0068111 SPRING WASHER
    SPRING WASHER
  • 11
    10-8M0068247 SCREW , M10x65, For Starter Group 4
    SCREW , M10x65, For Starter Group 4
  • 11
    10-8M0068346 SCREW, M12X60, For Starter Group 1
    SCREW, M12X60, For Starter Group 1
  • 11
    10-8M0068433 SCREW , M12x100, For Starter Groups 2,3
    SCREW , M12x100, For Starter Groups 2,3
  • 12
    8M0067542 COVER , For Starter Group 1
    COVER , For Starter Group 1
  • 12
    8M0068041 RETAINER , For Starter Groups 2,3
    RETAINER , For Starter Groups 2,3
  • 13
    23-8M0066258 BUSHING, For Starter Group 1
    BUSHING, For Starter Group 1
  • 13
    23-8M0066257 BUSHING, For Starter Groups 2,3
    BUSHING, For Starter Groups 2,3
  • 14
    8M0066260 LEVER
    LEVER
  • 15
    8M0066196 COVER PLATE
    COVER PLATE
  • 16
    10-8M0068144 SCREW
    SCREW
