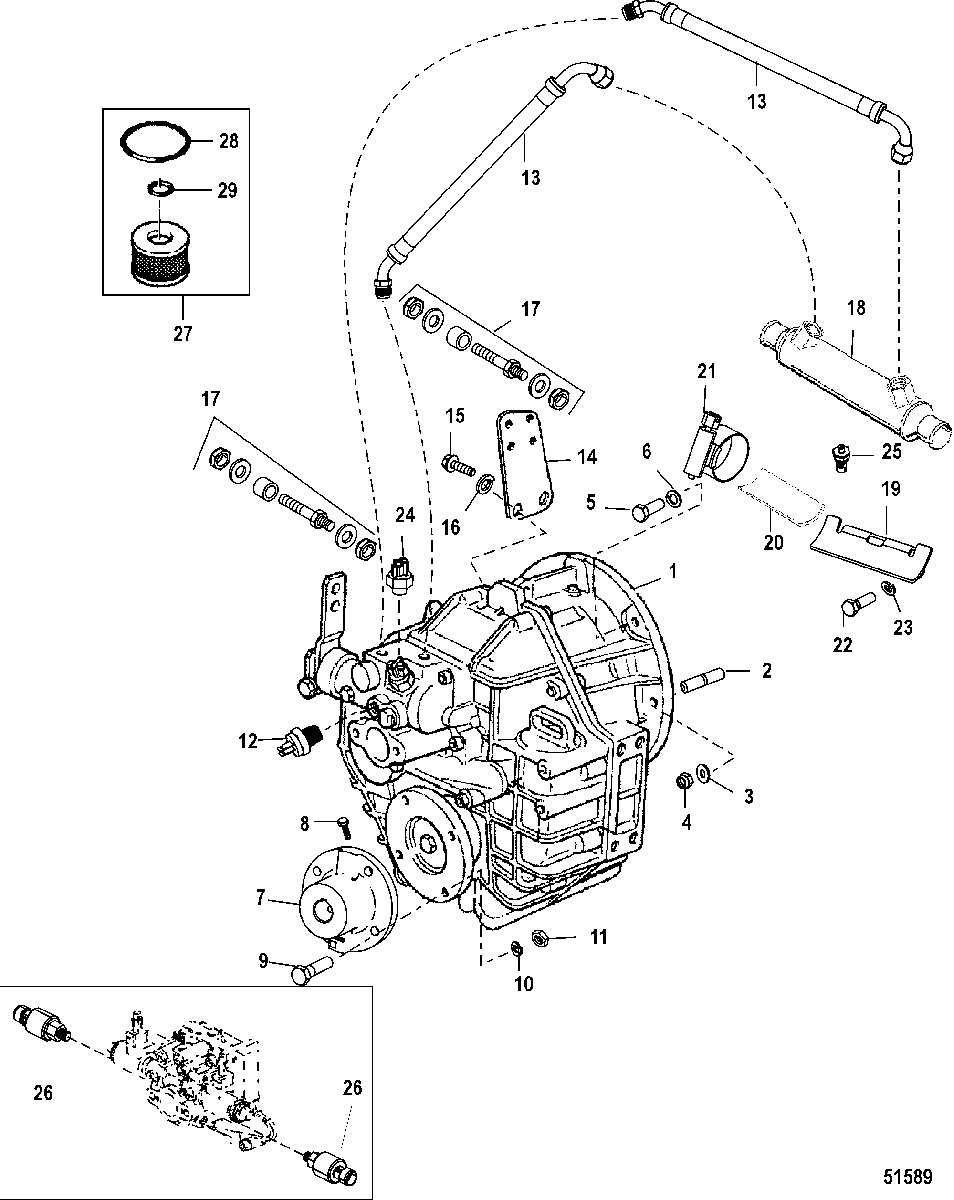

Transmission and Related Parts(Hurth 630/800) для Mercruiser - 8.2L INBOARD (H.O.) EC 1A350802 THRU 2A041664
-
№АртикулНазвание
-
1865703T02 TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T03 TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T04 TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T05 TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
Electric Shift -
1865705T01 TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
Electric ShiftTRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
Electric Shift -
1865704T02 TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
Electric ShiftTRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
Electric Shift -
1865704T03 TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
Electric ShiftTRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
Electric Shift -
1865704T04 TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
Electric ShiftTRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
Electric Shift -
216-805259 STUDSTUD
-
216-8M0034453 STUD, (7/16 x 2.19)
(Hurth 800A Only)STUD, (7/16 x 2.19)
(Hurth 800A Only) -
312-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
312-79552 WASHER, (.453 x .750 x .062) Stainless Steel
(Hurth 800A Only)WASHER, (.453 x .750 x .062) Stainless Steel
(Hurth 800A Only) -
411-82670815 NUT, (.437-20)NUT, (.437-20)
-
411-859116 NUT, (.437-20)
(Hurth 800A Only)NUT, (.437-20)
(Hurth 800A Only) -
510-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
779476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
779476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
779476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
779476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
779476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
810-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
810-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
910-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1013-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1111-22024 NUT, (.437-14)NUT, (.437-14)
-
1287-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1332-8054781 HOSE, (19.50)HOSE, (19.50)
-
14806238 BRACKETBRACKET
-
1510-40001124 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
1613-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1716-97477A3 STUD KITSTUD KIT
-
18863832T01 COOLER, Transmission OilCOOLER, Transmission Oil
-
19805546A2 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
20772233 PADPAD
-
2154-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2210-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
2313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2487-813300 SWITCH, Neutral SafetySWITCH, Neutral Safety
-
258M6000623 SENSORSENSOR
-
26865664 PRESSURE TRANSDUCER, 500 PSI
Digital Throttle and ShiftPRESSURE TRANSDUCER, 500 PSI
Digital Throttle and Shift -
2735-879194241 FILTER KIT, OilFILTER KIT, Oil
-
2825-813407 O-RINGO-RING
-
2925-813406 O-RINGO-RING
