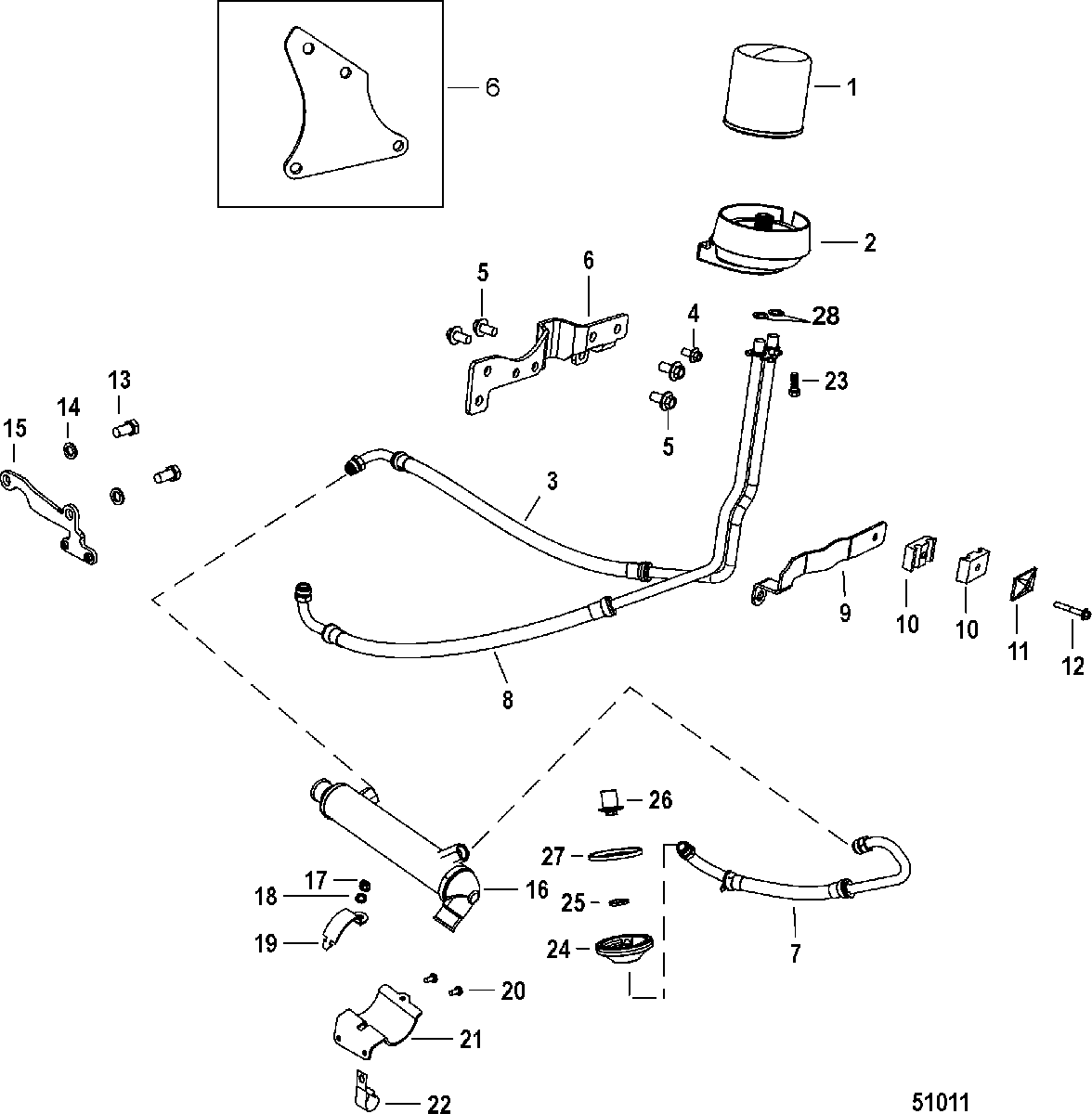

Remote Oil System для Mercruiser - 8.2L INBOARD (BASE) EC 2A041665 & Up
-
№АртикулНазвание
-
135-866340Q03 FILTER, Oil - Quicksilver BrandFILTER, Oil - Quicksilver Brand
-
135-866340K01 FILTER, Oil - Mercury BrandFILTER, Oil - Mercury Brand
-
28M0070128 HOUSING, Remote oilHOUSING, Remote oil
-
332-8M2021626 OIL LINE, Cooler to filter
MCM/MIEOIL LINE, Cooler to filter
MCM/MIE -
332-8M2022420 OIL LINE, Cooler to filter
V-driveOIL LINE, Cooler to filter
V-drive -
410-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
510-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
68M0069716 BRACKET, Remote oil
MCM/MIEBRACKET, Remote oil
MCM/MIE -
68M2021921 BRACKET, Remote oil
V-driveBRACKET, Remote oil
V-drive -
732-8M2021679 OIL LINE, Block to coolerOIL LINE, Block to cooler
-
832-8M2021625 OIL LINE, Filter to block
MCM/MIEOIL LINE, Filter to block
MCM/MIE -
832-8M2022419 OIL LINE, Filter to block
V-driveOIL LINE, Filter to block
V-drive -
98M0070911 BRACKET, Oil lineBRACKET, Oil line
-
108M2009216 CLAMPCLAMP
-
118M2009217 PLATEPLATE
-
1210-82130040 SCREW, (M6 x 40)
MCMSCREW, (M6 x 40)
MCM -
1210-82130045 SCREW, (M6 x 45)
MIESCREW, (M6 x 45)
MIE -
1310-806677 BOLTBOLT
-
1412-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
158M2018755 BRACKETBRACKET
-
168M0070248 COOLER, OilCOOLER, Oil
-
1711-401376 NUT, (M6)NUT, (M6)
-
1812-35044 WASHER, (.281 x .625 x .065) Stainless Steel
MCMWASHER, (.281 x .625 x .065) Stainless Steel
MCM -
1812-828442 WASHER
MIEWASHER
MIE -
19807445T CLAMPCLAMP
-
2010-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
21863905T BRACKETBRACKET
-
2254-92850 CLAMPCLAMP
-
2310-4010610 SCREW, (M6 x 10) Stainless SteelSCREW, (M6 x 10) Stainless Steel
-
24862870T ADAPTORADAPTOR
-
2526-42077 SEALSEAL
-
-22-862958A1 FITTING KITFITTING KIT
-
2622-862958 FITTINGFITTING
-
2726-862957 SEALSEAL
-
288M2000565 O-RING, Component of Item 3 and 8O-RING, Component of Item 3 and 8
