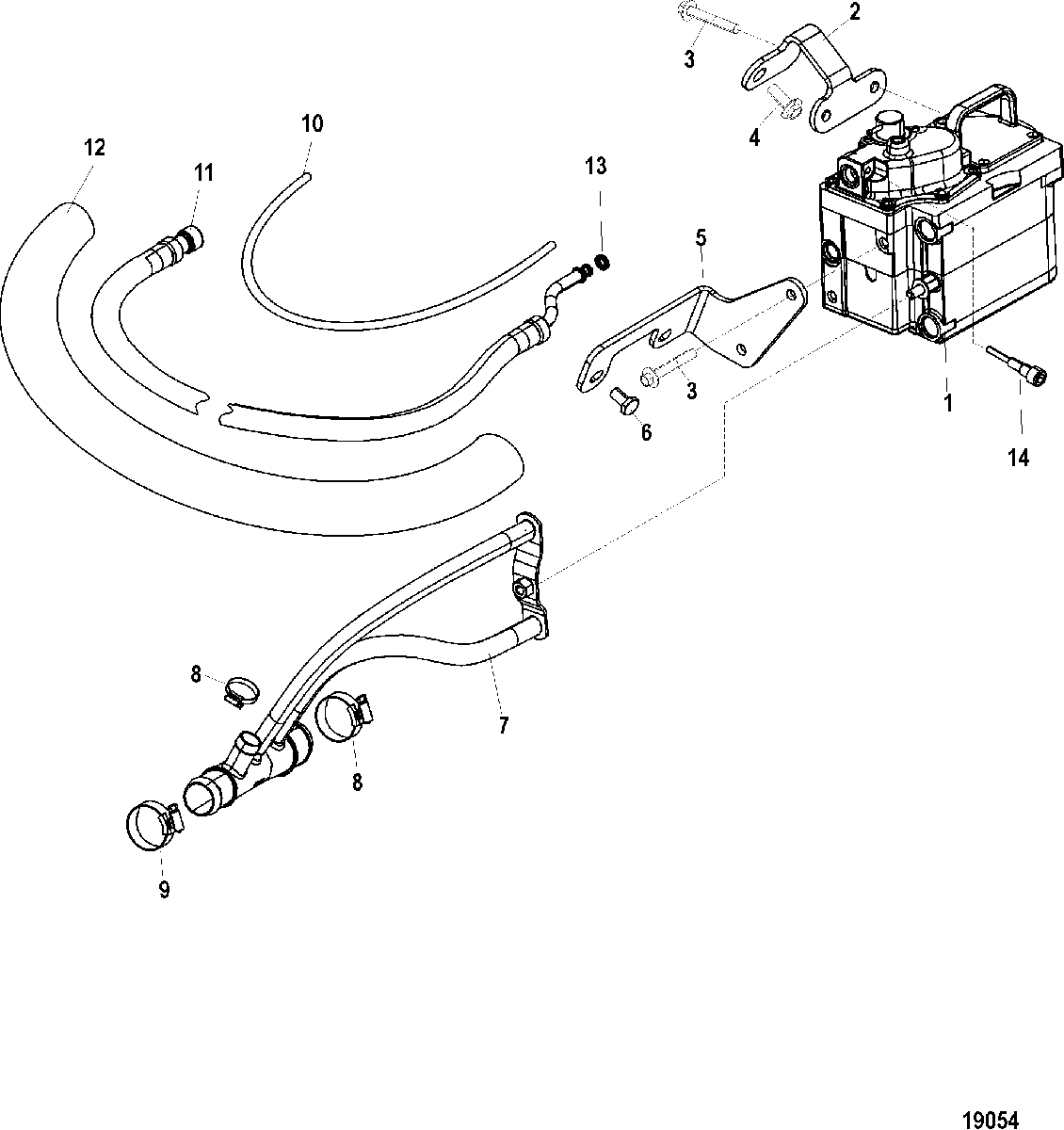

Cool Fuel System, SN 1A380209 & Below для Mercruiser - 8.1L TOWSPORT (Base) 1A380074 & Up

  • №
    Артикул
    Название
  • 1
    864650A05 MODULE KIT, Fuel Pump
    MODULE KIT, Fuel Pump
  • 2
    864597T BRACKET
    BRACKET
  • 3
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 4
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 5
    864468T BRACKET
    BRACKET
  • 6
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 7
    22-865208T01 HOSE ASSEMBLY, 3 Bib Orfice Meter
    (See Bulletin MCM 2009-01)
    HOSE ASSEMBLY, 3 Bib Orfice Meter
    (See Bulletin MCM 2009-01)
  • 8
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 9
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 10
    32-8M0063567 HOSE, (58.00 Inches Bulk)
    HOSE, (58.00 Inches Bulk)
  • 11
    32-899857A01 HOSE ASSEMBLY, Fuel Module to Fuel Rail
    SN# 1A380205 & Below
    HOSE ASSEMBLY, Fuel Module to Fuel Rail
    SN# 1A380205 & Below
  • 11
    32-8M2005176 LINE, Fuel, Fuel Module to Fuel Rail
    SN# 1A380206 & Up
    LINE, Fuel, Fuel Module to Fuel Rail
    SN# 1A380206 & Up
  • 12
    NSS NOT SOLD SEPARATE, Insulator Sleeve
    NOT SOLD SEPARATE, Insulator Sleeve
  • 13
    26-863151 SEAL, Quad Ring
    SEAL, Quad Ring
  • 14
    10-866114 SCREW, (.250-28) Special
    SCREW, (.250-28) Special
