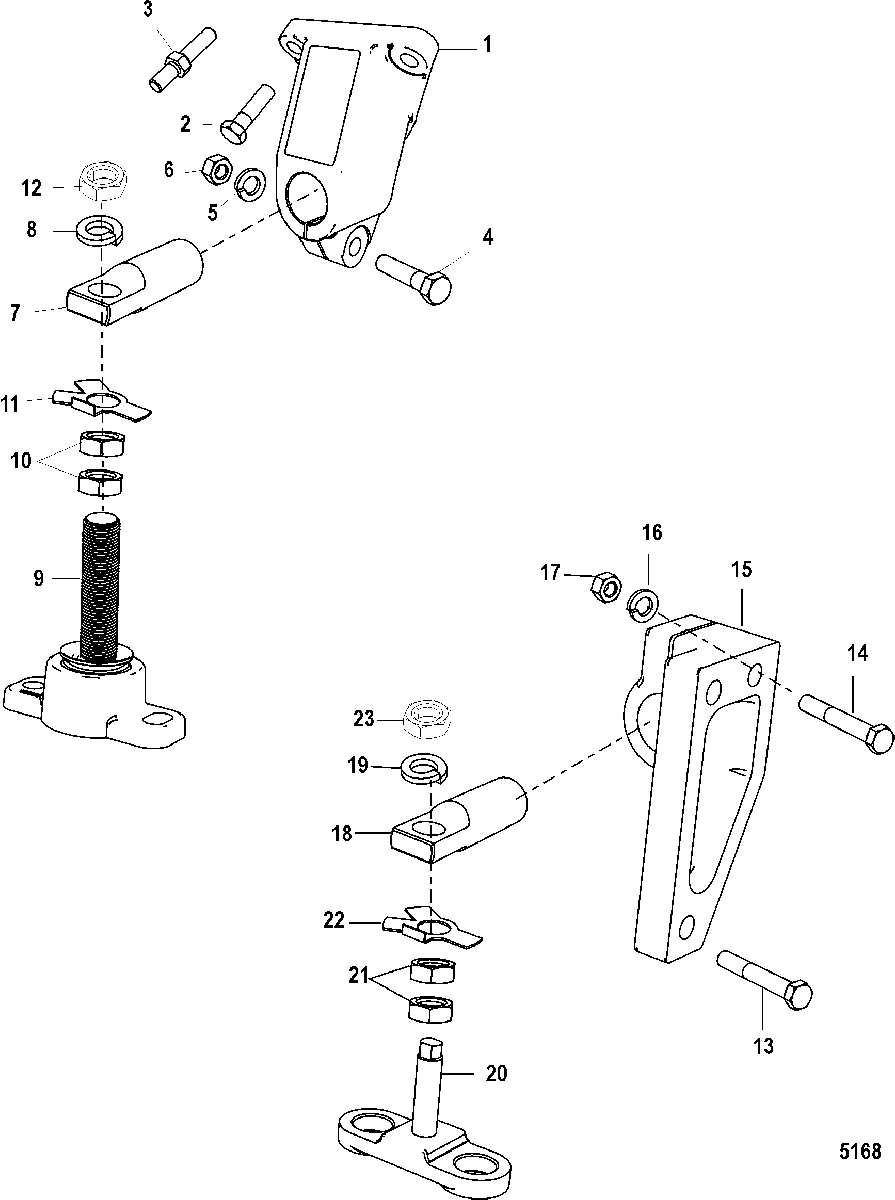

Transmission and Engine Mounting(Borg Warner 5000) для Mercruiser - 8.1L INBOARD (V-Drive) 1G300000 & Up
-
№АртикулНазвание
-
166418T BRACKET, FrontBRACKET, Front
-
210-40001197 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
316-861580 STUD
PortSTUD
Port -
310-40001195 SCREW, (M10 x 30)
StarboardSCREW, (M10 x 30)
Starboard -
410-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
766166A4 TRUNNIONTRUNNION
-
813-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
966284A2 BASE ASSEMBLY
FrontBASE ASSEMBLY
Front -
1011-20739 NUT, (.750-16)NUT, (.750-16)
-
1114-66658 TAB WASHERTAB WASHER
-
1211-20739 NUT, (.750-16)NUT, (.750-16)
-
1310-4009760 SCREW, (M12 x 60)SCREW, (M12 x 60)
-
1410-47724 SCREW, (.437-14 x 3.00)
Down Angle TransmissionSCREW, (.437-14 x 3.00)
Down Angle Transmission -
1410-47724 SCREW, (.437-14 x 3.00)
V-Drive TransmissionSCREW, (.437-14 x 3.00)
V-Drive Transmission -
15807725T BRACKET
Port, Down Angle TransmissionBRACKET
Port, Down Angle Transmission -
15807724T BRACKET
Port, V-Drive TransmissionBRACKET
Port, V-Drive Transmission -
15807724T BRACKET
Starboard, Down Angle TransmissionBRACKET
Starboard, Down Angle Transmission -
15807725T BRACKET
Starboard, V-Drive TransmissionBRACKET
Starboard, V-Drive Transmission -
1613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1711-82670814 NUT, (.437-14)NUT, (.437-14)
-
1866166A4 TRUNNIONTRUNNION
-
1913-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
20816326A2 BASE ASSEMBLY
RearBASE ASSEMBLY
Rear -
2111-816331 NUT, (.750-16)NUT, (.750-16)
-
2214-66658 TAB WASHERTAB WASHER
-
2311-20739 NUT, (.750-16)NUT, (.750-16)
