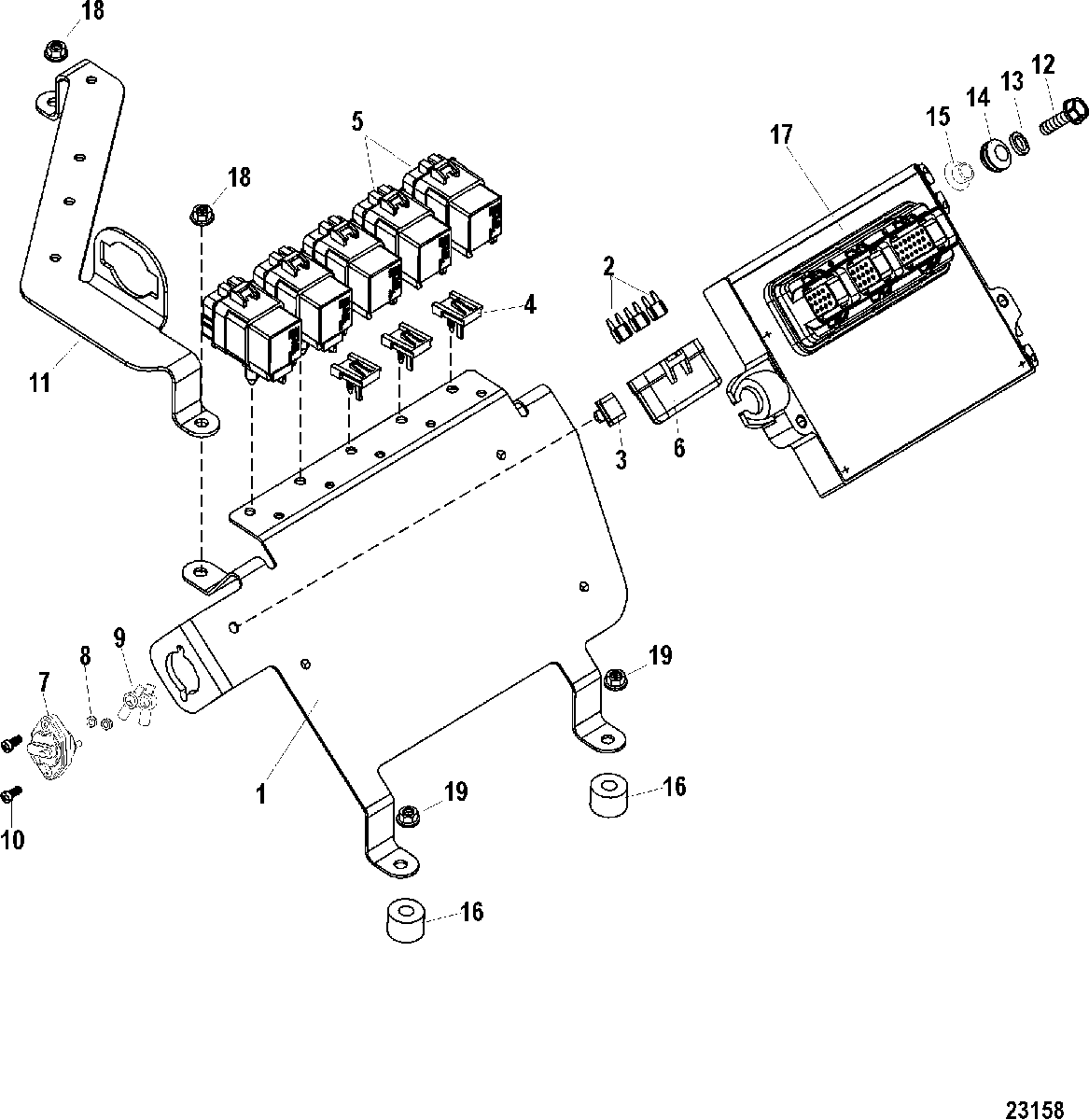

PCM and Bracket для Mercruiser - 8.1L INBOARD (Inline) 1G300000 & Up

  • №
    Артикул
    Название
  • NS
    84-865457T06 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • NS
    84-865769T01 HARNESS ASSEMBLY, Transmission
    HARNESS ASSEMBLY, Transmission
  • 1
    899719T04 BRACKET
    BRACKET
  • 2
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 2
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 3
    86-865205 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 4
    54-804352 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 5
    882751A04 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 6
    858754 COVER, Fuse
    COVER, Fuse
  • 7
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 8
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 10
    10-830861 SCREW, (#8-32 x .625)
    SCREW, (#8-32 x .625)
  • 11
    865639T BRACKET
    BRACKET
  • 12
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 13
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 14
    25-834985 GROMMET
    GROMMET
  • 15
    23-856954 BUSHING, Electrical Plate
    BUSHING, Electrical Plate
  • 16
    23-862995 SPACER
    SPACER
  • 17
    879194T26 PCM, Propulsion Control Module
    PCM, Propulsion Control Module
  • 18
    11-4002030 NUT, (M8)
    NUT, (M8)
  • 19
    11-802751 NUT
    NUT
