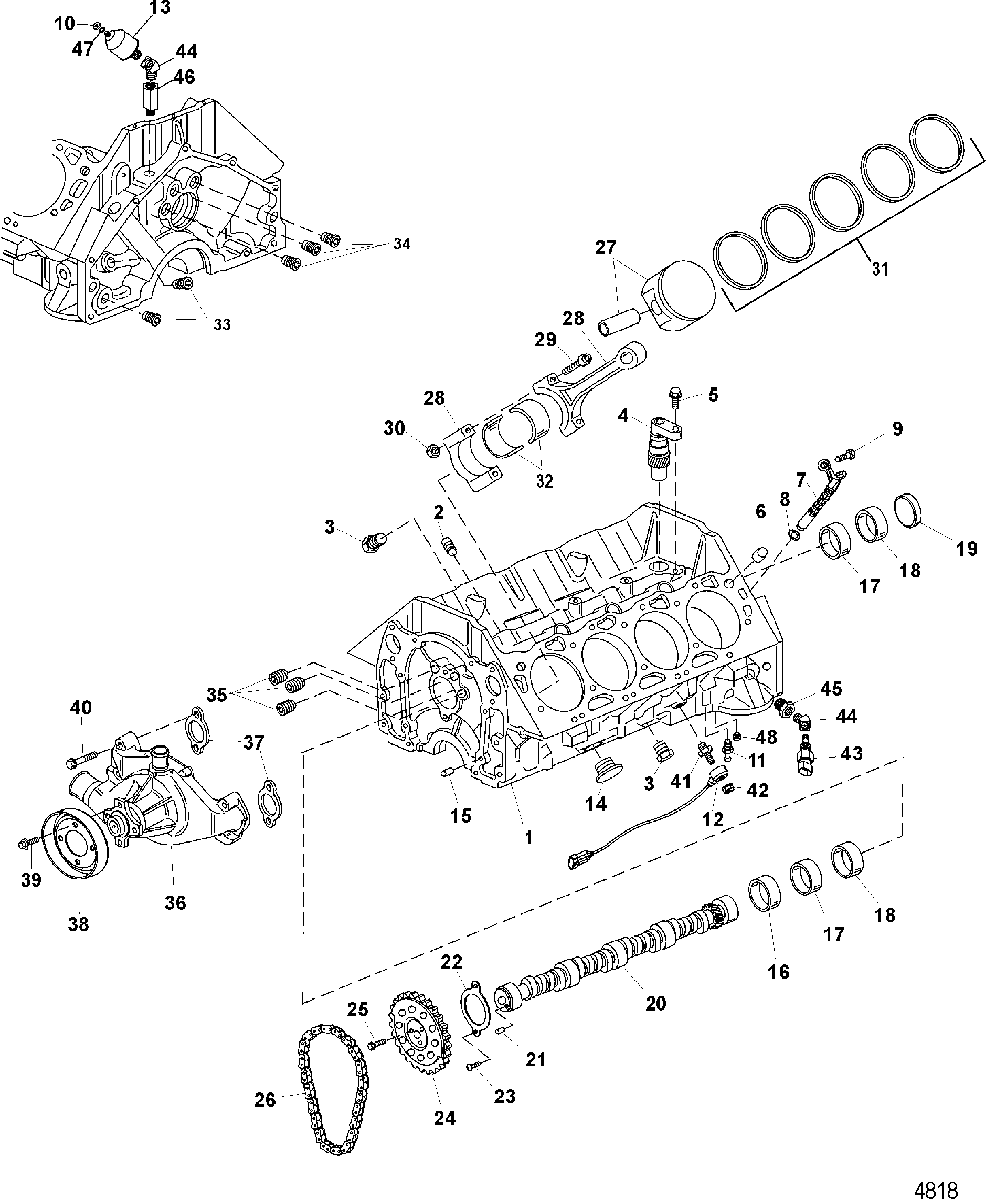

Block, Camshaft and Pistons для Mercruiser - 8.1L INBOARD (H.O.) 0M319191 THRU 0W089999
-
№АртикулНазвание
-
NS8M0086000 LONGBLOCK ASSEMBLY, Base
(Block Codes 4WW and 4WY)LONGBLOCK ASSEMBLY, Base
(Block Codes 4WW and 4WY) -
NS8M0086000 LONGBLOCK ASSEMBLY, Base
(Block Codes 4ZW and 4ZY)LONGBLOCK ASSEMBLY, Base
(Block Codes 4ZW and 4ZY) -
NS8M0086001 LONGBLOCK ASSEMBLY, H.O.
(Block Codes 4WA and 4WF)LONGBLOCK ASSEMBLY, H.O.
(Block Codes 4WA and 4WF) -
NS8M0086001 LONGBLOCK ASSEMBLY, H.O.
(Block Codes 4ZA and 4ZF)LONGBLOCK ASSEMBLY, H.O.
(Block Codes 4ZA and 4ZF) -
1NSS NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly)NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly) -
222-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
322-8M0114498 PLUG, Coolant DrainPLUG, Coolant Drain
-
48M0114791 DRIVE, Oil Pump, Oil PumpDRIVE, Oil Pump, Oil Pump
-
510-881595 SCREW, (M6 x 21), Oil PumpSCREW, (M6 x 21), Oil Pump
-
617-52190 PIN, Dowel, Cylinder Head LocatingPIN, Dowel, Cylinder Head Locating
-
7892617 SENSOR, Crankshaft PositionSENSOR, Crankshaft Position
-
8NSS NOT SOLD SEPARATE, SEAL-Crankshaft Position SensorNOT SOLD SEPARATE, SEAL-Crankshaft Position Sensor
-
910-881595 SCREW, (M6 x 21), Crankshaft Position SensorSCREW, (M6 x 21), Crankshaft Position Sensor
-
1011-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1122-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
-
128M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
138M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
1422-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
1422-36373 PLUG, (.375-18 x .42), Pipe - Oil GalleyPLUG, (.375-18 x .42), Pipe - Oil Galley
-
1422-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
1422-881568 PLUG, Engine CoolantPLUG, Engine Coolant
-
1422-881569 PLUG, (.250-18 x .54), Engine CoolantPLUG, (.250-18 x .54), Engine Coolant
-
1517-843378 PIN, Dowel (1/4 In. Diameter)PIN, Dowel (1/4 In. Diameter)
-
1623-85684 BEARING, Camshaft
(pos 1)BEARING, Camshaft
(pos 1) -
1723-85684 BEARING, Camshaft
(pos 2 / 5)BEARING, Camshaft
(pos 2 / 5) -
1823-85684 BEARING, Camshaft
(pos 3 / 4)BEARING, Camshaft
(pos 3 / 4) -
1919-94140 EXPANSION PLUG, Camshaft Bearing HoleEXPANSION PLUG, Camshaft Bearing Hole
-
20431-8M0133004 CAMSHAFT
(Base)CAMSHAFT
(Base) -
20431-8M0133005 CAMSHAFT
(H.O.)CAMSHAFT
(H.O.) -
2117-843378 PIN, Dowel (1/4 In. Diameter)
Camshaft Sprocket LocationPIN, Dowel (1/4 In. Diameter)
Camshaft Sprocket Location -
22845941 RETAINER, CamshaftRETAINER, Camshaft
-
2310-881588 SCREWSCREW
-
24892640001 SPROCKET, CamshaftSPROCKET, Camshaft
-
2510-881570 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
26881626 CHAIN, Camshaft TimingCHAIN, Camshaft Timing
-
27735-881592002 PISTON ASSEMBLY, Standard (Starboard)
SN# BASE 0W020104 / H.O. 0W020080 & BelowPISTON ASSEMBLY, Standard (Starboard)
SN# BASE 0W020104 / H.O. 0W020080 & Below -
27735-881592002 PISTON ASSEMBLY, Standard/Floating Design (Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, Standard/Floating Design (Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-881592002 PISTON ASSEMBLY, Standard/Floating Design (Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, Standard/Floating Design (Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-883515002 PISTON ASSEMBLY, Standard (Port)
SN# BASE 0W020104 / H.O. 0W020080 & BelowPISTON ASSEMBLY, Standard (Port)
SN# BASE 0W020104 / H.O. 0W020080 & Below -
27735-883515002 PISTON ASSEMBLY, Standard/Floating Design (Port)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, Standard/Floating Design (Port)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-883515002 PISTON ASSEMBLY, Standard/Floating Design (Port)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, Standard/Floating Design (Port)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-881596002 PISTON ASSEMBLY, .030 Oversize (Starboard)
SN# BASE 0W020104 / H.O. 0W020080 & BelowPISTON ASSEMBLY, .030 Oversize (Starboard)
SN# BASE 0W020104 / H.O. 0W020080 & Below -
27735-881596002 PISTON ASSEMBLY, .030/Floating Design (Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, .030/Floating Design (Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-881596002 PISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Starboard)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-881597002 PISTON ASSEMBLY, .030 Oversize (Port)
SN# BASE 0W020104 / H.O. 0W020080 & BelowPISTON ASSEMBLY, .030 Oversize (Port)
SN# BASE 0W020104 / H.O. 0W020080 & Below -
27735-881597002 PISTON ASSEMBLY, .030/Floating Design (Port)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, .030/Floating Design (Port)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
27735-881597002 PISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Port)
SN# BASE 0W020105 / H.O. 0W020081 & UpPISTON ASSEMBLY, .030/Floating Design, Without Connecting Rod(Port)
SN# BASE 0W020105 / H.O. 0W020081 & Up -
28NSS NOT SOLD SEPARATE, Connecting Rod
SN# BASE 0W020104 / H.O. 0W020080 & BelowNOT SOLD SEPARATE, Connecting Rod
SN# BASE 0W020104 / H.O. 0W020080 & Below -
2910-883917 SCREW, Connecting RodSCREW, Connecting Rod
-
3011-883918 NUT, Connecting RodNUT, Connecting Rod
-
3139-881601 RING KIT, Piston(Standard)RING KIT, Piston(Standard)
-
3139-881602 RING KIT, Piston
(.030 Over Size)RING KIT, Piston
(.030 Over Size) -
3223-8832391 BEARING, Connecting RodBEARING, Connecting Rod
-
3322-881567001 PLUG, Oil GalleyPLUG, Oil Galley
-
3422-48341 PLUG, Oil GalleyPLUG, Oil Galley
-
3522-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
3522-36373 PLUG, (.375-18 x .42), Pipe - Oil GalleyPLUG, (.375-18 x .42), Pipe - Oil Galley
-
3522-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
3646-8M0113736 PUMP, CirculatingPUMP, Circulating
-
3727-881603001 GASKET, Circulating PumpGASKET, Circulating Pump
-
38862583 PULLEY, Circulating PumpPULLEY, Circulating Pump
-
3910-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
4010-881576 SCREW, (M10 x 65)SCREW, (M10 x 65)
-
4010-884036 SCREW, (M10 x 95)SCREW, (M10 x 95)
-
4116-862915 STUD, (.250-18/M10 Special), Knock SensorSTUD, (.250-18/M10 Special), Knock Sensor
-
4211-826292 NUT, (M10) Brass/Nickel Plated, Knock SensorNUT, (M10) Brass/Nickel Plated, Knock Sensor
-
43881879T11 SENSOR, (0 - 100 PSI), Oil PressureSENSOR, (0 - 100 PSI), Oil Pressure
-
4422-8M0123050 FITTING, Elbow (45 Degree)FITTING, Elbow (45 Degree)
-
4522-64013 FITTING, (.375 Male To .125 Female)FITTING, (.375 Male To .125 Female)
-
4622-805059 FITTING, Reducer BushingFITTING, Reducer Bushing
-
4713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
4822-38407 PLUG, (.500-14), PipePLUG, (.500-14), Pipe
