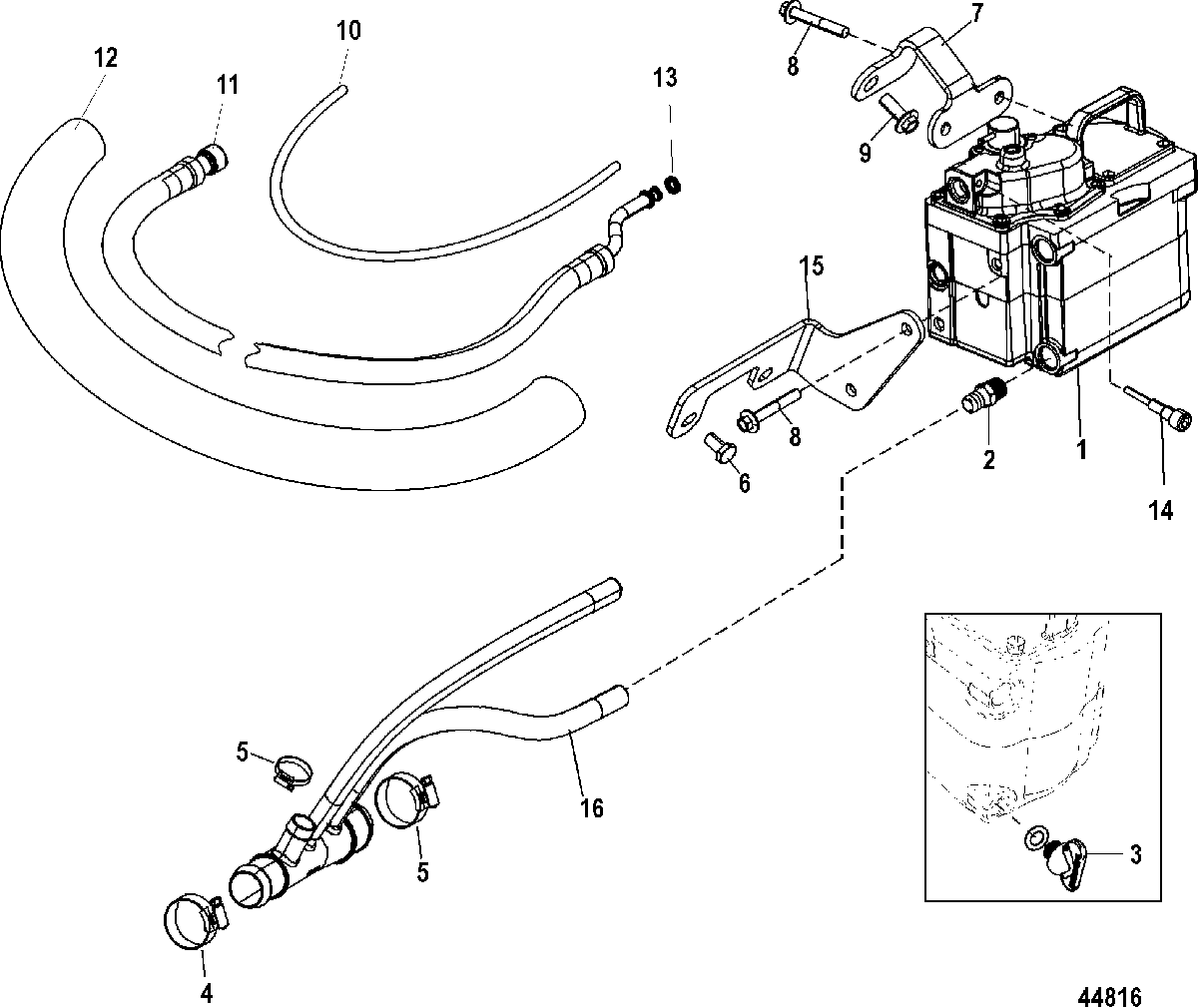

Cool Fuel System, SN 1A380210 & Above для Mercruiser - 8.1L INBOARD (H.O.) EC 0W697154 THRU 1A380251

  • №
    Артикул
    Название
  • 1
    8M0047215 MODULE KIT, Fuel Pump, Complete
    MODULE KIT, Fuel Pump, Complete
  • 1
    8M0047215 MODULE KIT, Fuel Pump, Complete, With Drain Port
    MODULE KIT, Fuel Pump, Complete, With Drain Port
  • 2
    22-8M2010476 FITTING, (3/8-18)
    FITTING, (3/8-18)
  • 3
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only
    PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only
  • 4
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 5
    54-815504206 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 6
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 7
    864597T BRACKET
    BRACKET
  • 8
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 9
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 10
    32-8M0063567 HOSE, (58.00 Inches Bulk)
    HOSE, (58.00 Inches Bulk)
  • 11
    32-8M2005176 LINE, Fuel, Fuel Module to Fuel Rail
    LINE, Fuel, Fuel Module to Fuel Rail
  • 12
    NSS NOT SOLD SEPARATE, INSULATOR SLEEVE
    NOT SOLD SEPARATE, INSULATOR SLEEVE
  • 13
    26-863151 SEAL, Quad Ring
    SEAL, Quad Ring
  • 14
    10-866114 SCREW, (.250-28) Special
    SCREW, (.250-28) Special
  • 15
    864468T BRACKET
    BRACKET
  • 16
    22-865208T02 HOSE ASSEMBLY, 3 Bib Orifice Meter
    HOSE ASSEMBLY, 3 Bib Orifice Meter
