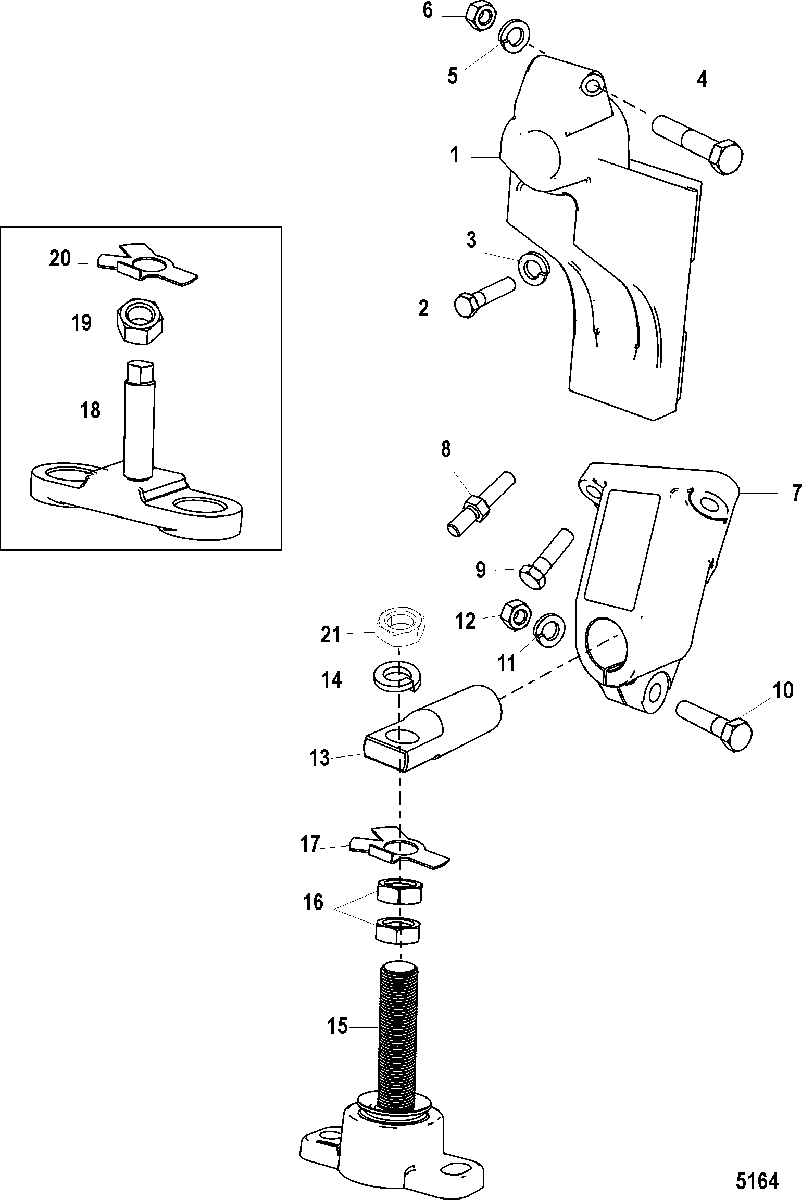

Transmission and Engine Mounting(BORG WARNER 72) для Mercruiser - 8.1L INBOARD (Base) 0M319125 THRU 0W089999
-
№АртикулНазвание
-
166167A2 BRACKETBRACKET
-
152158A20 BRACKET
(REMOTE V-DRIVE)BRACKET
(REMOTE V-DRIVE) -
210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
210-47462 SCREW, (.437-14 x 1.250)
(REMOTE V-DRIVE)SCREW, (.437-14 x 1.250)
(REMOTE V-DRIVE) -
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
410-47724 SCREW, (.437-14 x 3.00)
(REMOTE V-DRIVE)SCREW, (.437-14 x 3.00)
(REMOTE V-DRIVE) -
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
766418T BRACKET, FrontBRACKET, Front
-
816-861580 STUD
PortSTUD
Port -
810-40001195 SCREW, (M10 x 30)
StarboardSCREW, (M10 x 30)
Starboard -
910-40001197 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
1010-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1113-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1211-82670814 NUT, (.437-14)NUT, (.437-14)
-
1366166A4 TRUNNIONTRUNNION
-
1413-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1566284A2 BASE ASSEMBLYBASE ASSEMBLY
-
1611-20739 NUT, (.750-16)NUT, (.750-16)
-
1714-66658 TAB WASHERTAB WASHER
-
18816326A2 BASE ASSEMBLYBASE ASSEMBLY
-
1911-816331 NUT, (.750-16)NUT, (.750-16)
-
2014-66658 TAB WASHERTAB WASHER
-
2111-20739 NUT, (.750-16)NUT, (.750-16)
