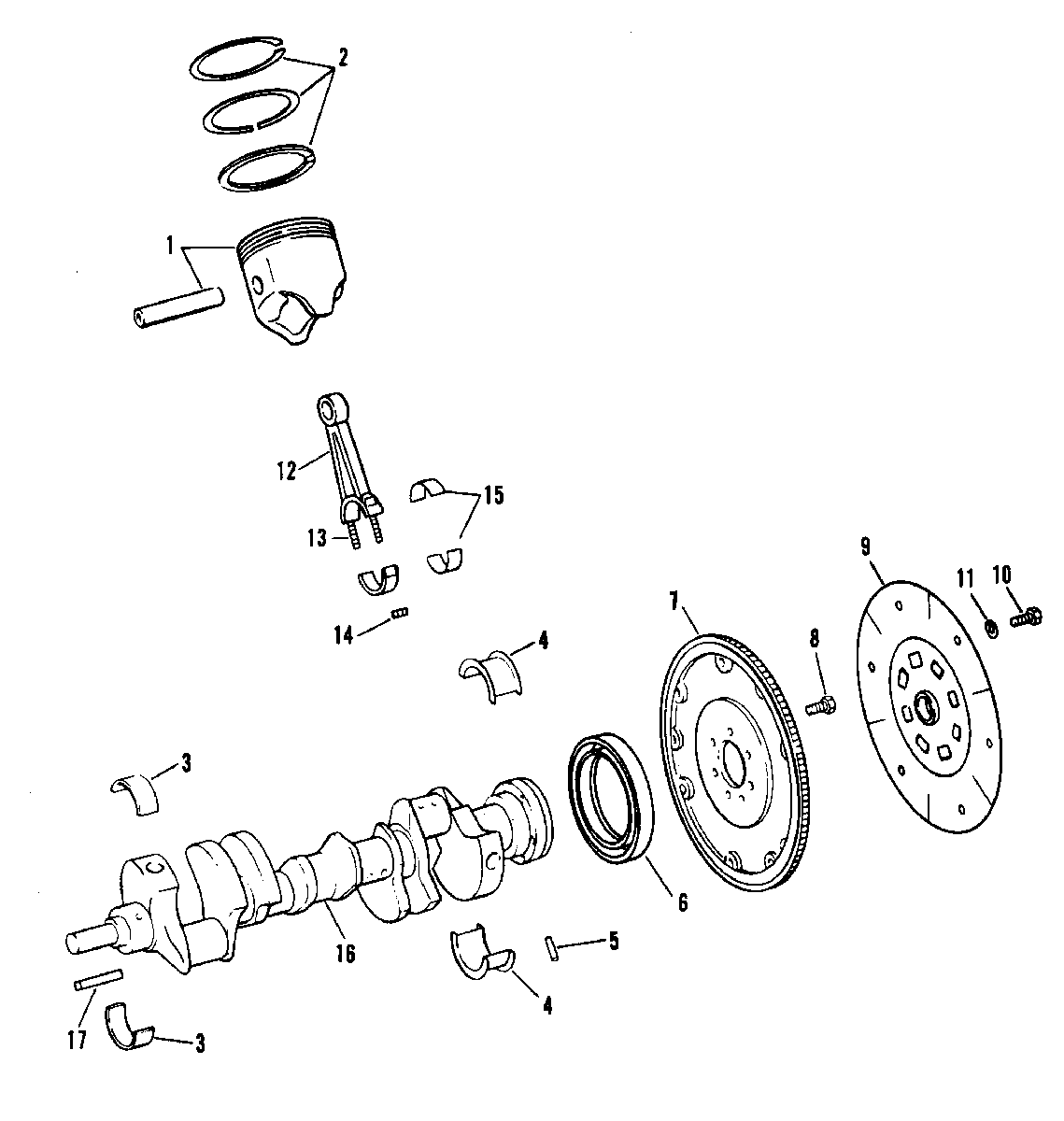

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 454 EFI (SKI) GEN. V GM 454 V-8 1995 0F215800 THRU 0F820099

  • №
    Артикул
    Название
  • 1
    737-850477T PISTON/PISTON PIN (STANDARD)
    PISTON/PISTON PIN (STANDARD)
  • 1
    737-827654 PISTON/PISTON PIN (.030 O.S.)
    PISTON/PISTON PIN (.030 O.S.)
  • 2
    39-827651T PISTON RING (STANDARD)
    PISTON RING (STANDARD)
  • 2
    39-850447 PISTON RING (.030 O.S.)
    PISTON RING (.030 O.S.)
  • 3/4
    23-818473001 BEARING SET (STANDARD)
    BEARING SET (STANDARD)
  • 3/4
    23-818474 BEARING SET (.001 U.S.)
    BEARING SET (.001 U.S.)
  • 3/4
    23-818475 BEARING SET (.002 U.S.)
    BEARING SET (.002 U.S.)
  • 3/4
    23-818476001 BEARING SET (.010 U.S.)
    BEARING SET (.010 U.S.)
  • 3/4
    23-818477 BEARING SET (.020 U.S.)
    BEARING SET (.020 U.S.)
  • 5
    17-843378 DOWEL PIN (1/4" Dia.)
    DOWEL PIN (1/4" Dia.)
  • 6
    26-811554 OIL SEAL
    OIL SEAL
  • 7
    230-843374T1 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW
    SCREW
  • 9
    860125T DRIVE PLATE
    DRIVE PLATE
  • 10
    10-35091 SCREW
    SCREW
  • 11
    13-35048 LOCKWASHER
    LOCKWASHER
  • 12
    614-8M0084554 CONNECTING ROD
    CONNECTING ROD
  • 13
    10-19234 BOLT
    BOLT
  • 14
    11-58056 NUT
    NUT
  • 15
    23-85726001 BEARING UNIT (STANDARD)
    BEARING UNIT (STANDARD)
  • 15
    23-85727 BEARING UNIT (PAIR - .001 U.S.)
    BEARING UNIT (PAIR - .001 U.S.)
  • 15
    23-85728 BEARING UNIT (PAIR - .002 U.S.)
    BEARING UNIT (PAIR - .002 U.S.)
  • 15
    23-85691 BEARING UNIT (PAIR - .010 U.S.)
    BEARING UNIT (PAIR - .010 U.S.)
  • 15
    23-85729 BEARING UNIT (PAIR - .020 U.S.)
    BEARING UNIT (PAIR - .020 U.S.)
  • 16
    429-811552 CRANKSHAFT
    CRANKSHAFT
  • 17
    28-845607 KEY
    KEY
