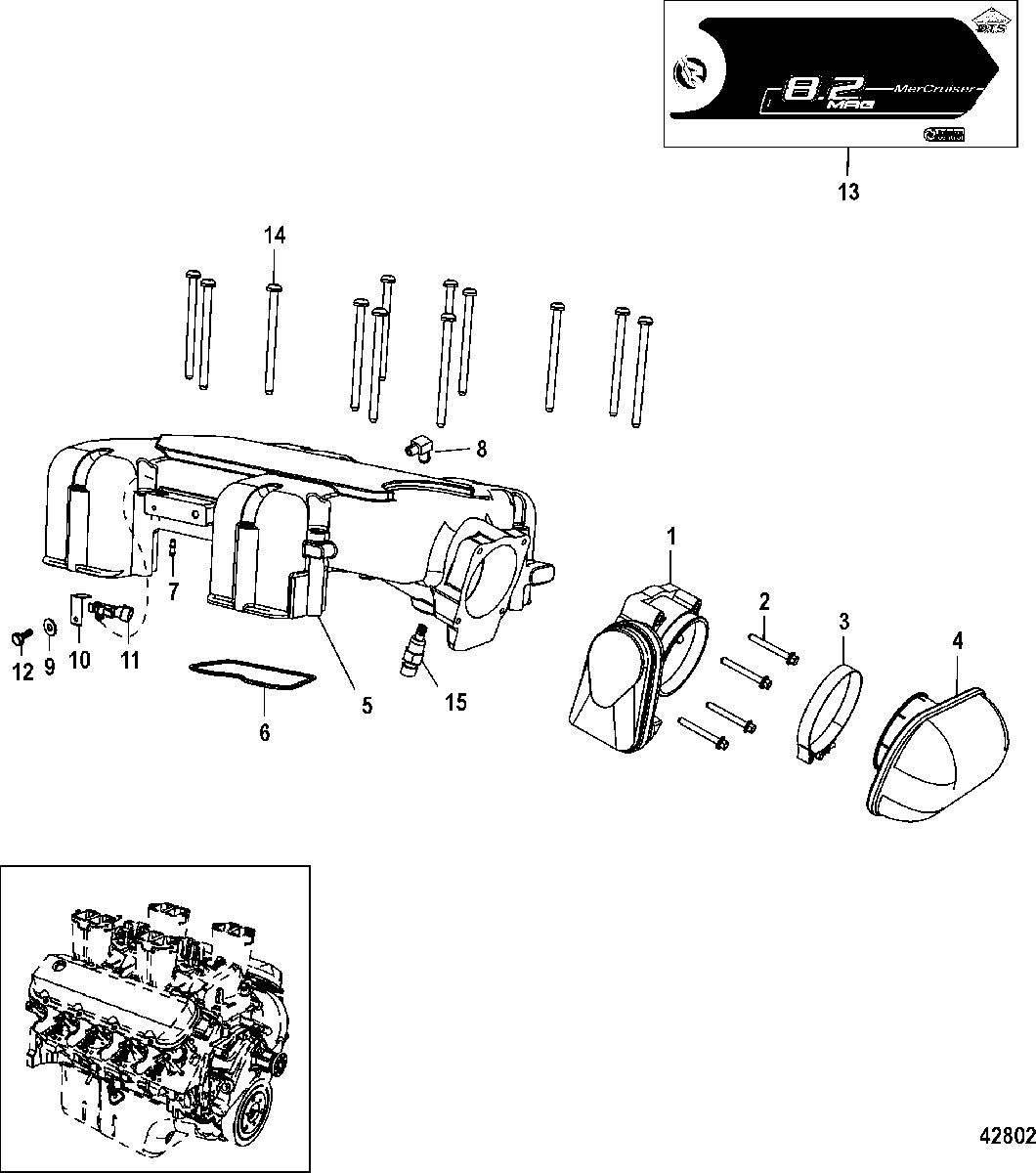

Throttle Body, Digital Throttle-Shift для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051741 THRU 2A051741
-
№АртикулНазвание
-
18M0046460 THROTTLE BODY ASSEMBLY
(Digital)THROTTLE BODY ASSEMBLY
(Digital) -
210-88552550 SCREW, (M6 x 50 MM) Stainless SteelSCREW, (M6 x 50 MM) Stainless Steel
-
354-863393 CLAMPCLAMP
-
48M0113517 FLAME ARRESTORFLAME ARRESTOR
-
58M0045237 PLENUM ASSEMBLYPLENUM ASSEMBLY
-
68M0044310 SEAL, Intake ManifoldSEAL, Intake Manifold
-
722-805598 FITTING, (.1875) BarbFITTING, (.1875) Barb
-
822-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
912-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
108M0061478 BRACKET, MAP Sensor Mount, SensorBRACKET, MAP Sensor Mount, Sensor
-
11854445 SENSOR, MAPSENSOR, MAP
-
1210-847401 SCREW, (#10-24 x .380)SCREW, (#10-24 x .380)
-
1337-8M0045436 DECAL SET, 8.2L Base
SN# 1A352249 & BelowDECAL SET, 8.2L Base
SN# 1A352249 & Below -
1337-8M0054483 DECAL SET, 8.2L EC Base
SN# 1A352250 & UpDECAL SET, 8.2L EC Base
SN# 1A352250 & Up -
1337-8M0045437 DECAL SET, 8.2L High Output
SN# 1A352249 & BelowDECAL SET, 8.2L High Output
SN# 1A352249 & Below -
1337-8M0054484 DECAL SET, 8.2L EC High Output
SN# 1A352250 & UpDECAL SET, 8.2L EC High Output
SN# 1A352250 & Up -
1337-8M0045438 DECAL SET, 8.2L Base (SeaCore)
SN# 1A352249 & BelowDECAL SET, 8.2L Base (SeaCore)
SN# 1A352249 & Below -
1337-8M0054485 DECAL SET, 8.2L EC Base (SeaCore)
SN# 1A352250 & UpDECAL SET, 8.2L EC Base (SeaCore)
SN# 1A352250 & Up -
1337-8M0045439 DECAL SET, 8.2L High Output (SeaCore)
SN# 1A352249 & BelowDECAL SET, 8.2L High Output (SeaCore)
SN# 1A352249 & Below -
1337-8M0054486 DECAL SET, 8.2L EC High Output (SeaCore)
SN# 1A352250 & UpDECAL SET, 8.2L EC High Output (SeaCore)
SN# 1A352250 & Up -
1337-8M0045440 DECAL SET, 8.2L High Output (MIE)
SN# 1A352393 & BelowDECAL SET, 8.2L High Output (MIE)
SN# 1A352393 & Below -
1337-8M0054488 DECAL SET, 8.2L EC High Output (MIE)
SN# 1A352394 & UpDECAL SET, 8.2L EC High Output (MIE)
SN# 1A352394 & Up -
1337-8M0045441 DECAL SET, 8.2L Base (MIE)
SN# 1A352393 & BelowDECAL SET, 8.2L Base (MIE)
SN# 1A352393 & Below -
1337-8M0054487 DECAL SET, 8.2L EC Base (MIE)
SN# 1A352394 & UpDECAL SET, 8.2L EC Base (MIE)
SN# 1A352394 & Up -
1410-805391 SCREW, (.312-18 x 4.500)SCREW, (.312-18 x 4.500)
-
15805223T SENSORSENSOR
-
-98-8M0063432 Silencer KitSilencer Kit
-
1625-8M2001671 GROMMETGROMMET
-
1725-828249 GROMMETGROMMET
-
188M0070932 BRACKETBRACKET
-
1998-8M0070740 COVER ASSEMBLYCOVER ASSEMBLY
-
2037-8M0056663 DECAL, SilencerDECAL, Silencer
-
-37-8M2007500 DECAL, Emission ControlDECAL, Emission Control
