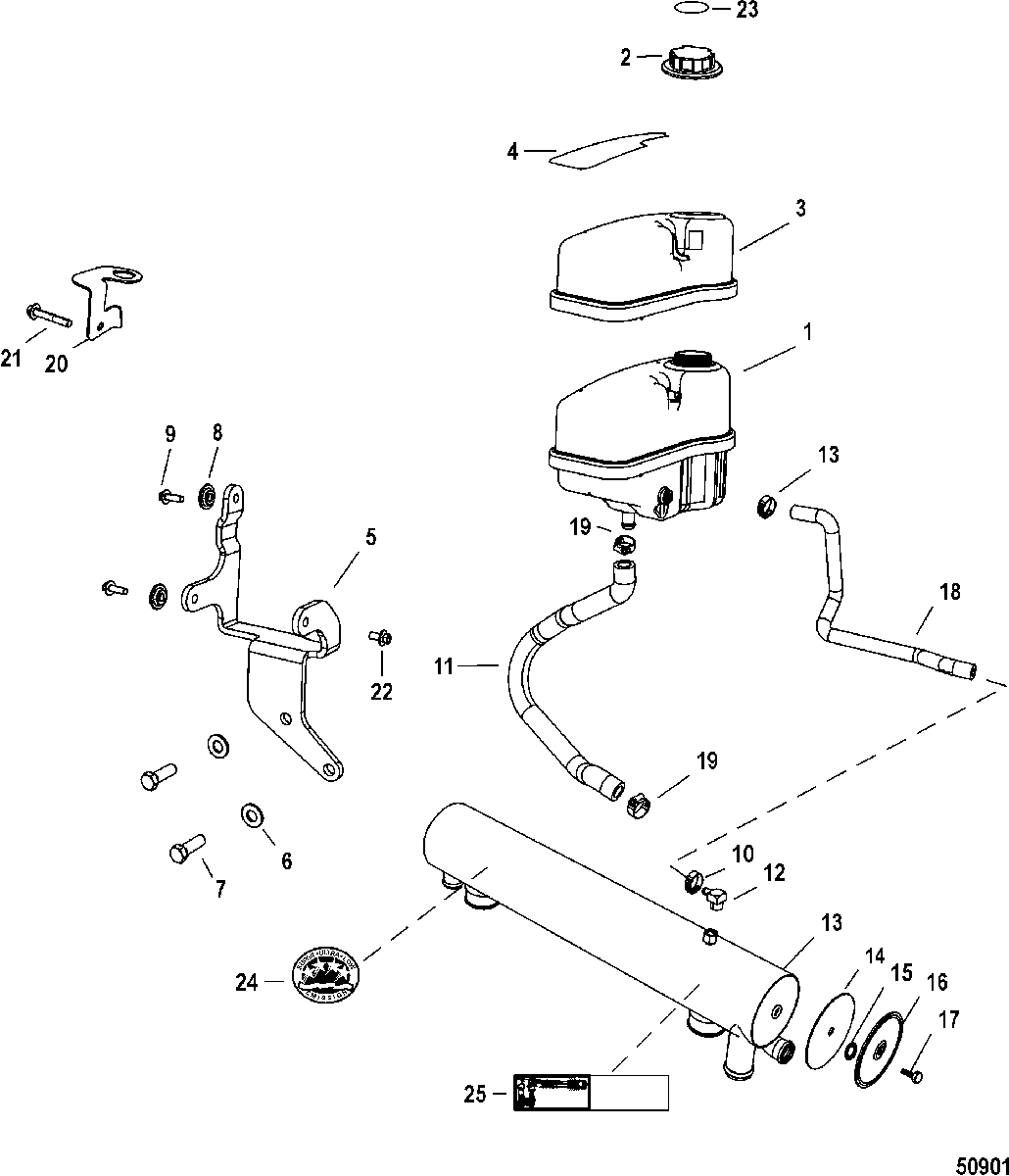

Cooling System, Fresh Water Components для Mercruiser - 8.2L Mag EC (Base Model) 2A041665 THRU 2A051741

  • №
    Артикул
    Название
  • 1
    8M0070210 RESERVIOR, Coolant
    RESERVIOR, Coolant
  • 2
    862863 CAP, Coolant Reservoir
    CAP, Coolant Reservoir
  • 3
    8M0070890 COVER, Coolant Reservoir
    COVER, Coolant Reservoir
  • 4
    37-8M0034675 DECAL, Base
    Sterndrive SN# 2A184339 & Below
    DECAL, Base
    Sterndrive SN# 2A184339 & Below
  • 4
    37-8M0029391 DECAL, Base
    Sterndrive SN# 2A184340 & Up
    DECAL, Base
    Sterndrive SN# 2A184340 & Up
  • 4
    37-8M0034676 DECAL, High Output
    Sterndrive
    DECAL, High Output
    Sterndrive
  • 4
    37-8M0034678 DECAL, Base
    Inboard
    DECAL, Base
    Inboard
  • 4
    37-8M0034677 DECAL, High Output
    Inboard
    DECAL, High Output
    Inboard
  • 5
    8M0070211 BRACKET, Reservoir
    BRACKET, Reservoir
  • 6
    12-27025 WASHER
    WASHER
  • 7
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 8
    23-8M2022695 SPACER
    SPACER
  • 9
    10-4010620 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 10
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    32-8M2017665 HOSE, Reservoir to Circulating Pump
    HOSE, Reservoir to Circulating Pump
  • 12
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 13
    8M0095815 HEAT EXCHANGER
    SN# 2A051741 & Below
    HEAT EXCHANGER
    SN# 2A051741 & Below
  • 13
    8M0095815 HEAT EXCHANGER
    SN# 2A051742 & Up
    HEAT EXCHANGER
    SN# 2A051742 & Up
  • 14
    27-891716 GASKET
    GASKET
  • 15
    25-8M0039163 O-RING, (3/8 x 1/8)
    O-RING, (3/8 x 1/8)
  • 16
    891717 COVER
    COVER
  • 17
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 18
    32-8M2021340 HOSE, Coolant Bleed
    HOSE, Coolant Bleed
  • 19
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    8M2020585 BRACKET, Flush Mount
    MIE V-Drive
    BRACKET, Flush Mount
    MIE V-Drive
  • 21
    10-4010720 SCREW, (M8 x 20), Flush Mount
    MIE V-Drive
    SCREW, (M8 x 20), Flush Mount
    MIE V-Drive
  • 22
    10-4010612 SCREW, (M6 x 12) Stainless Steel
    SCREW, (M6 x 12) Stainless Steel
  • 23
    37-8M2017891 DECAL, Engine Coolant
    DECAL, Engine Coolant
  • 24
    37-8M0042965 DECAL, Carb 4-Star
    DECAL, Carb 4-Star
  • 25
    37-8M0071123 DECAL, Water drain and emission
    DECAL, Water drain and emission
