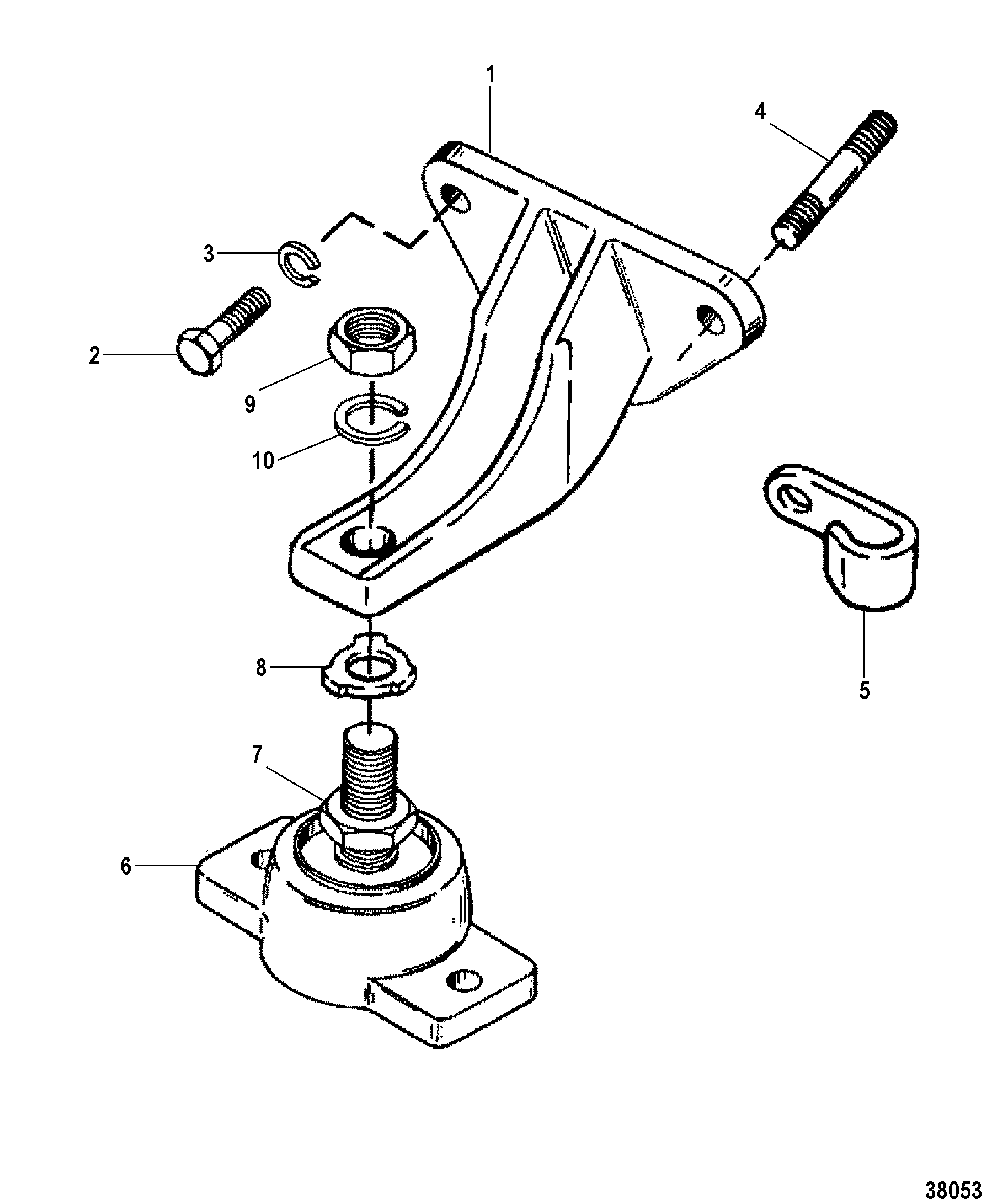

ENGINE MOUNTING для Mercruiser - 7.4LX BRAVO (TBI)(GEN. VI) GM 454 V-8 1996-1997 0F820000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET
    BRACKET
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 2
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 3
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 4
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 5
    54-97862 CLAMP
    CLAMP
  • 6
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 7
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 8
    14-12657 TAB WASHER
    TAB WASHER
  • 9
    11-859126 NUT (3/4-16)
    NUT (3/4-16)
  • 10
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
