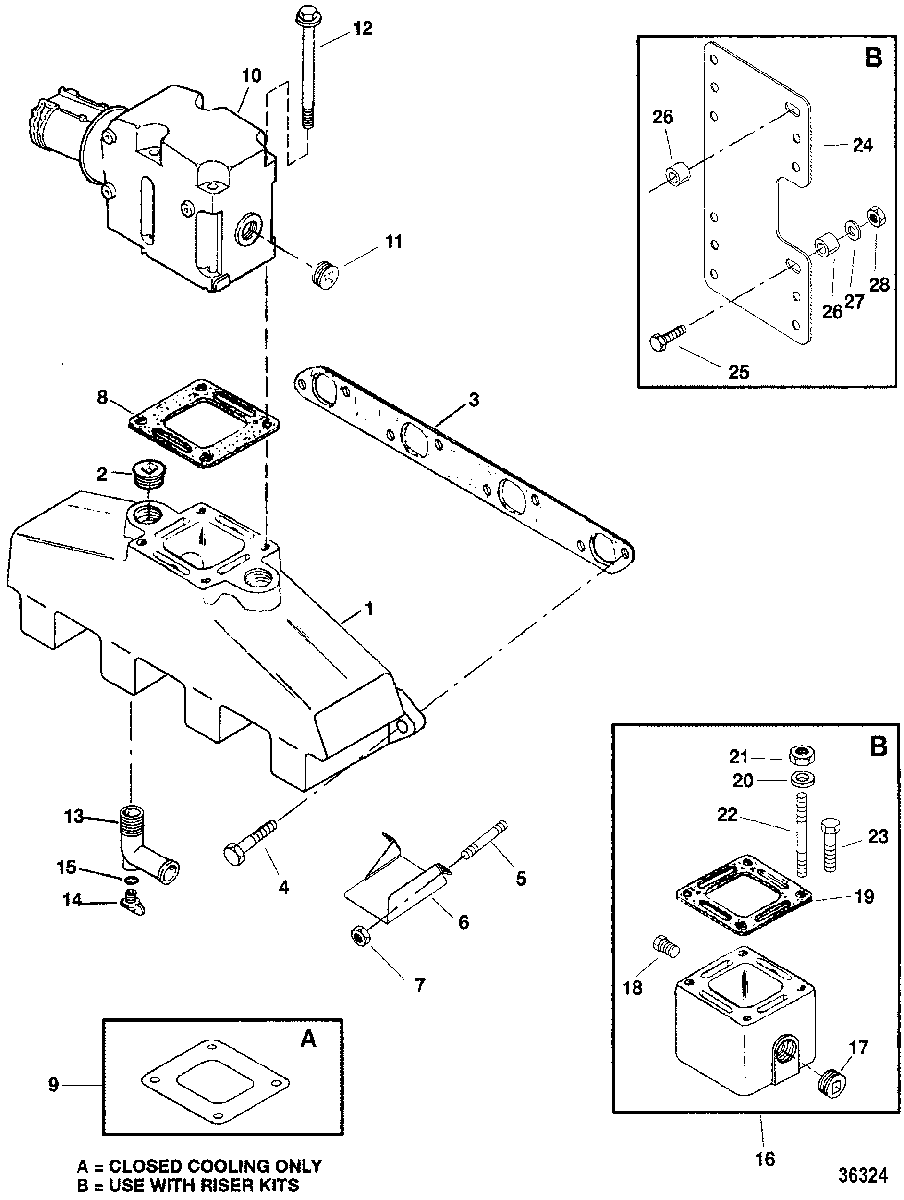

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 502 MAG MPI BRAVO (GEN VI) GM 502 V-8 1998 0L017000 THRU 0L085432

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 3
    27-46820 GASKET
    GASKET
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 5
    16-860165 STUD
    STUD
  • 6
    860203T SHIELD, Heat
    SHIELD, Heat
  • 7
    11-28770 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 8
    27-863724 GASKET
    (STANDARD COOLING)
    GASKET
    (STANDARD COOLING)
  • 9
    27-8637251 GASKET
    (CLOSED COOLING)
    GASKET
    (CLOSED COOLING)
  • 10
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 10
    807988A03 ELBOW ASSEMBLY, Exhaust
    SWISS EMISSIONS (BSO1 & SAV1)
    ELBOW ASSEMBLY, Exhaust
    SWISS EMISSIONS (BSO1 & SAV1)
  • 11
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 12
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 12
    10-43749 SCREW, (.375-16 x 5.750)
    SWISS EMISSIONS (BSO1 & SAV1)
    SCREW, (.375-16 x 5.750)
    SWISS EMISSIONS (BSO1 & SAV1)
  • 12
    10-843504 SCREW, (.380-16 x 1.500) Stainless Steel
    SCREW, (.380-16 x 1.500) Stainless Steel
  • 13
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 14
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 15
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 16
    93320A13 RISER KIT, Exhaust (3 Inches)
    EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (3 Inches)
    EACH KIT CONTAINS 2 RISERS
  • 16
    93322A12 RISER KIT, Exhaust (6 Inches)
    EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (6 Inches)
    EACH KIT CONTAINS 2 RISERS
  • 17
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 18
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 19
    27-863726 GASKET
    GASKET
  • 20
    12-46132 WASHER
    USE WITH 3 IN. RISER
    WASHER
    USE WITH 3 IN. RISER
  • 21
    11-46335 NUT, (.375-24)
    USE WITH 3 IN. RISER
    NUT, (.375-24)
    USE WITH 3 IN. RISER
  • 22
    16-8M0022137 STUD, (.375 x 9.56)
    USE WITH 3 IN. RISER
    STUD, (.375 x 9.56)
    USE WITH 3 IN. RISER
  • 23
    10-14315 SCREW, (.375-16 x 4.25)
    -SWISS EMISSIONS (BSO1 & SAV1) USE WITH 3 IN. RISER
    SCREW, (.375-16 x 4.25)
    -SWISS EMISSIONS (BSO1 & SAV1) USE WITH 3 IN. RISER
  • 23
    10-865982005 SCREW, (.375-16 x 1.00)
    USE WITH 6 IN. RISER
    SCREW, (.375-16 x 1.00)
    USE WITH 6 IN. RISER
  • 24
    818598T BRACKET
    USE WITH 6 IN. RISER
    BRACKET
    USE WITH 6 IN. RISER
  • 25
    10-76596 SCREW, (.250-20 x 1.250)
    USE WITH 6 IN. RISER
    SCREW, (.250-20 x 1.250)
    USE WITH 6 IN. RISER
  • 26
    23-806981 SPACER
    USE WITH 6 IN. RISER
    SPACER
    USE WITH 6 IN. RISER
  • 27
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    USE WITH 6 IN. RISER
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    USE WITH 6 IN. RISER
  • 28
    11-64015 NUT, (.250-20)
    USE WITH 6 IN. RISER
    NUT, (.250-20)
    USE WITH 6 IN. RISER
  • -
    27-811572A94 GASKET SET, Overhaul
    (454)
    GASKET SET, Overhaul
    (454)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502)
    GASKET SET, Overhaul
    (502)
