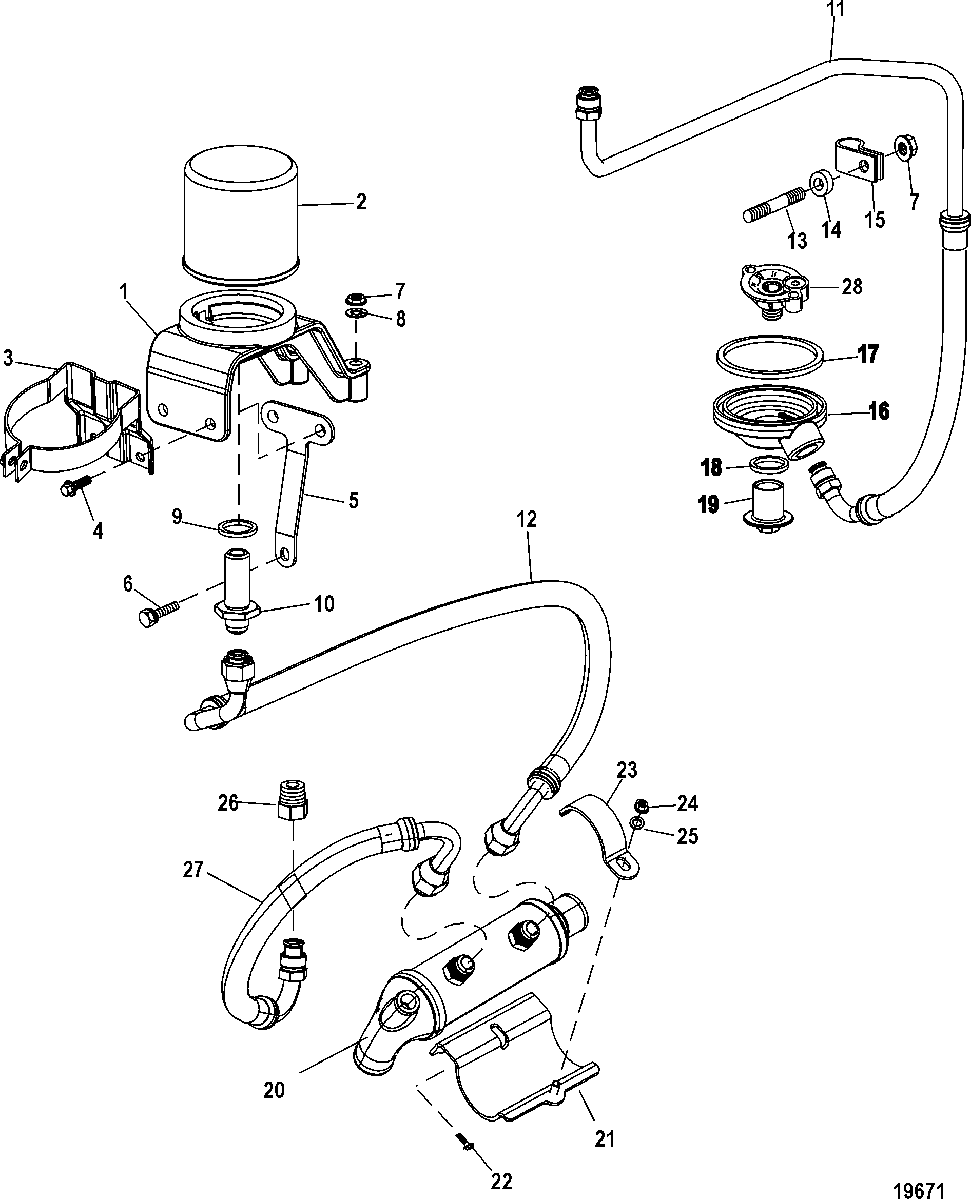

Remote Oil System для Mercruiser - 496 MAG (H.O. Model) 0W650000 THRU 1A066165
-
№АртикулНазвание
-
1862342T BRACKET, Remote Oil FilterBRACKET, Remote Oil Filter
-
235-866340Q03 FILTER, Oil - Quicksilver BrandFILTER, Oil - Quicksilver Brand
-
3865262A02 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
410-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
58629102 BRACKET, SupportBRACKET, Support
-
610-4010716 SCREW, (M8 x 16), FlangeSCREW, (M8 x 16), Flange
-
711-4002030 NUT, (M8)NUT, (M8)
-
711-400213 NUT, (M8) Stainless Steel
(SEACORE)NUT, (M8) Stainless Steel
(SEACORE) -
812-12038 WASHERWASHER
-
926-42077 SEALSEAL
-
1022-806328 FITTING, Oil AdaptorFITTING, Oil Adaptor
-
1132-863899 HOSE, Oil, Filter to AdaptorHOSE, Oil, Filter to Adaptor
-
1232-863900 HOSE, Oil, Filter to CoolerHOSE, Oil, Filter to Cooler
-
1316-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
1423-34948 SPACERSPACER
-
1554-475451 CLIPCLIP
-
16862870T ADAPTOR, Oil FilterADAPTOR, Oil Filter
-
1726-862957 SEAL, Oil Filter AdaptorSEAL, Oil Filter Adaptor
-
1826-42077 SEAL, Swivel TubeSEAL, Swivel Tube
-
1922-862958 FITTING, Oil Filter AdaptorFITTING, Oil Filter Adaptor
-
20863904T COOLER, OilCOOLER, Oil
-
21863905T BRACKET, Oil CoolerBRACKET, Oil Cooler
-
2210-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
23807445T CLAMP, Cooler BracketCLAMP, Cooler Bracket
-
2411-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2512-22937 WASHERWASHER
-
2512-35044 WASHER, (.281 x .625 x .065) Stainless Steel
(SEACORE)WASHER, (.281 x .625 x .065) Stainless Steel
(SEACORE) -
2622-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
-
2732-863915 HOSE, Oil, Cooler to AdaptorHOSE, Oil, Cooler to Adaptor
-
28883920 VALVE ASSEMBLY, FilterVALVE ASSEMBLY, Filter
