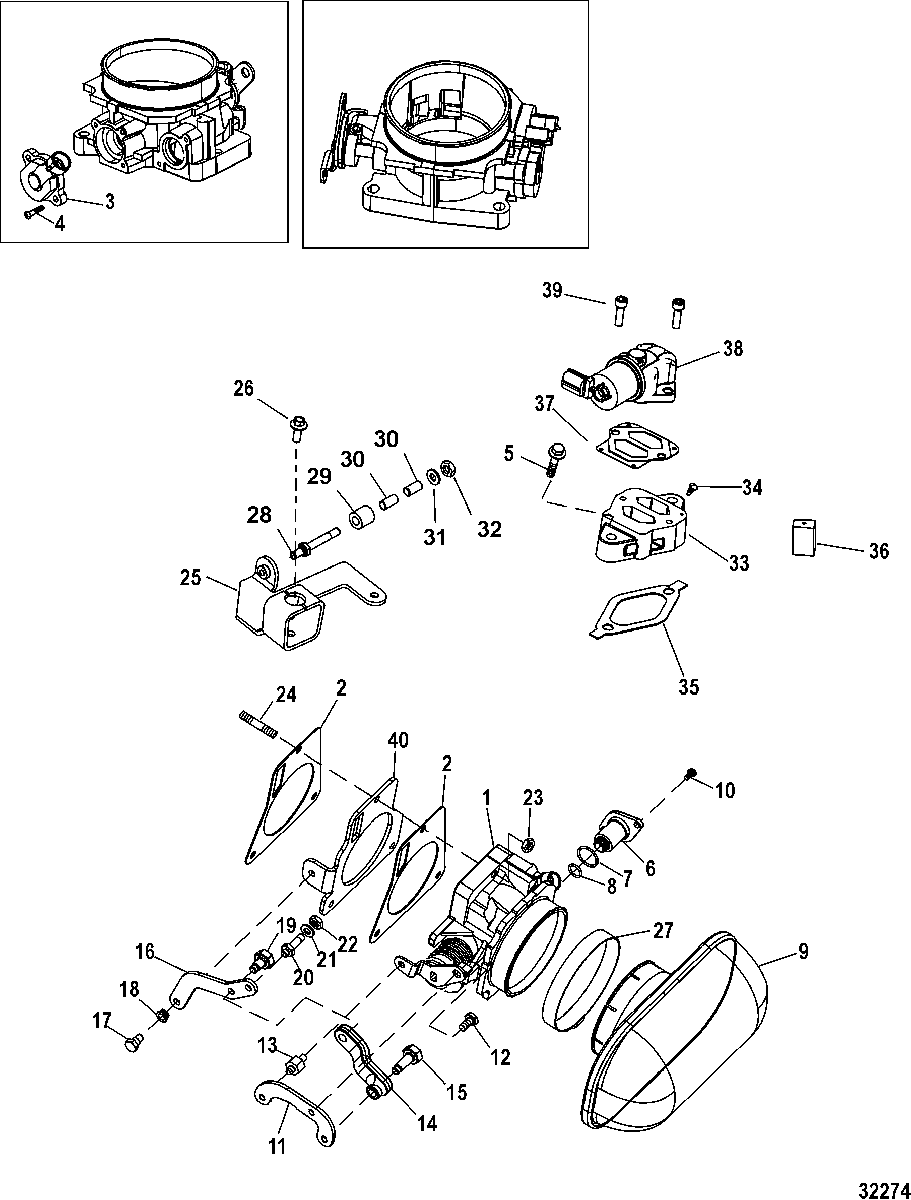

Throttle Body, Mechanical Throttle-Shift для Mercruiser - 496 MAG EC (H.O. Model) 1A066166 THRU 1A350440

  • №
    Артикул
    Название
  • 1
    879288T50 THROTTLE BODY ASSEMBLY, Base and High Output
    THROTTLE BODY ASSEMBLY, Base and High Output
  • 2
    27-863215 GASKET, Throttle Body
    GASKET, Throttle Body
  • 3
    8M0097035 SENSOR, TPS, Includes O-Ring
    SENSOR, TPS, Includes O-Ring
  • 4
    10-853680 SCREW KIT
    SCREW KIT
  • 5
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 6
    862999002 PLUG, Adaptor, Intake Air Control
    PLUG, Adaptor, Intake Air Control
  • 7
    25-808547 O-RING
    O-RING
  • 8
    25-863006 O-RING
    O-RING
  • 9
    8M0113516 FLAME ARRESTOR
    FLAME ARRESTOR
  • 10
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 11
    863135 LEVER, Throttle
    LEVER, Throttle
  • 12
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 13
    16-863345 STUD, Special
    STUD, Special
  • 14
    863214 LINK
    LINK
  • 15
    805533 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 16
    8M2001692 ARM, Cable
    ARM, Cable
  • 17
    10-863380 SCREW, Special
    SCREW, Special
  • 18
    23-97896 BUSHING, Flanged
    BUSHING, Flanged
  • 19
    805398 PIN, Primary Linkage
    PIN, Primary Linkage
  • 20
    16-805526 STUD, (.250-28 x 1.540)
    STUD, (.250-28 x 1.540)
  • 21
    12-20533 WASHER
    WASHER
  • 22
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 22
    11-826709109 NUT, (.250-28) Stainless Steel
    (SEACORE)
    NUT, (.250-28) Stainless Steel
    (SEACORE)
  • 23
    11-802751 NUT
    NUT
  • 24
    16-8M0077391 STUD
    STUD
  • 25
    8M2005404 BRACKET, Throttle Cable Attaching
    BRACKET, Throttle Cable Attaching
  • 26
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 27
    54-863393 CLAMP, Flame Arrestor
    CLAMP, Flame Arrestor
  • 28
    16-97477A3 STUD KIT
    STUD KIT
  • 28
    16-866641A01 STUD KIT
    (SEACORE)
    STUD KIT
    (SEACORE)
  • 29
    NSS NOT SOLD SEPARATE, Spacer, Special
    NOT SOLD SEPARATE, Spacer, Special
  • 30
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 31
    12-20533 WASHER
    WASHER
  • 32
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 32
    11-826709109 NUT, (.250-28) Stainless Steel
    (SEACORE)
    NUT, (.250-28) Stainless Steel
    (SEACORE)
  • 33
    879288A47 PLATE ASSEMBLY, Mounting - Intake Air Control
    PLATE ASSEMBLY, Mounting - Intake Air Control
  • 34
    NSS NOT SOLD SEPARATE, Rivet
    NOT SOLD SEPARATE, Rivet
  • 35
    27-863285 GASKET, Air Valve
    GASKET, Air Valve
  • 36
    35-865266 FILTER
    FILTER
  • 37
    NSS NOT SOLD SEPARATE, Gasket, Idle Air Valve
    NOT SOLD SEPARATE, Gasket, Idle Air Valve
  • 38
    862998 VALVE, Idle Air
    VALVE, Idle Air
  • 39
    10-4010620 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 40
    862996 BRACKET, Throttle Linkage
    BRACKET, Throttle Linkage
