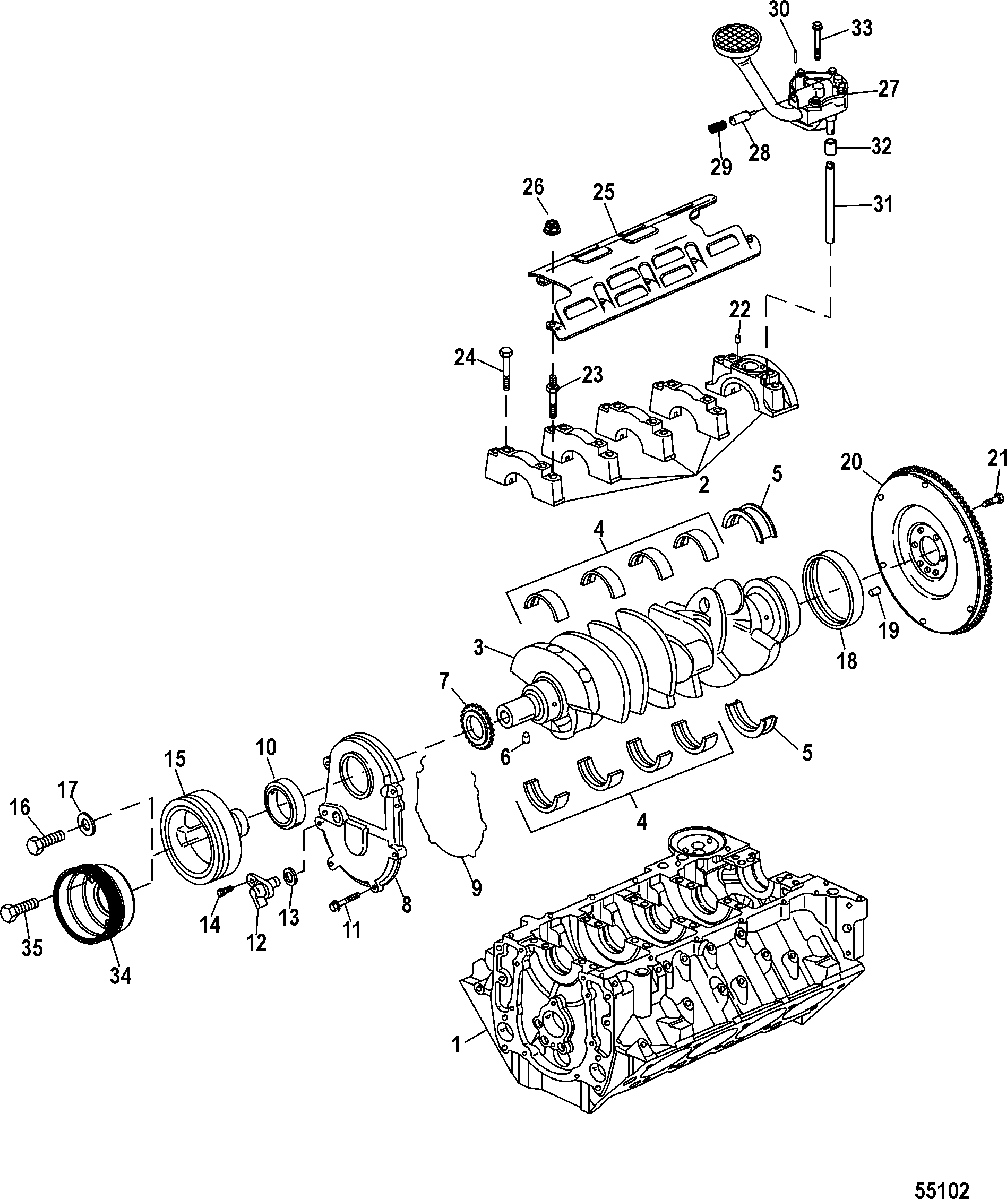

Block, Crankshaft, Oil Pump and Front Cover для Mercruiser - 496 H.O. BRAVO 1G400000 & Up

  • №
    Артикул
    Название
  • NS
    8M0086001 LONG BLOCK, Block Code MMA1
    LONG BLOCK, Block Code MMA1
  • 1
    NSS NOT SOLD SEPARATE, Block, Engine
    Order Longblock Assembly
    NOT SOLD SEPARATE, Block, Engine
    Order Longblock Assembly
  • 2
    NSS NOT SOLD SEPARATE, Cap, Crankshaft Bearing
    NOT SOLD SEPARATE, Cap, Crankshaft Bearing
  • 3
    429-8M0087364 CRANKSHAFT
    CRANKSHAFT
  • 4
    23-884702 BEARING KIT
    BEARING KIT
  • 5
    23-881607001 BEARING KIT, Crankshaft Main Thrust
    BEARING KIT, Crankshaft Main Thrust
  • 6
    17-881605 PIN, Balancer Locating
    PIN, Balancer Locating
  • 7
    43-881655 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 8
    892616001 COVER, Front
    COVER, Front
  • 9
    27-881604 GASKET, Front Cover
    GASKET, Front Cover
  • 10
    26-881613001 SEAL, Front Crankshaft
    SEAL, Front Crankshaft
  • 11
    10-8M0069806 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 12
    892615002 SENSOR, Camshaft Position
    SENSOR, Camshaft Position
  • 13
    NSS NOT SOLD SEPARATE, Seal, Camshaft Position Sensor
    NOT SOLD SEPARATE, Seal, Camshaft Position Sensor
  • 14
    10-883923 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 15
    891769 BALANCER, Crankshaft
    BALANCER, Crankshaft
  • 16
    10-881587 SCREW, (M16 x 1.5)
    SCREW, (M16 x 1.5)
  • 17
    12-881614 WASHER
    WASHER
  • 18
    26-881608001 SEAL, Rear Crankshaft
    SEAL, Rear Crankshaft
  • 19
    17-881609 PIN, Flywheel Locating
    PIN, Flywheel Locating
  • 20
    222-881640T01 FLYWHEEL
    FLYWHEEL
  • 21
    10-881578 BOLT
    BOLT
  • 22
    17-843378 PIN, Dowel, Oil Pump Locating
    PIN, Dowel, Oil Pump Locating
  • 23
    16-8M0090762 STUD, Crankshaft Bearing Cap
    STUD, Crankshaft Bearing Cap
  • 24
    16-8M0090761 SCREW, Crankshaft Bearing Cap
    SCREW, Crankshaft Bearing Cap
  • 25
    843945T WINDAGE TRAY, Oil Deflector
    WINDAGE TRAY, Oil Deflector
  • 26
    11-845602 NUT, (.375-16), Flanged
    NUT, (.375-16), Flanged
  • 27
    8M0069808 PUMP-OIL, Oil
    PUMP-OIL, Oil
  • 28
    17-881611 PIN, Oil Pump
    PIN, Oil Pump
  • 29
    24-881610 SPRING, Oil Pump
    SPRING, Oil Pump
  • 30
    NLA No Longer Available, Pressure Relief Valve
    ORD 8M0069808
    No Longer Available, Pressure Relief Valve
    ORD 8M0069808
  • 31
    8M0046892 SHAFT AND RETAINER, Oil Pump Drive
    SHAFT AND RETAINER, Oil Pump Drive
  • 32
    23-36183 RETAINER, Oil Pump Drive
    RETAINER, Oil Pump Drive
  • 33
    10-881585 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 34
    862349 PULLEY, Crankshaft
    PULLEY, Crankshaft
  • 35
    10-4009025 SCREW, (M10 x 25) Stainless Steel
    SCREW, (M10 x 25) Stainless Steel
  • NS
    8M0089761 RELUCTOR WHEEL, Forward
    RELUCTOR WHEEL, Forward
  • NS
    8M0089762 RELUCTOR WHEEL, Aft
    RELUCTOR WHEEL, Aft
