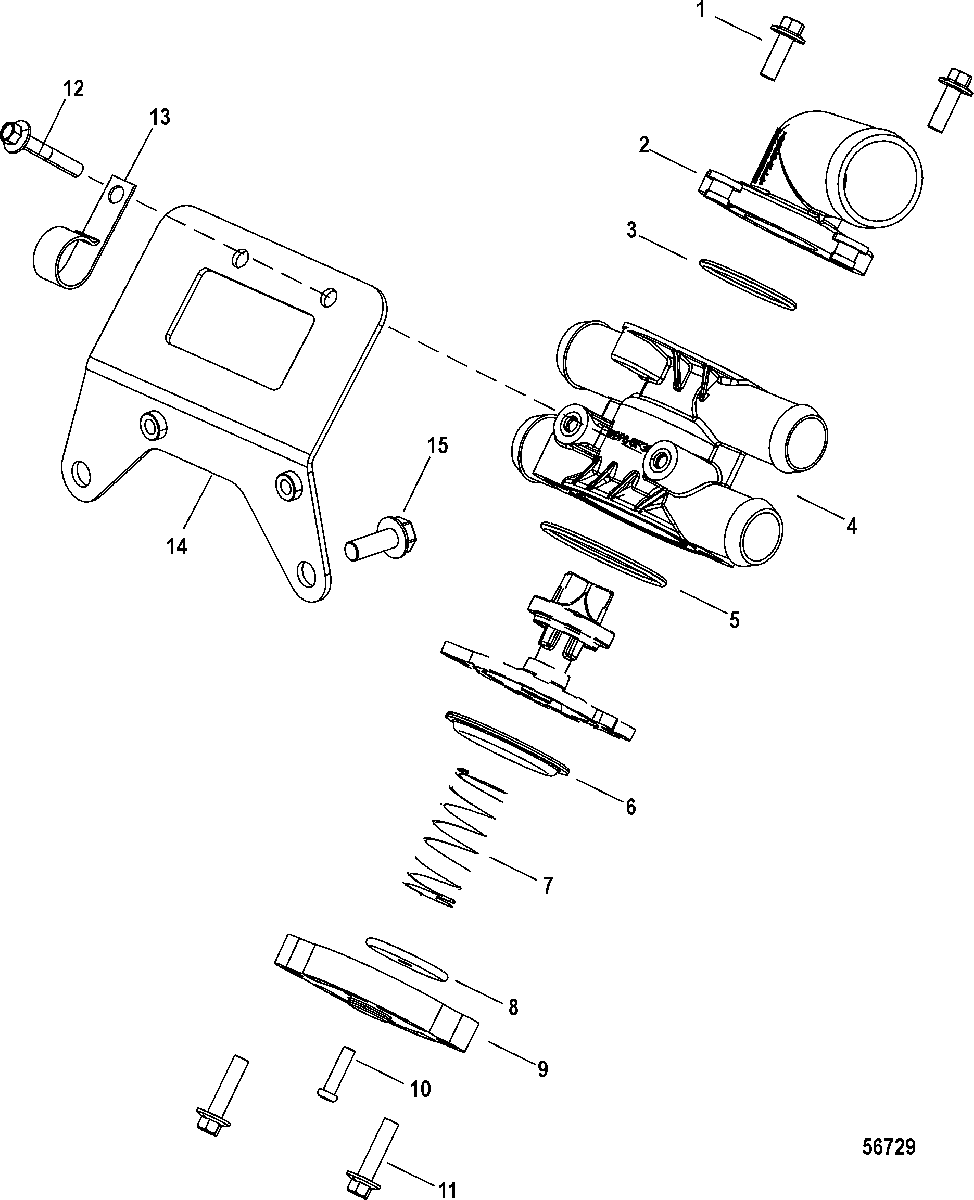

Poppet Valve Assemblies для Mercruiser - 4.5L MPI 200 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • -
    8M0095445 VALVE ASSEMBLY, Poppet, Alpha RWC
    VALVE ASSEMBLY, Poppet, Alpha RWC
  • -
    8M0095446 VALVE ASSEMBLY, Poppet, Bravo RWC
    VALVE ASSEMBLY, Poppet, Bravo RWC
  • -
    8M0095459 VALVE ASSEMBLY, Poppet, FWC
    VALVE ASSEMBLY, Poppet, FWC
  • 1
    10-4010618 SCREW, (M6 x 18) Stainless Steel
    SCREW, (M6 x 18) Stainless Steel
  • 2
    22-8M2020465 FITTING
    FITTING
  • 3
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 4
    NSS NOT SOLD SEPARATE, Housing
    NOT SOLD SEPARATE, Housing
  • 5
    25-30529 O-RING, (1.925 x .103)
    O-RING, (1.925 x .103)
  • 6
    648771 DIAPHRAGM
    DIAPHRAGM
  • 7
    24-90392 SPRING, Alpha RWC
    SPRING, Alpha RWC
  • 7
    24-64878 SPRING, (Black), Bravo RWC
    SPRING, (Black), Bravo RWC
  • 7
    24-90392 SPRING, FWC
    SPRING, FWC
  • 8
    12-76451 WASHER
    WASHER
  • 9
    8M0036759 COVER
    COVER
  • 10
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 11
    10-82130025 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 12
    10-4010612 SCREW, (M6 x 12) Stainless Steel
    SCREW, (M6 x 12) Stainless Steel
  • 13
    54-65292 J CLIP
    J CLIP
  • 14
    8M0081140 BRACKET
    BRACKET
  • 15
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
