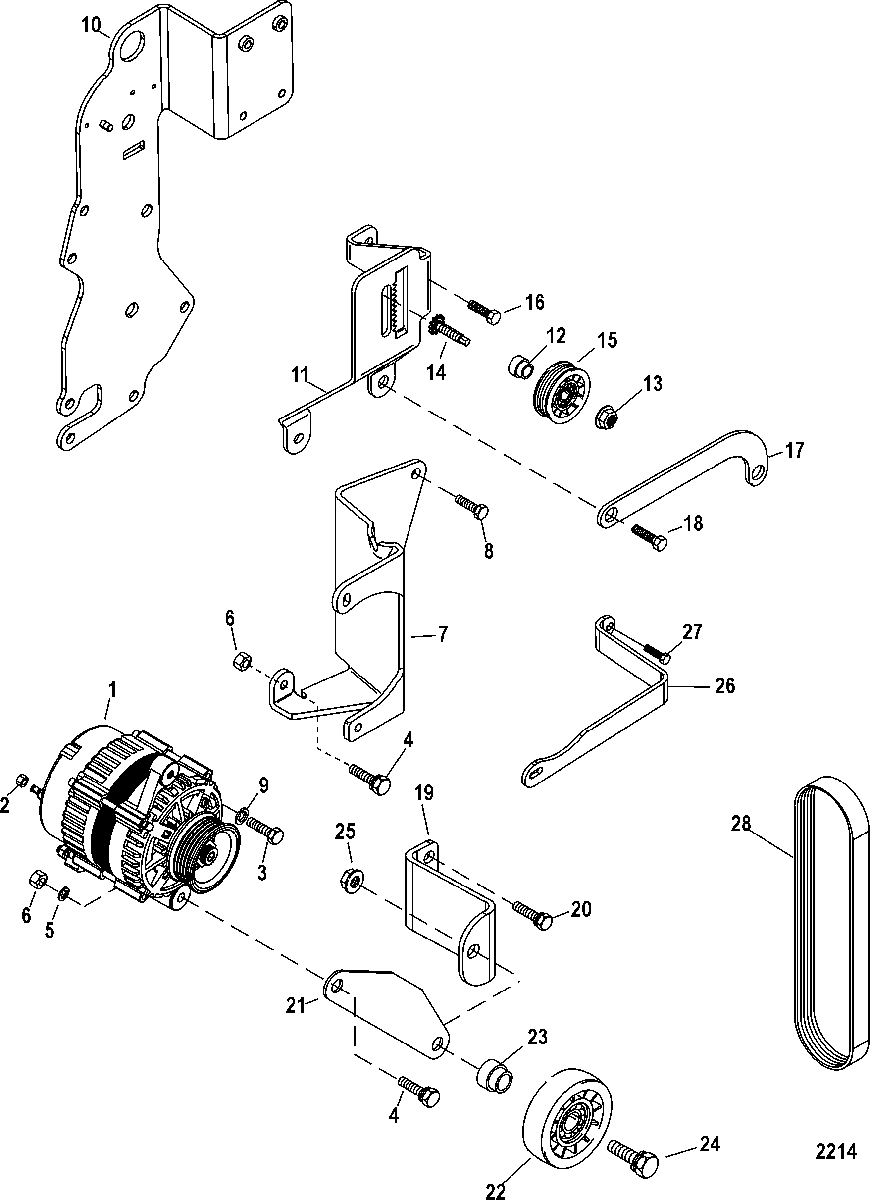

Alternator and Brackets для Mercruiser - 4.3L MPI ALPHA/BRAVO 1A030370 THRU 1A063239
-
№АртикулНазвание
-
1863077T ALTERNATOR ASSEMBLY, Black, 65 Amp - With 50mm Pulley
(Non Serviceable)ALTERNATOR ASSEMBLY, Black, 65 Amp - With 50mm Pulley
(Non Serviceable) -
211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
310-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
410-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
512-57792 WASHERWASHER
-
611-26484 NUT, (.312-18)NUT, (.312-18)
-
7863211T01 BRACKET, Alternator MountingBRACKET, Alternator Mounting
-
810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
912-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
10865188T01 BRACKET
(All Except - Standard Cool With Air Actuated Drain)BRACKET
(All Except - Standard Cool With Air Actuated Drain) -
10865188T BRACKET
(Use With - Standard Cooling With Air Actuated Drain)BRACKET
(Use With - Standard Cooling With Air Actuated Drain) -
11862083T BRACKET, Idler AdjustingBRACKET, Idler Adjusting
-
12865193 BUSHINGBUSHING
-
1311-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
1443-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
15864625T PULLEY (4.25 Inch Diameter)PULLEY (4.25 Inch Diameter)
-
1610-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
17862082T BRACE, Power Steering BraceBRACE, Power Steering Brace
-
1810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
19864456T BRACKET, Alternator Brace
(Bravo)(Alpha - Closed Cooling)BRACKET, Alternator Brace
(Bravo)(Alpha - Closed Cooling) -
2010-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
21862085T BRACE, Idler Bracket
(Bravo)(Alpha - Closed Cooling)BRACE, Idler Bracket
(Bravo)(Alpha - Closed Cooling) -
228M6500024 PULLEY
(Bravo)(Alpha - Closed Cooling)PULLEY
(Bravo)(Alpha - Closed Cooling) -
23865193 BUSHING
(Bravo)(Alpha - Closed Cooling)BUSHING
(Bravo)(Alpha - Closed Cooling) -
2410-56393 SCREW, (.437-20 x 1.75)
(Bravo)(Alpha - Closed Cooling)SCREW, (.437-20 x 1.75)
(Bravo)(Alpha - Closed Cooling) -
2511-859135 NUT, (.437-20) Brass/Nickel Plated
(Bravo)(Alpha - Closed Cooling)NUT, (.437-20) Brass/Nickel Plated
(Bravo)(Alpha - Closed Cooling) -
26862778 BRACKET, Alternator Brace
(Alpha - Standard Cooling)BRACKET, Alternator Brace
(Alpha - Standard Cooling) -
2710-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2857-865615Q04 BELT
(Alpha-Standard Cooling)(With Power Steering)BELT
(Alpha-Standard Cooling)(With Power Steering) -
2857-865615Q09 BELT
(Alpha-Standard Cooling)(With Compact Hydraulic Steering)BELT
(Alpha-Standard Cooling)(With Compact Hydraulic Steering) -
2857-865615Q03 BELT
(Alpha-Closed Cooling)(Bravo)(With Power Steering)BELT
(Alpha-Closed Cooling)(Bravo)(With Power Steering) -
2857-865615Q08 BELT
(Alpha-Closed Cooling)(Bravo)(With Compact Hydraulic Steering)BELT
(Alpha-Closed Cooling)(Bravo)(With Compact Hydraulic Steering)
