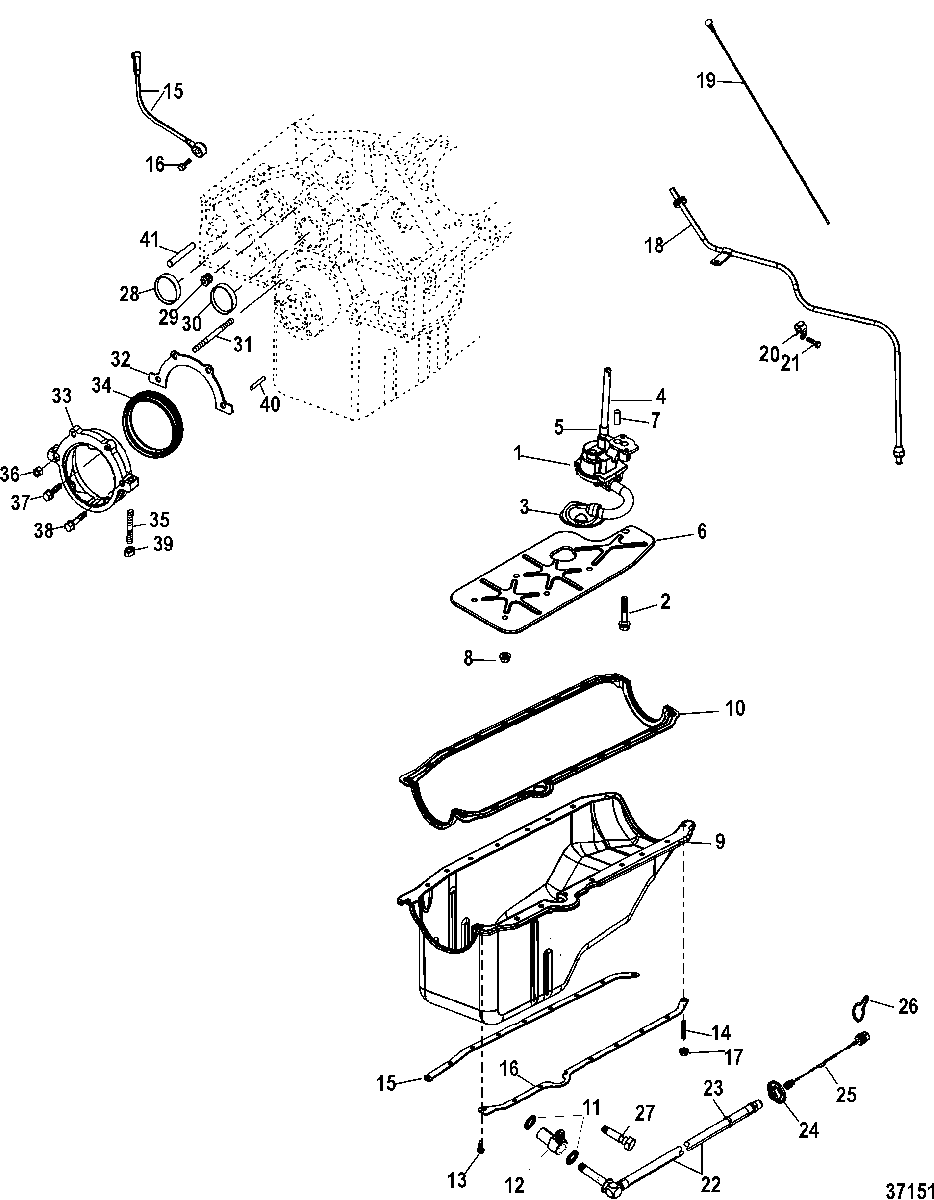

Oil Pan, Oil Pump and Rear Oil Seal для Mercruiser - 4.3L MPI ALPHA/BRAVO 1A030368 THRU 1A030369

  • №
    Артикул
    Название
  • 1
    809907002 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    10-17346 SCREW, Oil Pump
    SCREW, Oil Pump
  • 3
    8099081 SCREEN, Oil Pump Pick-Up
    SCREEN, Oil Pump Pick-Up
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    NSS NOT SOLD SEPARATE, Oil Deflector Included with Pan
    NOT SOLD SEPARATE, Oil Deflector Included with Pan
  • 7
    17-843378 PIN, Dowel, Alignment,Oil Pump
    PIN, Dowel, Alignment,Oil Pump
  • 8
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 9
    804912T02 PAN, Oil
    PAN, Oil
  • 10
    27-14247T02 GASKET SET, Oil Pan
    GASKET SET, Oil Pan
  • 11
    27-8M0077608 GASKET, Drain Screw
    GASKET, Drain Screw
  • 12
    22-862813 FITTING, Tee
    FITTING, Tee
  • 13
    10-726071 SCREW, (5/16-18x x .875)
    SCREW, (5/16-18x x .875)
  • 14
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 15
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 16
    10-F430732 SCREW, (.312-18 x 1.250) Stainless Steel
    SCREW, (.312-18 x 1.250) Stainless Steel
  • 17
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 18
    864928A1 TUBE, Dipstick
    (Closed Cooling)
    TUBE, Dipstick
    (Closed Cooling)
  • 18
    865178 TUBE, Dipstick
    (Standard Cooling)
    TUBE, Dipstick
    (Standard Cooling)
  • 19
    86194214 DIPSTICK
    (Closed Cooling)
    DIPSTICK
    (Closed Cooling)
  • 19
    86194216 DIPSTICK
    (Standard Cooling)
    DIPSTICK
    (Standard Cooling)
  • 20
    54-8054441 CLIP, Dipsitck Tube
    CLIP, Dipsitck Tube
  • 21
    10-8M0040582 SCREW
    SCREW
  • 22
    32-865278 HOSE, Oil Drain
    SN# 1A343328 & Below
    HOSE, Oil Drain
    SN# 1A343328 & Below
  • 22
    32-865279 HOSE, Oil Drain
    (Jackshaft Models) SN# 1A343328 & Below
    HOSE, Oil Drain
    (Jackshaft Models) SN# 1A343328 & Below
  • 23
    54-863481 CLAMP, Ty Strap
    SN# 1A343328 & Below
    CLAMP, Ty Strap
    SN# 1A343328 & Below
  • 24
    862777 FLANGE, Drain
    SN# 1A343328 & Below
    FLANGE, Drain
    SN# 1A343328 & Below
  • 25
    862827 TETHER ASSEMBLY
    SN# 1A343328 & Below
    TETHER ASSEMBLY
    SN# 1A343328 & Below
  • 26
    54-805524 CLIP
    SN# 1A343328 & Below
    CLIP
    SN# 1A343328 & Below
  • 27
    22-8M2016778 FITTING, Banjo
    SN# 1A343329 & Up
    FITTING, Banjo
    SN# 1A343329 & Up
  • 28
    19-34270 EXPANSION PLUG, (1.625), Engine Core Hole
    EXPANSION PLUG, (1.625), Engine Core Hole
  • 29
    22-12524 PLUG, (.375), Oil Galley
    PLUG, (.375), Oil Galley
  • 30
    22-72640 PLUG, Expansion, Camshaft Bearing Hole
    PLUG, Expansion, Camshaft Bearing Hole
  • 31
    16-148271 STUD
    STUD
  • 32
    27-881715 GASKET, Crankshaft Oil Seal Housing
    GASKET, Crankshaft Oil Seal Housing
  • 33
    804910001 RETAINER, Crankshaft Oil Seal
    RETAINER, Crankshaft Oil Seal
  • 34
    26-879194364 SEAL, Crankshaft Oil
    SEAL, Crankshaft Oil
  • 35
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 36
    11-8M0098315 NUT
    NUT
  • 37
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 38
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 39
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 40
    17-14263 PIN, Dowel, Oil Seal Housing Location
    PIN, Dowel, Oil Seal Housing Location
  • 41
    17-43504 PIN, Dowel, Flywheel Housing Location
    PIN, Dowel, Flywheel Housing Location
  • -
    27-807756A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    879150A31 LONG BLOCK (4.3L)
    LONG BLOCK (4.3L)
