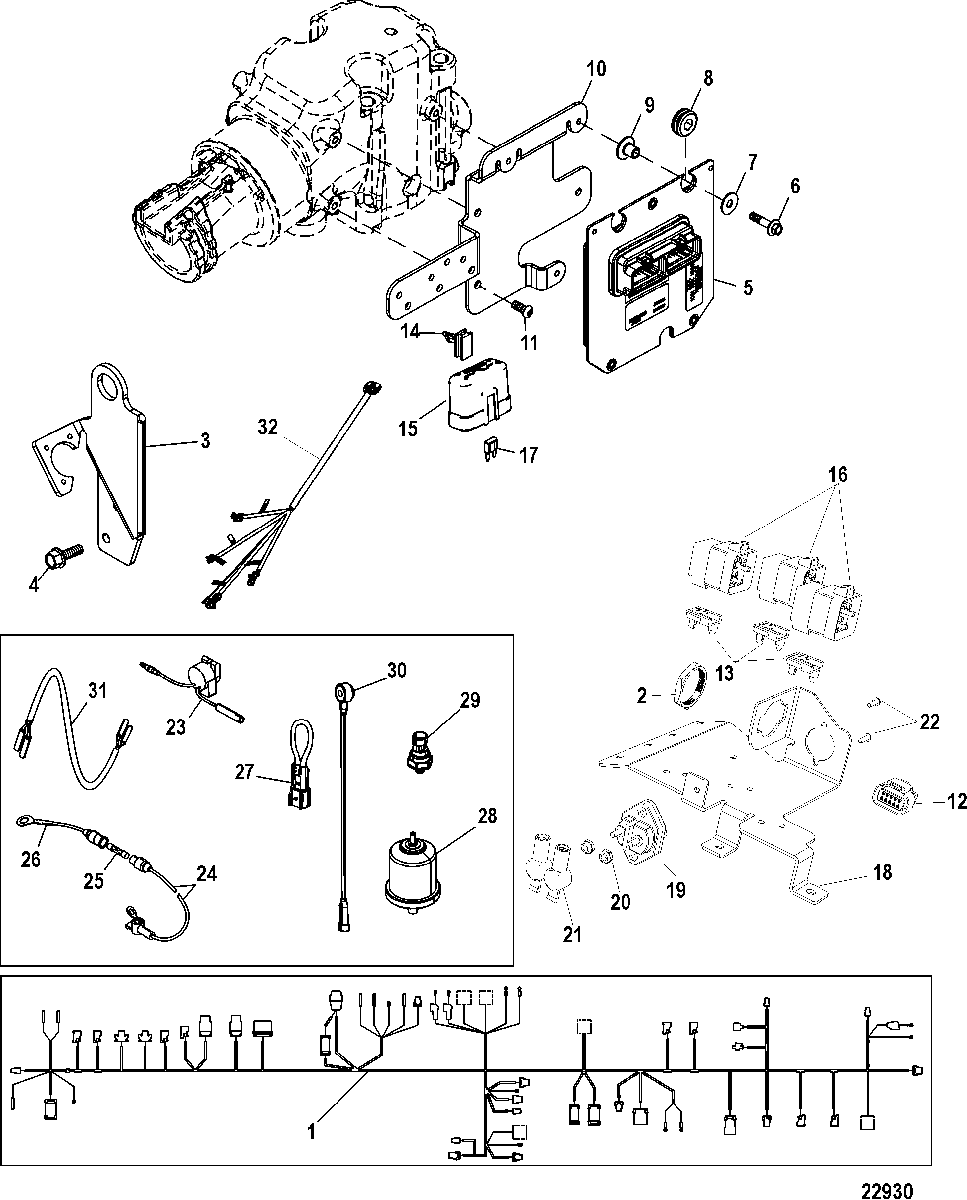

Electrical Components для Mercruiser - 4.3L MPI ALPHA/BRAVO 0W658584 THRU 1A030367

  • №
    Артикул
    Название
  • 1
    84-866332T01 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
  • 3
    865480T BRACKET, Harness Mounting/Lifting Eye
    BRACKET, Harness Mounting/Lifting Eye
  • 4
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 5
    865830T06 ECM, Engine Control Module
    (Alpha-Standard Cooling)
    ECM, Engine Control Module
    (Alpha-Standard Cooling)
  • 5
    865831T06 ECM, Engine Control Module
    (Alpha-Closed Cooling)
    ECM, Engine Control Module
    (Alpha-Closed Cooling)
  • 5
    865832T05 ECM, Engine Control Module
    (Bravo-Standard Cooling)
    ECM, Engine Control Module
    (Bravo-Standard Cooling)
  • 5
    865833T05 ECM, Engine Control Module
    ECM, Engine Control Module
  • 6
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 7
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 8
    25-834985 GROMMET
    GROMMET
  • 9
    23-856954 BUSHING
    BUSHING
  • 10
    863424T BRACKET
    BRACKET
  • 11
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 12
    859318T1 TERMINATOR, 10 Pin (CAN 1 and 2)
    TERMINATOR, 10 Pin (CAN 1 and 2)
  • 13
    86-865205 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 14
    54-804352 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 15
    858754 COVER, Fuse, Fuse
    COVER, Fuse, Fuse
  • 16
    882751 RELAY
    RELAY
  • 17
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 17
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 18
    866345T BRACKET
    BRACKET
  • 19
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 20
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 21
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 22
    10-830861 SCREW, (#8-32 x .625)
    SCREW, (#8-32 x .625)
  • 23
    816492A15 ALARM KIT
    ALARM KIT
  • 24
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
  • 25
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 26
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • 27
    864337A1 CONNECTOR, Black, Bravo Shift Interrupt Jumper
    (Black Wire)
    CONNECTOR, Black, Bravo Shift Interrupt Jumper
    (Black Wire)
  • 28
    8M0068784 SENDER ASSEMBLY, Oil
    SENDER ASSEMBLY, Oil
  • 28
    37293T SENDER ASSEMBLY, Oil
    (Dual Station)
    SENDER ASSEMBLY, Oil
    (Dual Station)
  • 29
    8M6000623 SENSOR, Pressure
    (Power Steering Cooler)(Power Steering Cooler)
    SENSOR, Pressure
    (Power Steering Cooler)(Power Steering Cooler)
  • 29
    881879T11 SENSOR, Pressure (0 - 100 PSI)
    (Oil)
    SENSOR, Pressure (0 - 100 PSI)
    (Oil)
  • 30
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 31
    84-812733A2 HARNESS ASSEMBLY, Extension (Lube Bottle)
    HARNESS ASSEMBLY, Extension (Lube Bottle)
  • 32
    84-865677T02 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
