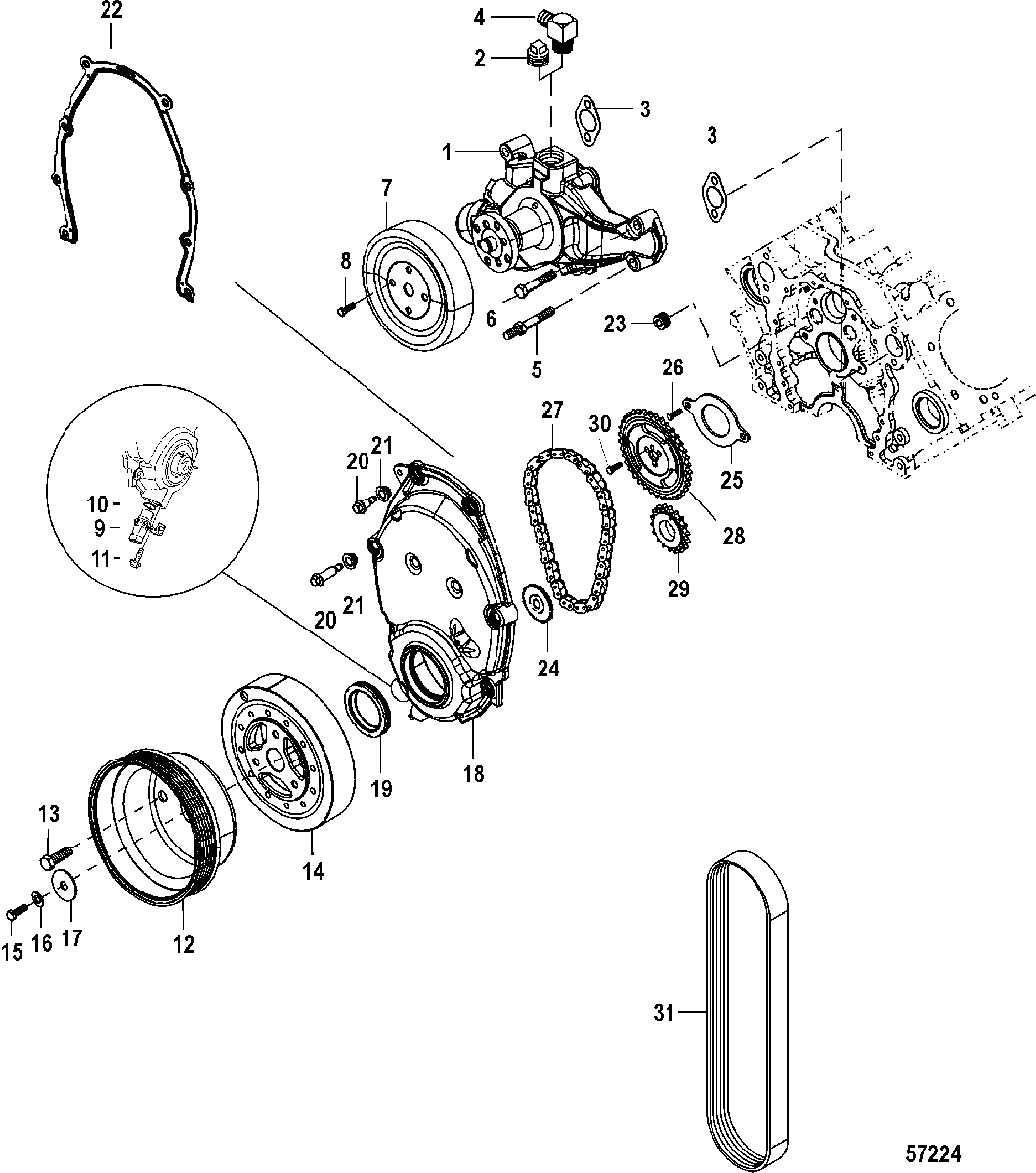

Front Cover and Circulating Pump для Mercruiser - 4.3L MPI ALPHA/BRAVO 0W658583 THRU 0W658583

  • №
    Артикул
    Название
  • 1
    46-8M6005225 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    22-428611 PLUG, Pipe
    (Standard Cooling)
    PLUG, Pipe
    (Standard Cooling)
  • 3
    27-879194367 GASKET, Water Pump
    GASKET, Water Pump
  • 4
    22-860346 FITTING, Elbow (90 Degree) (.750)
    (Closed Cooling)
    FITTING, Elbow (90 Degree) (.750)
    (Closed Cooling)
  • 5
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 6
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 6
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 7
    807729T PULLEY
    PULLEY
  • 8
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 9
    879194363 SENSOR ASSEMBLY, Crankshaft Position
    SENSOR ASSEMBLY, Crankshaft Position
  • 10
    25-885192 O-RING
    O-RING
  • 11
    10-884018001 SCREW
    SCREW
  • 12
    807730T PULLEY, Crankshaft
    PULLEY, Crankshaft
  • 13
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 14
    888776T HARMONIC BALANCER
    HARMONIC BALANCER
  • 15
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 16
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 17
    12-71458 WASHER
    WASHER
  • 18
    879194362 COVER ASSEMBLY, Timing
    COVER ASSEMBLY, Timing
  • 19
    26-8M0071242 SEAL, Oil
    SEAL, Oil
  • 20
    10-879194369 BOLT, Timing Cover
    BOLT, Timing Cover
  • 21
    26-888782 GROMMET, Timing Cover
    GROMMET, Timing Cover
  • 22
    27-8M0069696 GASKET
    GASKET
  • 23
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 24
    879194344 RELUCTOR WHEEL
    RELUCTOR WHEEL
  • 25
    824333 RETAINER, Camshaft
    RETAINER, Camshaft
  • 26
    10-824334 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 27
    8M0050619 TIMING CHAIN SET, Chain and Sprockets
    TIMING CHAIN SET, Chain and Sprockets
  • 28
    NSS NOT SOLD SEPARATE, Camshaft Sprocket
    NOT SOLD SEPARATE, Camshaft Sprocket
  • 29
    NSS NOT SOLD SEPARATE, Crankshaft Sprocket
    NOT SOLD SEPARATE, Crankshaft Sprocket
  • 30
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 31
    57-865615Q04 BELT
    (Alpha-Standard Cooling)(Power Steering)
    BELT
    (Alpha-Standard Cooling)(Power Steering)
  • 31
    57-865615Q09 BELT
    (Alpha-Standard Cooling)(Compact Hydraulic Steering)
    BELT
    (Alpha-Standard Cooling)(Compact Hydraulic Steering)
  • 31
    57-865615Q03 BELT
    (Alpha-Closed Cooling)(Bravo)(Power Steering)
    BELT
    (Alpha-Closed Cooling)(Bravo)(Power Steering)
  • 31
    57-865615Q08 BELT
    (Alpha-Closed Cooling)(Bravo)(Compact Hydraulic Steering)
    BELT
    (Alpha-Closed Cooling)(Bravo)(Compact Hydraulic Steering)
  • -
    27-807756A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    879150A31 LONG BLOCK (4.3L)
    LONG BLOCK (4.3L)
