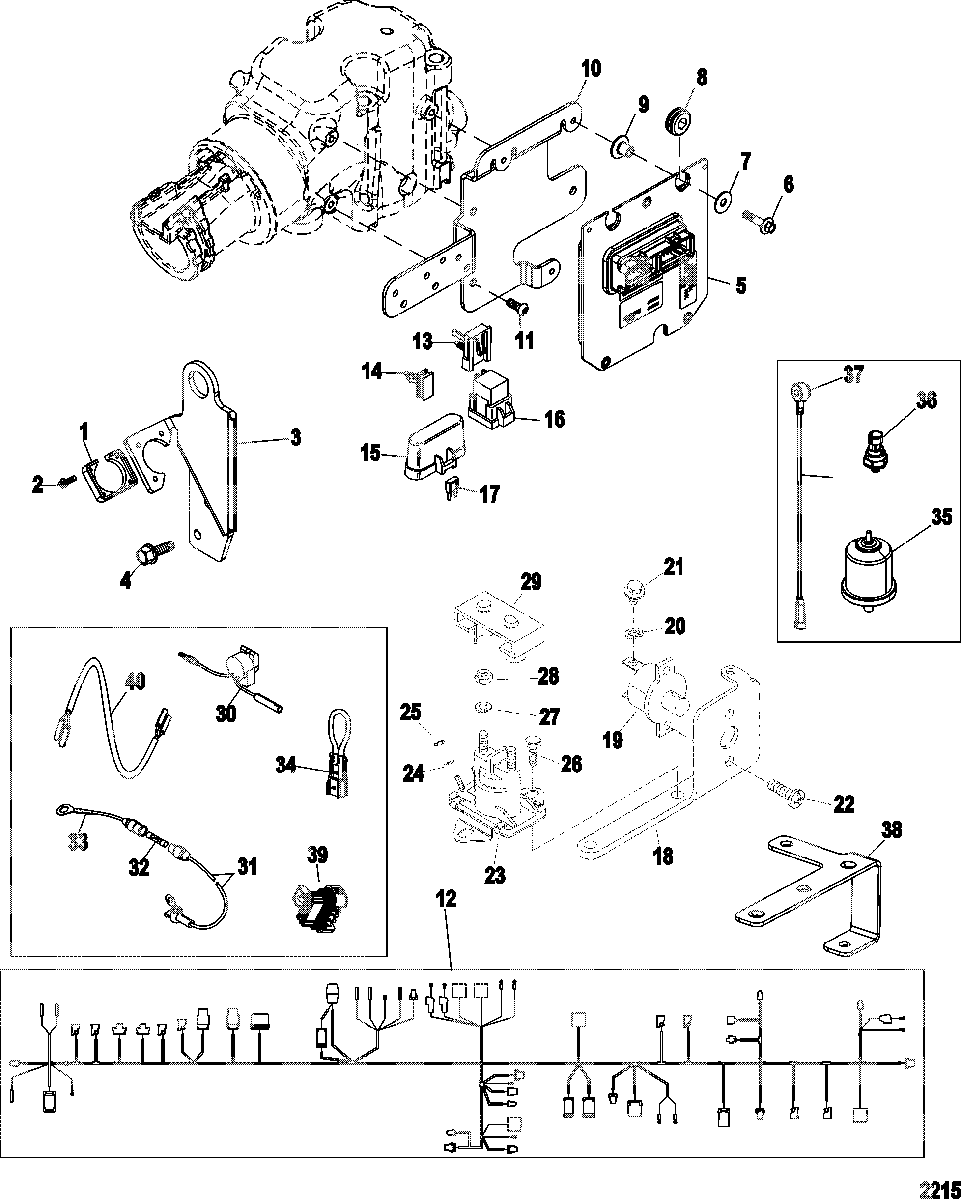

Electrical Components для Mercruiser - 4.3L MPI ALPHA/BRAVO 0W310000 THRU 0W649999
-
№АртикулНазвание
-
126079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
210-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
3865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
410-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
5865830T07 ECM, Engine Control Module
(Alpha-Standard Cooling)ECM, Engine Control Module
(Alpha-Standard Cooling) -
5865831T07 ECM, Engine Control Module
(Alpha-Closed Cooling)ECM, Engine Control Module
(Alpha-Closed Cooling) -
5865832T06 ECM, Engine Control Module
(Bravo-Standard Cooling)ECM, Engine Control Module
(Bravo-Standard Cooling) -
5865833T06 ECM, Engine Control Module
(Bravo-Closed Cooling)ECM, Engine Control Module
(Bravo-Closed Cooling) -
610-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
712-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
825-834985 GROMMETGROMMET
-
923-856954 BUSHINGBUSHING
-
10863424T BRACKETBRACKET
-
1110-860008 SCREW, (.250-20 x .625) TorxSCREW, (.250-20 x .625) Torx
-
1284-865456A01 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1386-865205 CLIP, Relay MountingCLIP, Relay Mounting
-
1454-804352 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
15883562 COVER, FuseCOVER, Fuse
-
1686-865202T RELAYRELAY
-
1788-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
18899719T01 BRACKET, Electrical, MountingBRACKET, Electrical, Mounting
-
1988-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2110-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
2210-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
2389-96158T SOLENOID, StarterSOLENOID, Starter
-
2413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2610-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2811-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2985-97861 INSULATOR, Starter SolenoidINSULATOR, Starter Solenoid
-
30816492A15 ALARM KITALARM KIT
-
3184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple StripCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
-
3288-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
3384-95084A10 CABLE ASSEMBLY, (5.00 Inches) RedCABLE ASSEMBLY, (5.00 Inches) Red
-
34864337A1 CONNECTOR, Black, Bravo Shift Interrupt Jumper
(Black Wire)CONNECTOR, Black, Bravo Shift Interrupt Jumper
(Black Wire) -
358M0068784 SENDER ASSEMBLY, OilSENDER ASSEMBLY, Oil
-
3537293T SENDER ASSEMBLY, Oil
(Dual Station)SENDER ASSEMBLY, Oil
(Dual Station) -
368M6000623 SENSOR, Pressure
(Power Steering Cooler)SENSOR, Pressure
(Power Steering Cooler) -
36881879T11 SENSOR, Pressure (0 - 100 PSI)
(Oil)SENSOR, Pressure (0 - 100 PSI)
(Oil) -
378M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
38863711 BRACKET, Circuit BreakerBRACKET, Circuit Breaker
-
398M3000055 CAP, Weather Proof (10 Pin Transom Harness)CAP, Weather Proof (10 Pin Transom Harness)
-
4084-812733A2 HARNESS ASSEMBLY, Extension (Lube Bottle)HARNESS ASSEMBLY, Extension (Lube Bottle)
