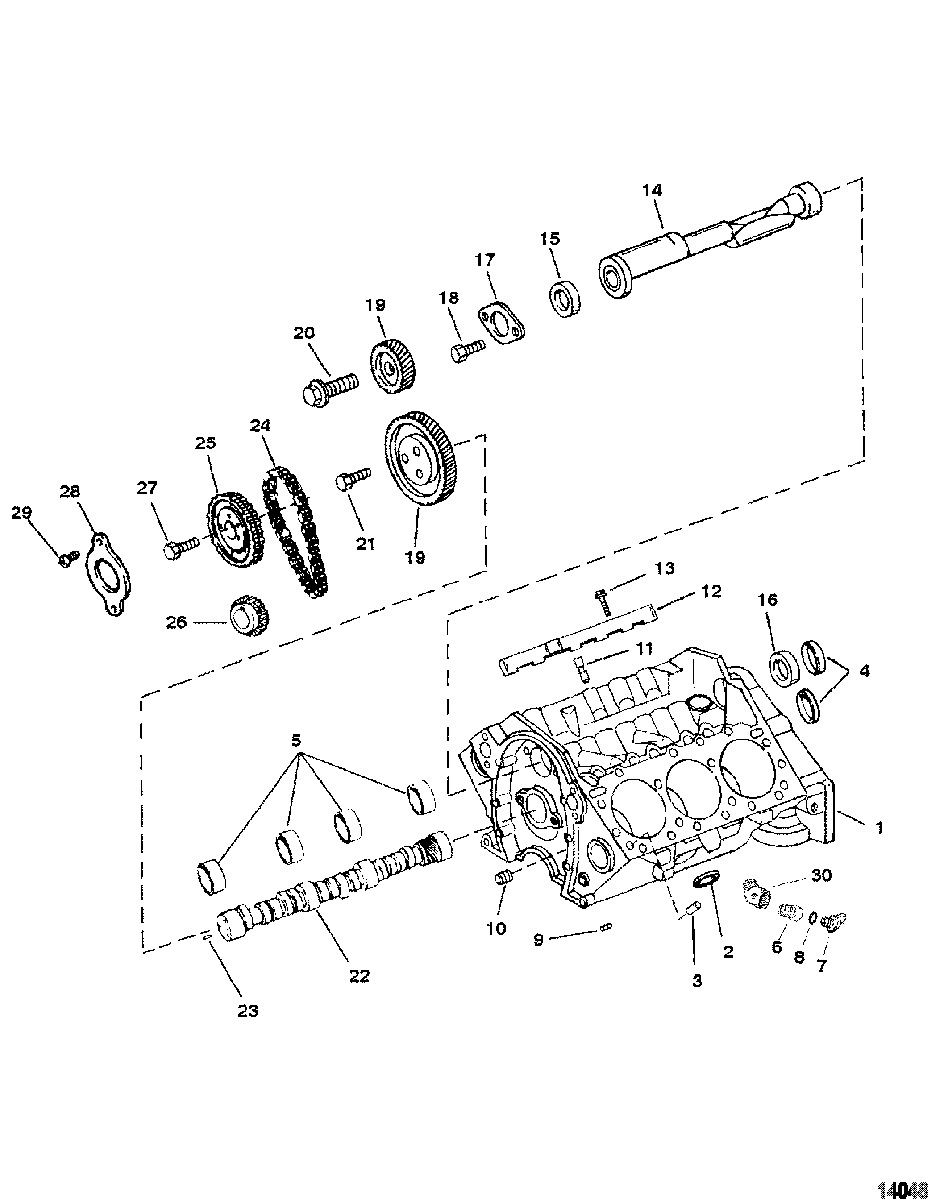

Cylinder Block And Camshaft для Mercruiser - 4.3L (GEN +) (4BBL) Reman 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block
    (Order Long Block 807736R 5)
    NOT SOLD SEPARATE, Cylinder Block
    (Order Long Block 807736R 5)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 3
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 4
    22-72640 PLUG
    PLUG
  • 5
    23-802999 BEARING SET
    BEARING SET
  • 6
    22-860088 BUSHING
    BUSHING
  • 7
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 8
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
  • 9
    22-878050 VALVE
    VALVE
  • 10
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 11
    8118441 LIFTER, Roller
    LIFTER, Roller
  • 12
    8243311 RETAINER, Lifter
    RETAINER, Lifter
  • 13
    NSS NOT SOLD SEPARATE, Screw (.312-18x.625)
    NOT SOLD SEPARATE, Screw (.312-18x.625)
  • 14
    8241481 BALANCED SHAFT
    BALANCED SHAFT
  • 15
    NSS NOT SOLD SEPARATE, Bearing-Ball (Front)
    NOT SOLD SEPARATE, Bearing-Ball (Front)
  • 16
    31-824150 BEARING, Needle, Rear
    BEARING, Needle, Rear
  • 17
    824153 RETAINER, Balance Shaft
    RETAINER, Balance Shaft
  • 18
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 19
    43-8241511 GEAR KIT
    GEAR KIT
  • 20
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 21
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 22
    431-803186 CAMSHAFT
    CAMSHAFT
  • 23
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 24
    17161T CHAIN, Timing
    (Use With Arm/Ball Kit - 824335T)
    CHAIN, Timing
    (Use With Arm/Ball Kit - 824335T)
  • 25
    883494 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 26
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 27
    NSS NOT SOLD SEPARATE, Screw (.312-18x.750)
    NOT SOLD SEPARATE, Screw (.312-18x.750)
  • 28
    824333 RETAINER, Camshaft
    RETAINER, Camshaft
  • 29
    10-824334 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 30
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • -
    807736R50 LONG BLOCK ASSEMBLY
    LONG BLOCK ASSEMBLY
  • -
    27-824326A02 GASKET SET
    GASKET SET
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND
    SEALING COMPOUND
