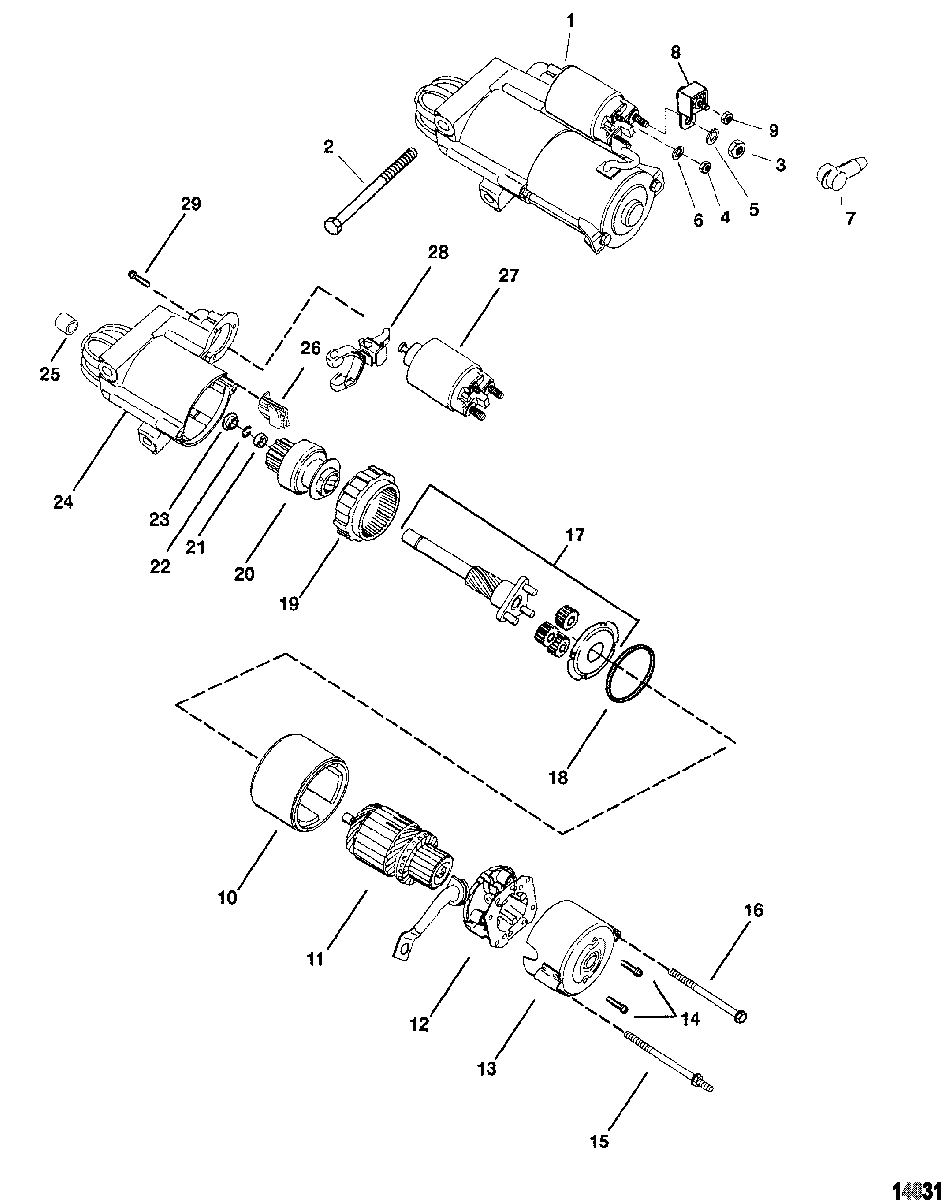

Starter Motor для Mercruiser - 4.3L (GEN +) (2 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    (PG 260-F1)
    STARTER MOTOR ASSEMBLY
    (PG 260-F1)
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    (G-Series) (Serviceable Solenoid Only-See #27)
    STARTER MOTOR ASSEMBLY
    (G-Series) (Serviceable Solenoid Only-See #27)
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 2
    10-861788 SCREW, (M10 x 1.5), Metric
    SN# 0L320000 & Up
    SCREW, (M10 x 1.5), Metric
    SN# 0L320000 & Up
  • 3
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 4
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 5
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 8
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    (All Models) SN# 0L619000 & Up
    FUSE ASSEMBLY, 90 Ampere
    (All Models) SN# 0L619000 & Up
  • 9
    11-8267119 NUT, (.250-28)
    (All Models) SN# 0L619000 & Up
    NUT, (.250-28)
    (All Models) SN# 0L619000 & Up
  • 10
    NSS NOT SOLD SEPARATE, Field And Frame
    NOT SOLD SEPARATE, Field And Frame
  • 11
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 12
    NSS NOT SOLD SEPARATE, Brush Holder And Spring
    NOT SOLD SEPARATE, Brush Holder And Spring
  • 13
    NSS NOT SOLD SEPARATE, Frame
    NOT SOLD SEPARATE, Frame
  • 14
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 15
    16-803004 THRU BOLT
    THRU BOLT
  • 16
    10-803005 THRU BOLT
    THRU BOLT
  • 17
    NSS NOT SOLD SEPARATE, Shaft And Gear
    NOT SOLD SEPARATE, Shaft And Gear
  • 18
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 19
    NSS NOT SOLD SEPARATE, Gear
    NOT SOLD SEPARATE, Gear
  • 20
    803003 DRIVE
    DRIVE
  • 21
    33291 COLLAR
    COLLAR
  • 22
    53-33290 RING, Retaining
    RING, Retaining
  • 23
    NSS NOT SOLD SEPARATE, Collar - Thrust
    NOT SOLD SEPARATE, Collar - Thrust
  • 24
    803001T HOUSING, Drive
    HOUSING, Drive
  • 25
    23-814476 BUSHING
    BUSHING
  • 26
    NSS NOT SOLD SEPARATE, Grommet
    NOT SOLD SEPARATE, Grommet
  • 27
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 28
    NSS NOT SOLD SEPARATE, Lever
    NOT SOLD SEPARATE, Lever
  • 29
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
