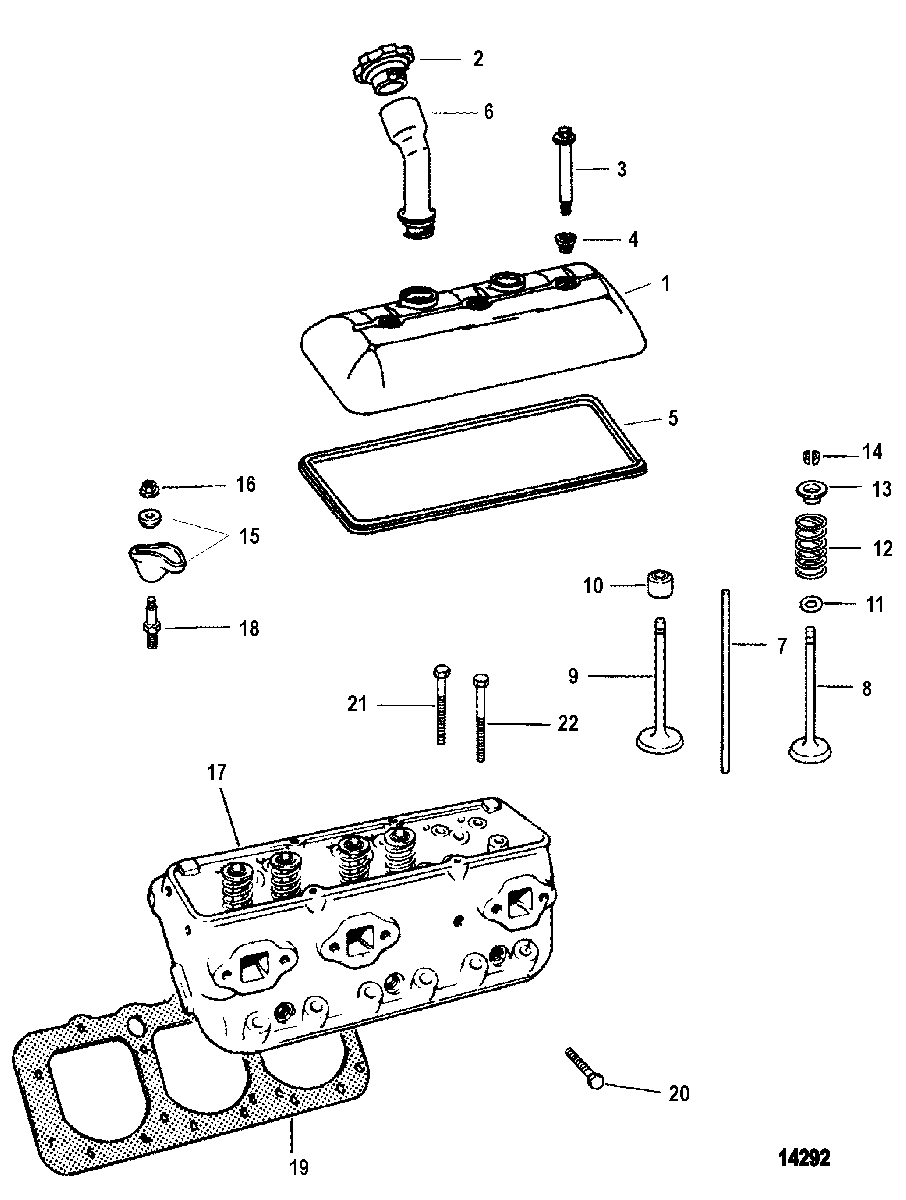

Cylinder Head and Rocker Cover для Mercruiser - 4.3L EFI (GEN+) TBI GM 262 V-6 0L012009 THRU 0L618999

  • №
    Артикул
    Название
  • 1
    827149 COVER, Rocker
    Without oil fill opening
    COVER, Rocker
    Without oil fill opening
  • 1
    827150 COVER, Rocker
    With oil fill opening
    COVER, Rocker
    With oil fill opening
  • 2
    36-827151 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-827153 SCREW
    SCREW
  • 4
    25-827155 O-RING
    O-RING
  • 5
    27-827154 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 6
    806754T TUBE, Oil Fill
    TUBE, Oil Fill
  • 7
    173391 PUSH ROD
    PUSH ROD
  • 8
    8243171 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 8
    8243181 VALVE, Exhaust
    (.030 O.S.)
    VALVE, Exhaust
    (.030 O.S.)
  • 9
    809992 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 10
    34518001 SHIELD
    SHIELD
  • 11
    26-8M0050563 SEAL
    (Intake)
    SEAL
    (Intake)
  • 11
    26-34217 SEAL
    (Exhaust)
    SEAL
    (Exhaust)
  • 12
    24-483471 SPRING
    SPRING
  • 13
    483481 CAP
    CAP
  • 14
    28-547971 KEY
    KEY
  • 15
    824335T ROCKER ARM AND BALL KIT
    ROCKER ARM AND BALL KIT
  • 16
    11-801883 NUT
    NUT
  • 17
    938-827178R1 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 18
    16-8018821 STUD
    STUD
  • 19
    27-879150140 GASKET
    GASKET
  • 20
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 21
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 22
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
