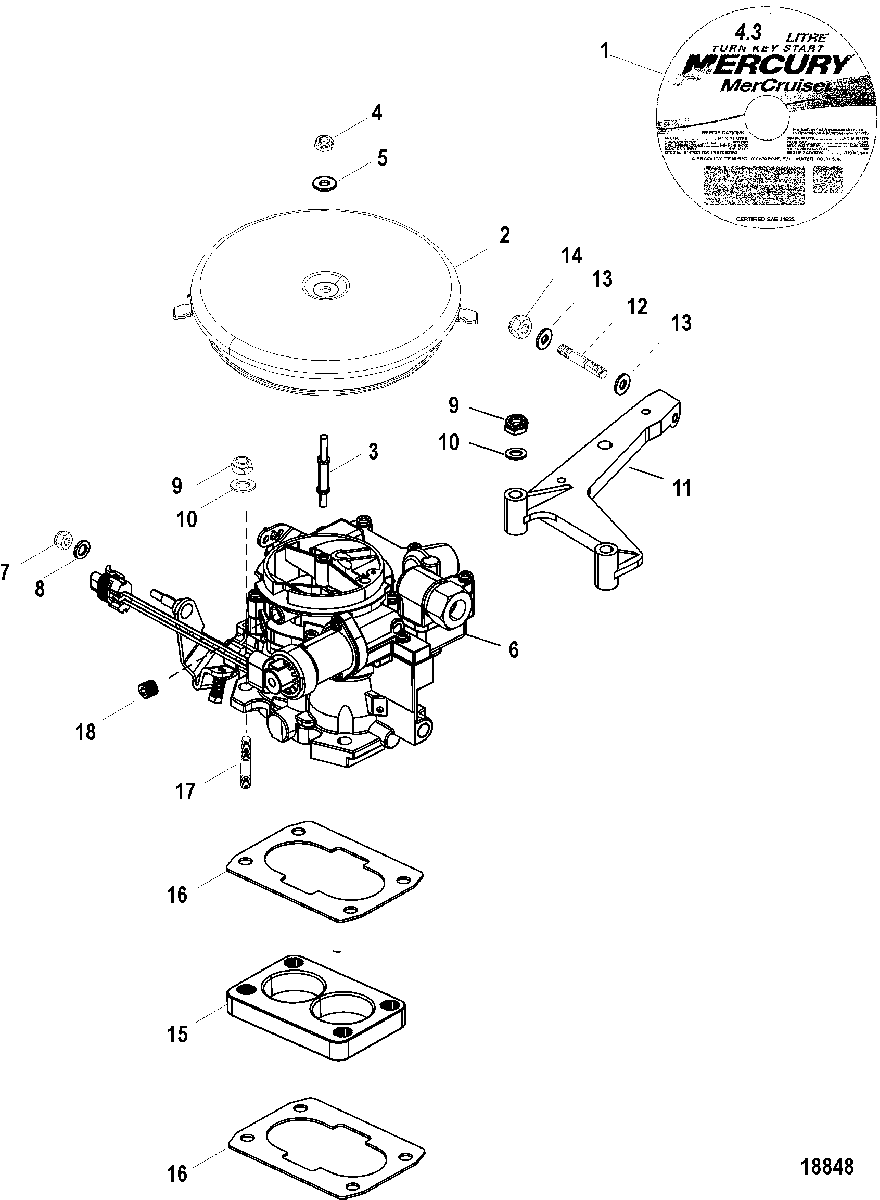

Carburetor and Throttle Linkage для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W310000 THRU 0W649999

  • №
    Артикул
    Название
  • 1
    37-8M2018265 DECAL, Carburetor Cover
    DECAL, Carburetor Cover
  • 2
    863200 FLAME ARRESTOR
    FLAME ARRESTOR
  • 3
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 4
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 5
    12-86400 WASHER
    WASHER
  • 6
    3310-8M0084194 CARBURETOR
    CARBURETOR
  • 7
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 9
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 10
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 11
    805489T BRACKET
    BRACKET
  • 12
    16-38525 STUD
    STUD
  • 13
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 14
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 15
    807726A2 ADAPTOR
    ADAPTOR
  • 16
    27-866027 GASKET
    GASKET
  • 17
    16-807849 STUD, (.312-18/.312-24 x 3.380)
    STUD, (.312-18/.312-24 x 3.380)
  • 17
    16-65868 STUD, (.312-18/.312-24 x 2.120)
    STUD, (.312-18/.312-24 x 2.120)
  • 18
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
