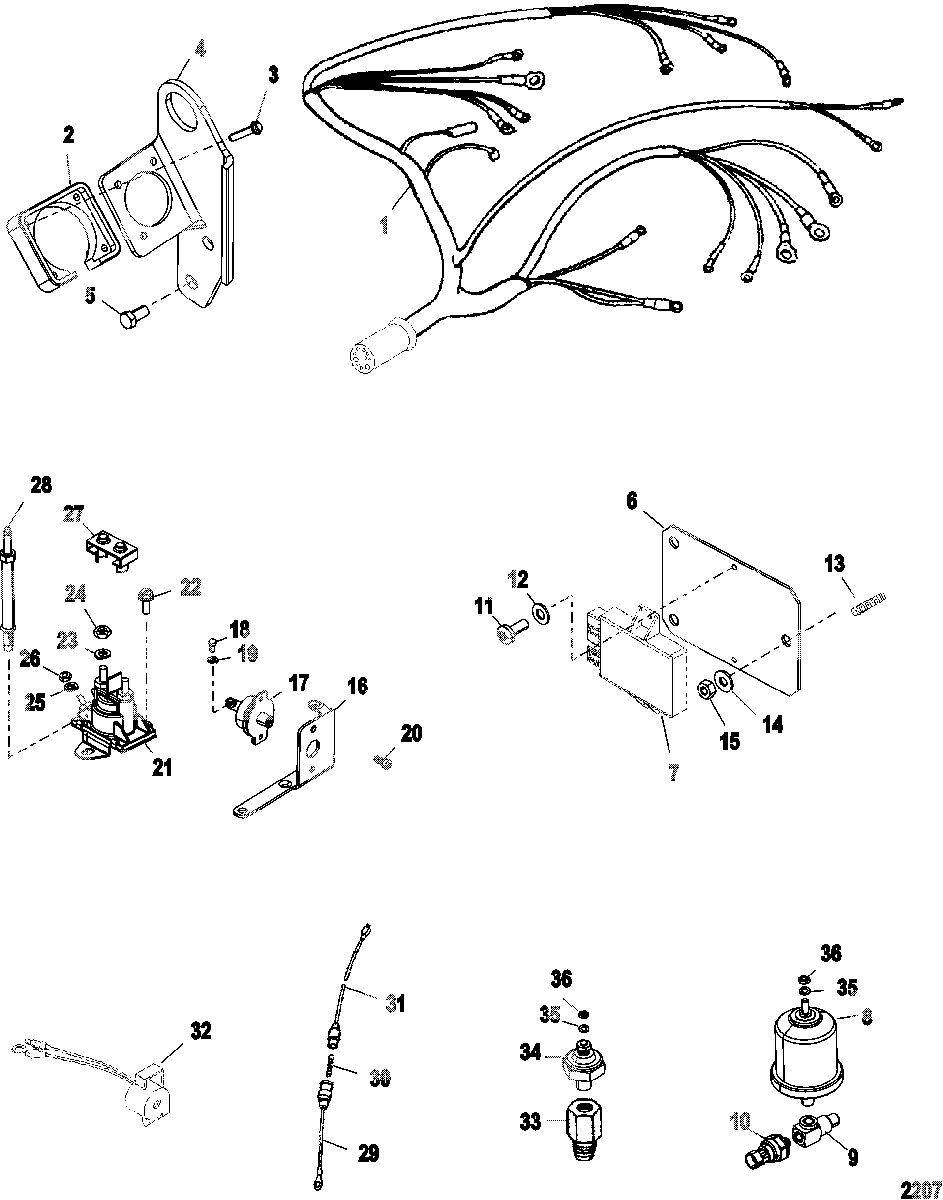

Electrical Components для Mercruiser - 4.3L CARB ALPHA/BRAVO 0M615000 THRU 0W300012

  • №
    Артикул
    Название
  • 1
    84-862163T02 HARNESS ASSEMBLY, Wiring
    HARNESS ASSEMBLY, Wiring
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    865480T BRACKET, Harness Mounting/Lifting Eye
    BRACKET, Harness Mounting/Lifting Eye
  • 5
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 6
    861516 BRACKET
    BRACKET
  • 7
    861251T1 ICM MODULE, Ignition Control Module
    (Alpha)
    ICM MODULE, Ignition Control Module
    (Alpha)
  • 7
    861252T1 ICM MODULE, Ignition Control Module
    (Bravo)
    ICM MODULE, Ignition Control Module
    (Bravo)
  • 8
    8M0068784 SENDER ASSEMBLY, Oil
    SENDER ASSEMBLY, Oil
  • 8
    37293T SENDER ASSEMBLY, Oil
    (Dual Station)
    SENDER ASSEMBLY, Oil
    (Dual Station)
  • 9
    22-864669 FITTING
    FITTING
  • 10
    87-8M0070108 SWITCH, Oil Pressure
    SWITCH, Oil Pressure
  • 11
    10-861520 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 12
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 13
    10-24323 SET SCREW, (.250-20 x 1.25) (.25-20 X 1.25)
    SET SCREW, (.250-20 x 1.25) (.25-20 X 1.25)
  • 14
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 15
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 16
    899719T01 BRACKET, Electrical, Mounting
    BRACKET, Electrical, Mounting
  • 17
    88-11178A01 BREAKER, Circuit - 50 Ampere, Circuit
    BREAKER, Circuit - 50 Ampere, Circuit
  • 18
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 21
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 22
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 23
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 24
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 25
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 26
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 27
    85-97861 INSULATOR, Starter Solenoid
    INSULATOR, Starter Solenoid
  • 28
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 29
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    (Bravo)
    CABLE ASSEMBLY, (5.00 Inches) Red
    (Bravo)
  • 30
    88-79091 FUSE, 20 Ampere
    (Bravo)
    FUSE, 20 Ampere
    (Bravo)
  • 31
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    (Bravo)
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    (Bravo)
  • 32
    816492A6 ALARM KIT
    ALARM KIT
  • 33
    22-32974 FITTING, (.125-27) Adaptor
    FITTING, (.125-27) Adaptor
  • 34
    87-805605A1 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 35
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 36
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
