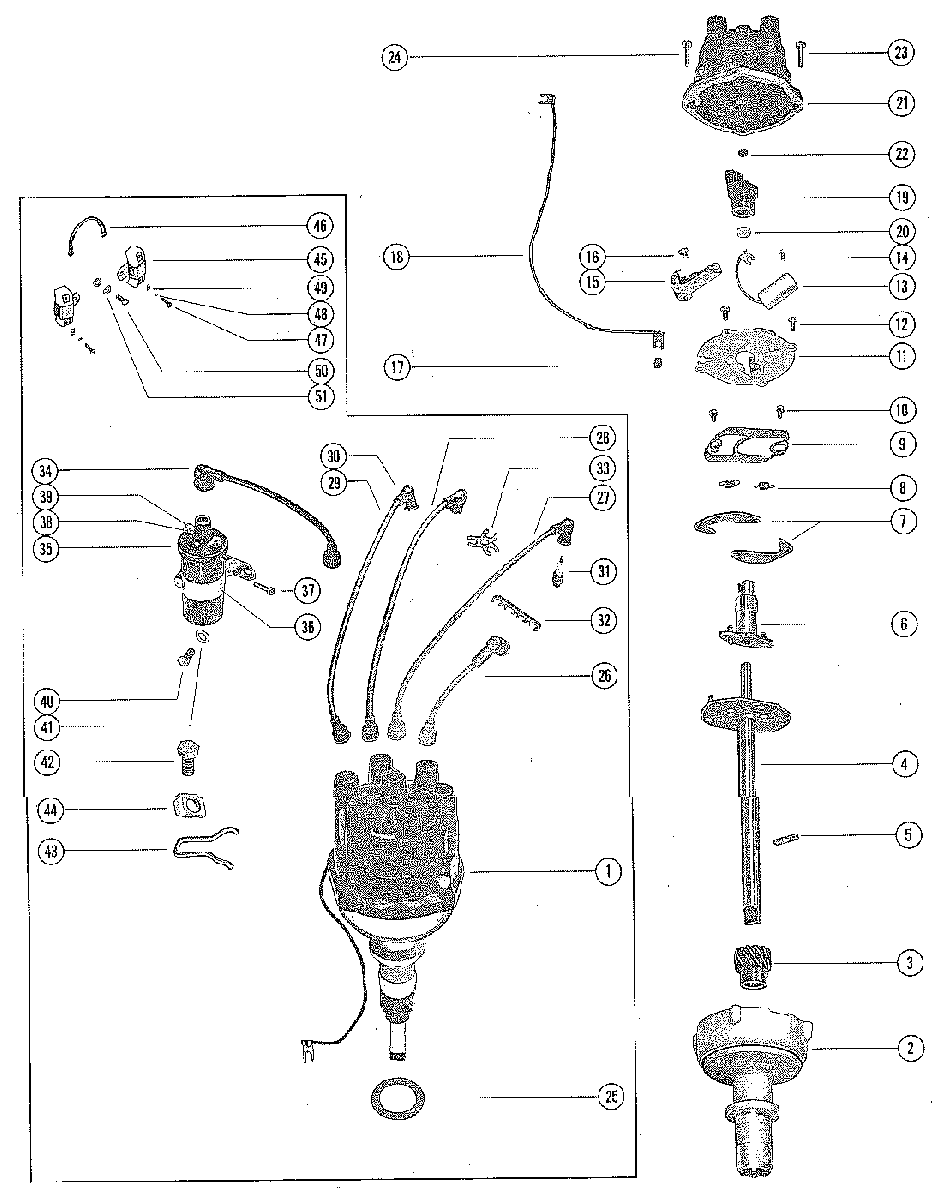

DISTRIBUTOR ASSEMBLY AND COIL для Mercruiser - 200 GM 292 I/L6 1969 2453769 THRU 2712072
-
№АртикулНазвание
-
1811192 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
233668 HOUSING, PRIMARY - DISTRIBUTORHOUSING, PRIMARY - DISTRIBUTOR
-
343-33664 GEAR, DRIVE - MAIN SHAFTGEAR, DRIVE - MAIN SHAFT
-
452278 MAIN SHAFT AND WEIGHT PLATEMAIN SHAFT AND WEIGHT PLATE
-
517-33649 PIN, DRIVE GEAR TO MAIN SHAFTPIN, DRIVE GEAR TO MAIN SHAFT
-
652279 CAM, BREAKER - ADVANCECAM, BREAKER - ADVANCE
-
633653 FELT, BREAKER CAM LUBRICATORFELT, BREAKER CAM LUBRICATOR
-
633670 RETAINER, BREAKER CAM ADVANCERETAINER, BREAKER CAM ADVANCE
-
733651 WEIGHT, BREAKER CAM ADVANCEWEIGHT, BREAKER CAM ADVANCE
-
824-52280 SPRING, BREAKER CAM ADVANCE WEIGHTSPRING, BREAKER CAM ADVANCE WEIGHT
-
933655 PLATE, WEIGHT HOLD DOWNPLATE, WEIGHT HOLD DOWN
-
1010-33722 SCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATESCREW, WEIGHT HOLD DOWN PLATE TO WEIGHT PLATE
-
1133665 PLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSERPLATE, MOUNTING - BREAKER ASSEMBLY AND CONDENSER
-
1210-20650 SCREW, MOUNTING PLATE TO PRIMARY HOUSING (3/8")SCREW, MOUNTING PLATE TO PRIMARY HOUSING (3/8")
-
138M6001218 CONDENSERCONDENSER
-
1348024 BRACKET, CONDENSER MOUNTINGBRACKET, CONDENSER MOUNTING
-
1410-48021 SCREW, CONDENSER BRACKET ATTACHINGSCREW, CONDENSER BRACKET ATTACHING
-
1534235T BREAKER ASSEMBLY, DISTRIBUTORBREAKER ASSEMBLY, DISTRIBUTOR
-
1610-33650 SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE (5/32")SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE (5/32")
-
1725-33666 GROMMENT, MOUNTING PLATE - PRIMARY WIREGROMMENT, MOUNTING PLATE - PRIMARY WIRE
-
1833658 LEAD, PRIMARYLEAD, PRIMARY
-
198M6001251 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
2012-36275 WASHER, ROTORWASHER, ROTOR
-
2133765T CAP, DISTRIBUTORCAP, DISTRIBUTOR
-
2233654 BUTTON, CARBON - DISTRIBUTOR CAPBUTTON, CARBON - DISTRIBUTOR CAP
-
2310-33660 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
-
2410-33663 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
-
2527-344863 GASKET, DISTRIBUTORGASKET, DISTRIBUTOR
-
2684-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6 1/4")LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (6 1/4")
-
2784-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (14 1/4")LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (14 1/4")
-
2884-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (20 3/4")LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (20 3/4")
-
2984-815297A39 LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (22")LEAD ASSEMBLY, HIGH TENSION - DISTRIBUTOR (22")
-
3085-63709A1 PROTECTOR, HIGH TENSION LEADPROTECTOR, HIGH TENSION LEAD
-
3085-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
3133-8134711 SPARK PLUG (AC#CR-44N)SPARK PLUG (AC#CR-44N)
-
3232784 RETAINER, HIGH TENSION LEADSRETAINER, HIGH TENSION LEADS
-
3332783 RETAINER, HIGH TENSION LEADSRETAINER, HIGH TENSION LEADS
-
3484-815297A44 WIRE ASSEMBLY, DISTRIBUTOR TO COIL (8 1/4")WIRE ASSEMBLY, DISTRIBUTOR TO COIL (8 1/4")
-
35898253T24 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
3633321 BRACKET, IGNITION COIL MOUNTINGBRACKET, IGNITION COIL MOUNTING
-
3710-33311 SCREW, MOUNTING BRACKET TO IGNITION COILSCREW, MOUNTING BRACKET TO IGNITION COIL
-
3812-30164 WASHER, IGNITION COIL TERMINALWASHER, IGNITION COIL TERMINAL
-
3813-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
3911-68219 NUT, IGNITION TERMINALNUT, IGNITION TERMINAL
-
4010-98261 SCREW, IGNITION COIL TO CYLINDER BLOCK (3/4")SCREW, IGNITION COIL TO CYLINDER BLOCK (3/4")
-
4112-20553 WASHER, IGNITION COIL SCREWWASHER, IGNITION COIL SCREW
-
4210-11976 SCREW, DISTRIBUTOR TO CYLINDER BLOCK (1")SCREW, DISTRIBUTOR TO CYLINDER BLOCK (1")
-
4372624 CLAMP UNIT, DISTRIBUTORCLAMP UNIT, DISTRIBUTOR
-
4434549 RETAINER, DISTRIBUTOR CLAMP UNITRETAINER, DISTRIBUTOR CLAMP UNIT
-
45393-1286 BALLASTBALLAST
-
4633210 JUMPER WIRE, BALLAST TO BALLASTJUMPER WIRE, BALLAST TO BALLAST
-
4710-46718 SCREW, WIRING HARNESS LEADS TO BALLAST (3/4")SCREW, WIRING HARNESS LEADS TO BALLAST (3/4")
-
4813-26995 LOCKWASHER, WIRING HARNESS LEADS SCREWLOCKWASHER, WIRING HARNESS LEADS SCREW
-
4912-30191 WASHER, WIRING HARNESS LEADS SCREWWASHER, WIRING HARNESS LEADS SCREW
-
5010-98253 SCREW, BALLAST TO FLYWHEEL HOUSING (1/2")
SERIAL 00000000-02494935SCREW, BALLAST TO FLYWHEEL HOUSING (1/2")
SERIAL 00000000-02494935 -
5010-65746 SCREW, BALLAST TO FLYWHEEL HOUSING (3/4")
SERIAL 02494936-09999999SCREW, BALLAST TO FLYWHEEL HOUSING (3/4")
SERIAL 02494936-09999999 -
5112-26907 WASHER, BALLAST SCREWWASHER, BALLAST SCREW
