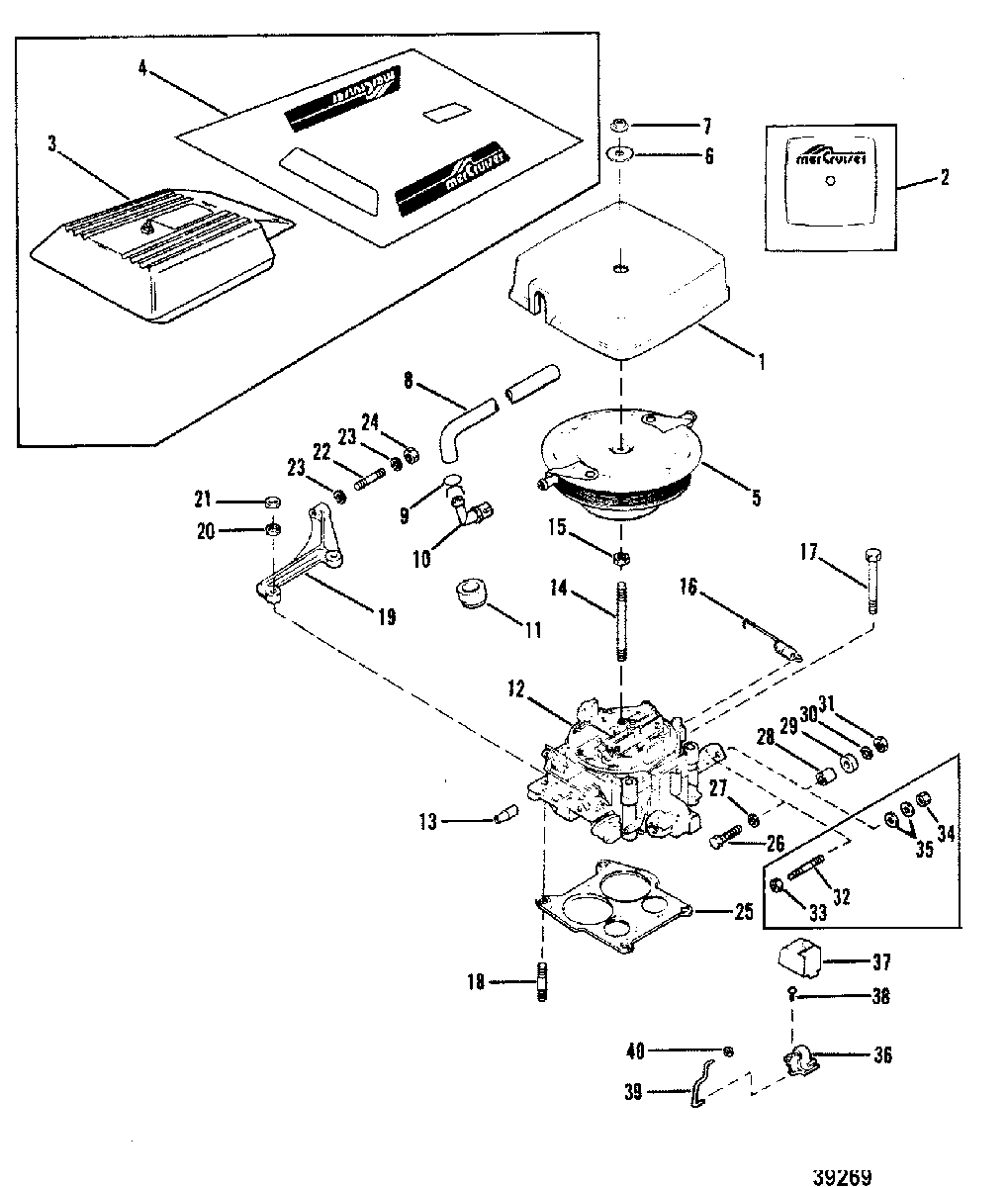

CARBURETOR AND THROTTLE LINKAGE(205 - 4.3L/LX) для Mercruiser - 175 (2 BBL.) GM 262 V-6 1987 0B527955 THRU 0B773242
-
№АртикулНазвание
-
115414A7 COVER, CARBURETOR
OLD DESIGNCOVER, CARBURETOR
OLD DESIGN -
237-1372310 DECAL, CARBURETOR COVER
2O5 ALPHA ONE - OLD DESIGNDECAL, CARBURETOR COVER
2O5 ALPHA ONE - OLD DESIGN -
237-1372332 DECAL, CARBURETOR COVER
4.3L/LX - OLD DESIGNDECAL, CARBURETOR COVER
4.3L/LX - OLD DESIGN -
318484A3 COVER, CARBURETORCOVER, CARBURETOR
-
437-812776A2 DECAL SET, COVERDECAL SET, COVER
-
5805298A1 ARRESTOR ASSEMBLY, Flame, CARBURETORARRESTOR ASSEMBLY, Flame, CARBURETOR
-
612-86400 WASHER, SEALINGWASHER, SEALING
-
711-826709109 NUT, (.250-28), SILENCER ADAPTERNUT, (.250-28), SILENCER ADAPTER
-
832-8M0062669 HOSE (11-1/4")HOSE (11-1/4")
-
832-8M0086022 HOSE, Breather (CORRUGATED)HOSE, Breather (CORRUGATED)
-
954-53101 CLAMP, VENT HOSECLAMP, VENT HOSE
-
1097850T ELBOW, 90 Degree, Breather - VENT HOSE TO ROCKER COVERELBOW, 90 Degree, Breather - VENT HOSE TO ROCKER COVER
-
1123-8M0071559 GROMMET, ROCKER COVERGROMMET, ROCKER COVER
-
121347-804623R02 CARBURETOR ASSEMBLY (ROCHESTER)CARBURETOR ASSEMBLY (ROCHESTER)
-
1322-97282 CONNECTOR, CARBURETORCONNECTOR, CARBURETOR
-
1416-91842 STUD, FLAME ARRESTORSTUD, FLAME ARRESTOR
-
1511-8267139 NUT, JAM - FLAME ARRESTORNUT, JAM - FLAME ARRESTOR
-
1624-897454 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
1710-74822 SCREW, (.312-18 x 3.500), CARBURETORSCREW, (.312-18 x 3.500), CARBURETOR
-
1816-46857 STUD, (5/16 x 1-7/8), CARBURETORSTUD, (5/16 x 1-7/8), CARBURETOR
-
19805359A02 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
2012-20084 WASHER, (.328 x .562 x .062), THROTTLE CABLEWASHER, (.328 x .562 x .062), THROTTLE CABLE
-
2111-29250 NUT, (.312-24), CARBURETOR STUDNUT, (.312-24), CARBURETOR STUD
-
2216-38525 STUD, THROTTLE CABLESTUD, THROTTLE CABLE
-
2312-24664 WASHER, (M4 x 20), THROTTLE CABLE STUDWASHER, (M4 x 20), THROTTLE CABLE STUD
-
2411-826709109 NUT, (.250-28), THROTTLE CABLE STUDNUT, (.250-28), THROTTLE CABLE STUD
-
2527-524572 GASKET, CARBURETOR TO INTAKE MANIFOLDGASKET, CARBURETOR TO INTAKE MANIFOLD
-
2610-98509 SCREW, THROTTLE CABLE (1-1/8")
OLD DESIGNSCREW, THROTTLE CABLE (1-1/8")
OLD DESIGN -
2712-847883 WASHER, THROTTLE CABLE SCREW
OLD DESIGNWASHER, THROTTLE CABLE SCREW
OLD DESIGN -
2823-57938 BUSHING, THROTTLE CABLE SCREW
OLD DESIGNBUSHING, THROTTLE CABLE SCREW
OLD DESIGN -
2923-34948 SPACER, THROTTLE CABLE SCREW
OLD DESIGNSPACER, THROTTLE CABLE SCREW
OLD DESIGN -
3012-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
OLD DESIGNWASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
OLD DESIGN -
3111-8267086 NUT, (#10-32), THROTTLE CABLE SCREW
OLD DESIGNNUT, (#10-32), THROTTLE CABLE SCREW
OLD DESIGN -
3216-8M0113178 STUD, (.250-28 x 2.00)
NEW DESIGNSTUD, (.250-28 x 2.00)
NEW DESIGN -
3311-826709109 NUT, (.250-28), THROTTLE CABLE STUD
NEW DESIGNNUT, (.250-28), THROTTLE CABLE STUD
NEW DESIGN -
3411-8267089 NUT, (.250-28), THROTTLE CABLE STUD
NEW DESIGNNUT, (.250-28), THROTTLE CABLE STUD
NEW DESIGN -
3512-29245 WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
NEW DESIGNWASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
NEW DESIGN -
3671464A01 CHOKE, AUTOMATIC - CARBURETORCHOKE, AUTOMATIC - CARBURETOR
-
3763922 COVER, AUTOMATIC CHOKECOVER, AUTOMATIC CHOKE
-
3810-69235 SCREW, (5/8), AUTOMATIC CHOKE THERMOSTATSCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
-
3961112 ROD, CHOKEROD, CHOKE
-
4054-59989 CLIP, AUTOMATIC CHOKE RODCLIP, AUTOMATIC CHOKE ROD
-
-27-11977A92 GASKET SETGASKET SET
