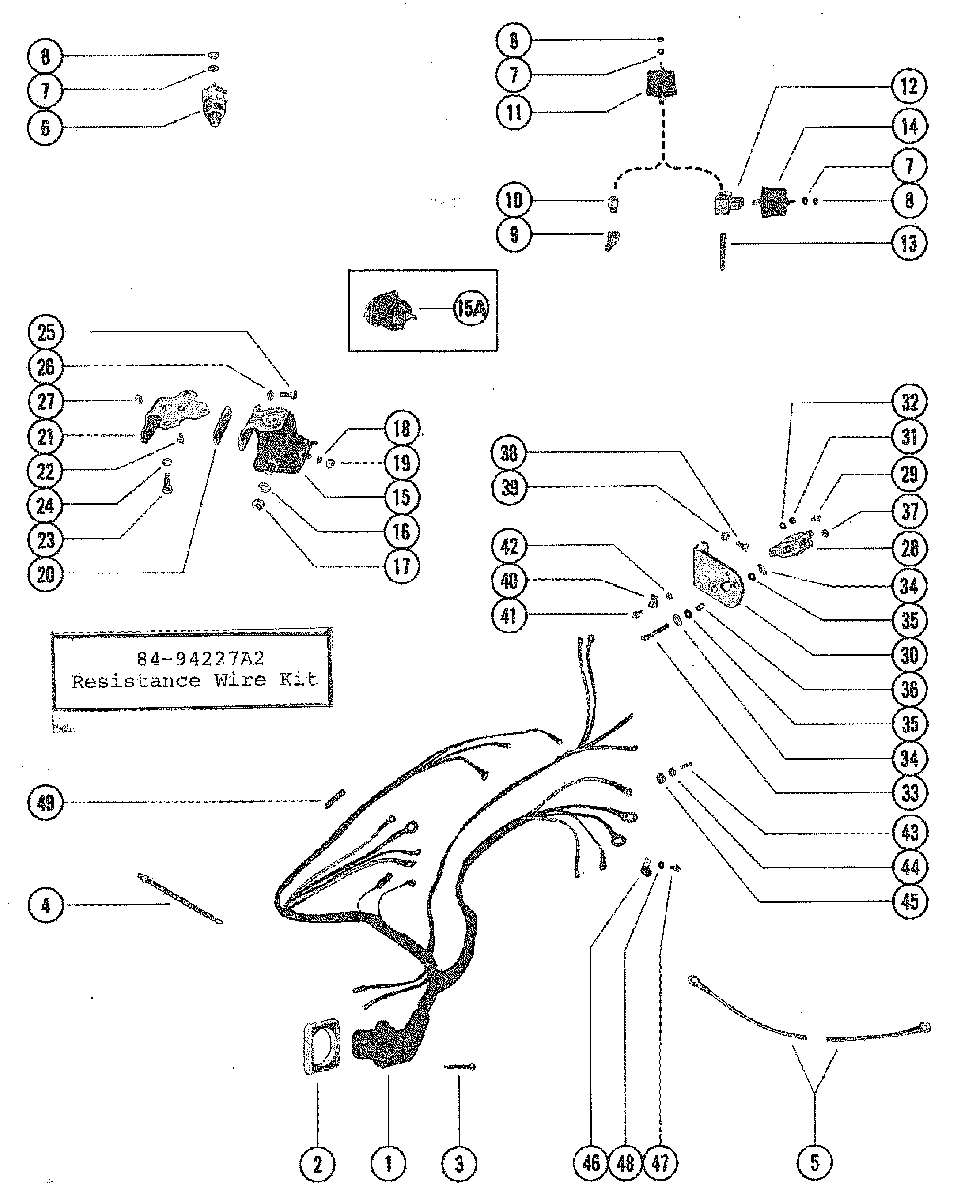

WIRING HARNESS AND STARTER SOLENOID для Mercruiser - 165 GM 250 I/L6 1970-1978 2770032 THRU 5178958

  • №
    Артикул
    Название
  • 1
    56386A1 WIRING HARNESS, EXTERNAL
    SERIAL 00000000-03211672
    WIRING HARNESS, EXTERNAL
    SERIAL 00000000-03211672
  • 1
    84-61805A1 WIRING HARNESS, EXTERNAL
    SERIAL 03211673-03464447
    WIRING HARNESS, EXTERNAL
    SERIAL 03211673-03464447
  • 1
    84-63796A1 WIRING HARNESS, EXTERNAL
    SERIAL 03464448-3774864)
    WIRING HARNESS, EXTERNAL
    SERIAL 03464448-3774864)
  • 1
    84-86674A2 WIRING HARNESS, EXTERNAL
    SERIAL 03774865-09999999
    WIRING HARNESS, EXTERNAL
    SERIAL 03774865-09999999
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET(3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET(3/4")
  • 4
    61990 STRAP, NYLON - STATER SOLENOID LEAD
    SERIAL 00000000-03464447
    STRAP, NYLON - STATER SOLENOID LEAD
    SERIAL 00000000-03464447
  • 5
    45108 BATTERY CABLE, POSITIVE
    SERIAL 00000000-03464447
    BATTERY CABLE, POSITIVE
    SERIAL 00000000-03464447
  • 5
    45107 BATTERY CABLE, NEGATIVE
    SERIAL 00000000-03464447
    BATTERY CABLE, NEGATIVE
    SERIAL 00000000-03464447
  • 6
    806490T WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 7
    13-26996 LOCKWASHER, SENDER AND SWITCH TERMINALS (#10)
    LOCKWASHER, SENDER AND SWITCH TERMINALS (#10)
  • 8
    11-68219 NUT, SENDER AND SWITCH TERMIALS (10-32)
    NUT, SENDER AND SWITCH TERMIALS (10-32)
  • 9
    22-32974 ADAPTOR, OIL PRESSURE SNDER TO CYLINDER BLOCK
    SERIAL 00000000-03464447
    ADAPTOR, OIL PRESSURE SNDER TO CYLINDER BLOCK
    SERIAL 00000000-03464447
  • 10
    22-8M0123050 FITTING, OIL PRESSURE SENDER ADAPTOR
    FITTING, OIL PRESSURE SENDER ADAPTOR
  • 11
    8M0068784 OIL PRESSURE SENDER ASSEEMBLY
    OIL PRESSURE SENDER ASSEEMBLY
  • 12
    22-52930 FITTING, TEE - OIL PRESSURE SENDER
    SERIAL 03464448-04607009
    FITTING, TEE - OIL PRESSURE SENDER
    SERIAL 03464448-04607009
  • 13
    22-64698 NIPPLE, OIL PRESSURE SENDER AND SWITCH
    SERIAL 03464448-04607009
    NIPPLE, OIL PRESSURE SENDER AND SWITCH
    SERIAL 03464448-04607009
  • 14
    87-805605A1 SWITCH, OIL PRESSURE
    SERIAL 03464448-04607009
    SWITCH, OIL PRESSURE
    SERIAL 03464448-04607009
  • 15
    25661T1 STARTER SOLENOID
    SERIAL 00000000-04471565
    STARTER SOLENOID
    SERIAL 00000000-04471565
  • 15A
    89-853654A1 STARTER SOLENOID
    SERIAL 04471566-09999999
    STARTER SOLENOID
    SERIAL 04471566-09999999
  • 16
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 17
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 18
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 19
    11-68219 NUT, STARTER SOLENIOD TERMINAL (10-32)
    NUT, STARTER SOLENIOD TERMINAL (10-32)
  • 20
    36177 INSULATOR, STARTER SOLENOID BRACKET
    SERIAL 00000000-03464447
    INSULATOR, STARTER SOLENOID BRACKET
    SERIAL 00000000-03464447
  • 21
    36176A2 BRACKET ASSEMBLY, STARTER SOLENOID MOUNTING SERIAL#3464447 A
    SERIAL 00000000-03464447
    BRACKET ASSEMBLY, STARTER SOLENOID MOUNTING SERIAL#3464447 A
    SERIAL 00000000-03464447
  • 22
    49342 BUMPER, MOUNTING BRACKET
    SERIAL 00000000-03464447
    BUMPER, MOUNTING BRACKET
    SERIAL 00000000-03464447
  • 23
    10-32417 SCREW, MOUNTING BRACKET TO EXHAUST MANIFOLD (5/8")
    SERIAL 00000000-03464447
    SCREW, MOUNTING BRACKET TO EXHAUST MANIFOLD (5/8")
    SERIAL 00000000-03464447
  • 24
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    SERIAL 00000000-03464447
    LOCKWASHER, MOUNTING BRACKET SCREW
    SERIAL 00000000-03464447
  • 25
    10-69028 SCREW, STARTER SOLENIOD MOUNTING (3/4")
    SCREW, STARTER SOLENIOD MOUNTING (3/4")
  • 26
    13-26992 LOCKWASHER, STARTER SOLENIOD SCREW
    LOCKWASHER, STARTER SOLENIOD SCREW
  • 27
    11-826709109 NUT, STARTER SOLENIOD SCREW
    NUT, STARTER SOLENIOD SCREW
  • 28
    59816 CIRCUIT BREAKER
    SERIAL 03211673-03774864
    CIRCUIT BREAKER
    SERIAL 03211673-03774864
  • 29
    10-36046 SCREW, WIRING HARNESS LEAD TO CURCUIT BREAKER
    SERIAL 03211673-03774864
    SCREW, WIRING HARNESS LEAD TO CURCUIT BREAKER
    SERIAL 03211673-03774864
  • 30
    90923 BRACKET, CURCUIT BREAKER
    SERIAL 03211673-03464447
    BRACKET, CURCUIT BREAKER
    SERIAL 03211673-03464447
  • 28
    88-65093 CIRCUIT BREAKER
    SERIAL 03774865-04884834
    CIRCUIT BREAKER
    SERIAL 03774865-04884834
  • 28
    88-11178A01 CIRCUIT BREAKER
    SERIAL 03774865-09999999
    CIRCUIT BREAKER
    SERIAL 03774865-09999999
  • 31
    11-68219 NUT, WIRING HARNESS LEADS TO CURCUIT BREAKER STUDS
    SERIAL 03774865-09999999
    NUT, WIRING HARNESS LEADS TO CURCUIT BREAKER STUDS
    SERIAL 03774865-09999999
  • 32
    13-26996 LOCKEWASHER, WIRING HARNESS LEADS TO CURCUIT BREAKER STUDS
    SERIAL 03774865-09999999
    LOCKEWASHER, WIRING HARNESS LEADS TO CURCUIT BREAKER STUDS
    SERIAL 03774865-09999999
  • 30
    90923 BRACKET, CURCUIT BREAKER
    NOT AS SHOWN SERIAL 03464448-09999999
    BRACKET, CURCUIT BREAKER
    NOT AS SHOWN SERIAL 03464448-09999999
  • 33
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SERIAL 03211673-09999999
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SERIAL 03211673-09999999
  • 34
    12-47960 WASHER, CIRCUIT BREAKER ATTACHING SCREW
    SERIAL 03211673-09999999
    WASHER, CIRCUIT BREAKER ATTACHING SCREW
    SERIAL 03211673-09999999
  • 35
    25-61999 GORMMET, CIRCUIT BRACKET ATTACHING SCREW
    SERIAL 03211673-09999999
    GORMMET, CIRCUIT BRACKET ATTACHING SCREW
    SERIAL 03211673-09999999
  • 36
    23-61998 SPACER, CIRCUIT BREAKER ATTACHHING SCREW
    SERIAL 03211673-03464447
    SPACER, CIRCUIT BREAKER ATTACHHING SCREW
    SERIAL 03211673-03464447
  • 36
    23-63431 SPACER, CIRCUIT BREAKER ATTACHING SCREW
    SERIAL 03464448-09999999
    SPACER, CIRCUIT BREAKER ATTACHING SCREW
    SERIAL 03464448-09999999
  • 37
    11-46438 NUT, CIRCUIT BREAKER ATTACHING SCREW
    NUT, CIRCUIT BREAKER ATTACHING SCREW
  • 38
    10-21077 SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (7/8")
    SERIAL 03211673-03464447
    SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (7/8")
    SERIAL 03211673-03464447
  • 38
    10-20359 SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (1")
    SERIAL 03211673-03464447
    SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (1")
    SERIAL 03211673-03464447
  • 39
    13-35048 LOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
    SERIAL 03211673-03464447
    LOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
    SERIAL 03211673-03464447
  • 38
    10-34353 SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (1")
    SERIAL 03464448-09999999
    SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (1")
    SERIAL 03464448-09999999
  • 39
    13-35048 LOCKWASHER, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD SCREW
    SERIAL 03464448-09999999
    LOCKWASHER, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD SCREW
    SERIAL 03464448-09999999
  • 40
    54-60517 CLAMP, WIRING HARNESS TO BRACKET
    SERIAL 03211673-03464447
    CLAMP, WIRING HARNESS TO BRACKET
    SERIAL 03211673-03464447
  • 41
    10-37656 SCREW, CLAMP TO BRACKET (9/16")
    SERIAL 03211673-03464447
    SCREW, CLAMP TO BRACKET (9/16")
    SERIAL 03211673-03464447
  • 42
    11-46438 NUT, CLAMP ATTACHING SCREW
    SERIAL 03211673-03464447
    NUT, CLAMP ATTACHING SCREW
    SERIAL 03211673-03464447
  • 43
    10-20055 SCREW, WIRING HARNESS LEAD TO ALTERNATOR (3/8")
    SCREW, WIRING HARNESS LEAD TO ALTERNATOR (3/8")
  • 44
    13-26996 LOCKWASHER, WIRING HARNESS LEAD SCREW
    LOCKWASHER, WIRING HARNESS LEAD SCREW
  • 45
    12-30164 WASHER, WIRING HARNESS LEAD SCREW
    WASHER, WIRING HARNESS LEAD SCREW
  • 46
    54-54178 CLAMP, TEMPERATURE SENDER WIRE
    SERIAL 32100073-03464447
    CLAMP, TEMPERATURE SENDER WIRE
    SERIAL 32100073-03464447
  • 47
    10-98259 SCREW, TEMPERATURE SENDER CLAMP TO CYLINDER HEAD (1/2")
    SERIAL 32100073-03464447
    SCREW, TEMPERATURE SENDER CLAMP TO CYLINDER HEAD (1/2")
    SERIAL 32100073-03464447
  • 48
    13-35048 LOCKWASHER, TEMPERATURE SENDER CLAMP SCREW
    SERIAL 32100073-03464447
    LOCKWASHER, TEMPERATURE SENDER CLAMP SCREW
    SERIAL 32100073-03464447
  • 49
    5790811 SLEEVE, WIRING HARNESS
    SLEEVE, WIRING HARNESS
