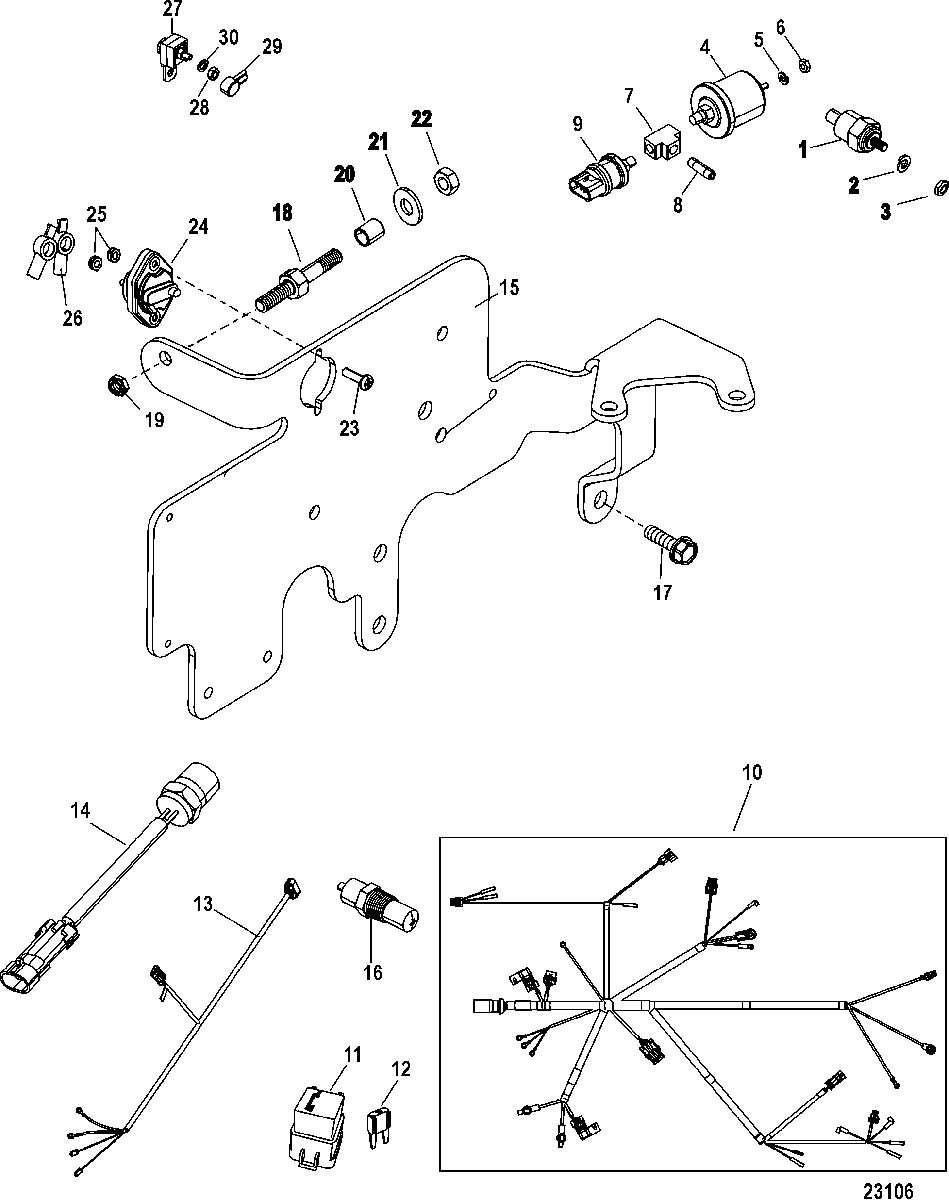

Electrical Components для Mercruiser - 3.0L GM 181 I/L4 1A002000 THRU 1A020543

  • №
    Артикул
    Название
  • 1
    806490T SENDER, Water Temperature
    SENDER, Water Temperature
  • 1
    49734 SENDER, Water Temperature
    (Dual)
    SENDER, Water Temperature
    (Dual)
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 3
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 4
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 4
    37293T SENDER ASSEMBLY, Oil Pressure
    (Dual)
    SENDER ASSEMBLY, Oil Pressure
    (Dual)
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    22-52930 FITTING
    FITTING
  • 8
    22-38992 FITTING
    FITTING
  • 9
    87-865934 Pressure Switch, (SPDT)
    Pressure Switch, (SPDT)
  • 10
    84-865931T03 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 11
    882751 RELAY
    RELAY
  • 12
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 12
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 13
    84-866727T01 HARNESS ASSEMBLY, Transom
    HARNESS ASSEMBLY, Transom
  • 14
    87-866115 Temperature Switch, (Normally Open 130-110 degrees), Turn Key Start
    Temperature Switch, (Normally Open 130-110 degrees), Turn Key Start
  • 15
    899719T BRACKET, Electrical Mounting
    BRACKET, Electrical Mounting
  • 16
    48952 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 17
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 18
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 19
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 20
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 21
    12-20533 WASHER
    WASHER
  • 22
    11-8267139 NUT, (.250-28), Lock
    NUT, (.250-28), Lock
  • 23
    10-830861 SCREW, (#8-32 x .625)
    SCREW, (#8-32 x .625)
  • 24
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 25
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 26
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 27
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 28
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 29
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 30
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
