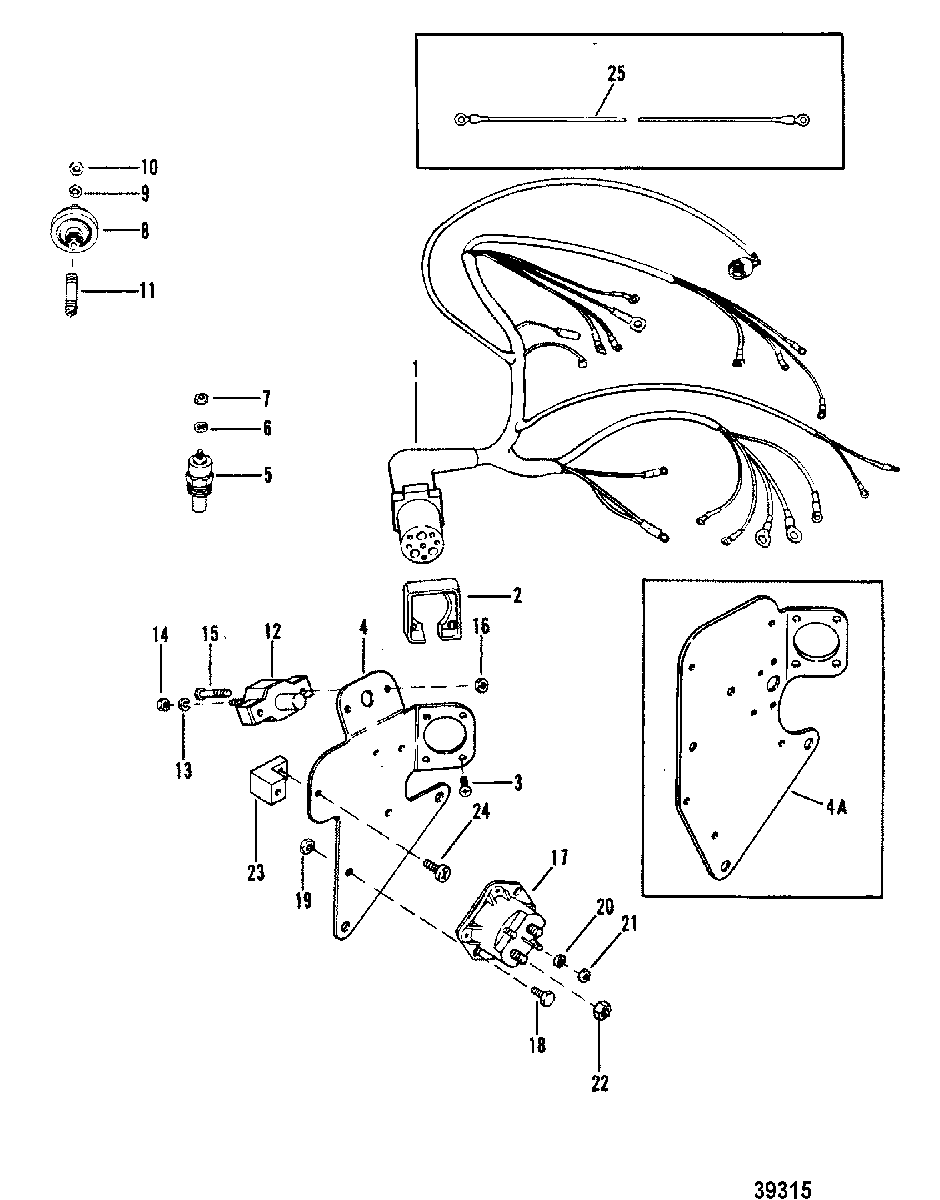

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 3.0L GM 181 I/L4 1987-1989 0B450801 THRU 0C856558

  • №
    Артикул
    Название
  • 1
    84-98422A4 HARNESS ASSEMBLY (SHIFT COMPONENTS/BRACKET)
    HARNESS ASSEMBLY (SHIFT COMPONENTS/BRACKET)
  • 1
    84-98422A10 HARNESS ASSEMBLY (SHIFT COMPONENTS/ROCKER COVER)
    HARNESS ASSEMBLY (SHIFT COMPONENTS/ROCKER COVER)
  • 1
    84-98422A11 HARNESS ASSEMBLY (DIGITAL IGNITION)
    HARNESS ASSEMBLY (DIGITAL IGNITION)
  • 2
    26079A2 PLATE, WIRING HARNESS - METAL
    PLATE, WIRING HARNESS - METAL
  • 3
    10-34696 SCREW, (#8-32 x .750), PLATE - METAL
    SCREW, (#8-32 x .750), PLATE - METAL
  • 2
    26079A2 PLATE KIT, Wire Harness Mount, PLASTIC
    PLATE KIT, Wire Harness Mount, PLASTIC
  • 3
    10-15001 SCREW, (#8-16 x .875), PLATE - PLASTIC
    SCREW, (#8-16 x .875), PLATE - PLASTIC
  • 4
    98428T3 BRACKET, MOUNTING (CONVENTIONAL IGNITION)
    BRACKET, MOUNTING (CONVENTIONAL IGNITION)
  • 4A
    19427T BRACKET, MOUNTING (DIGITAL IGNITIION)
    BRACKET, MOUNTING (DIGITAL IGNITIION)
  • 5
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 5
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 8
    8M0068784 SENDER
    SENDER
  • 8
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 10
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 11
    22-32974 FITTING, (.125-27) Adaptor, OIL PRESSURE SENDER
    FITTING, (.125-27) Adaptor, OIL PRESSURE SENDER
  • 12
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 12
    88-93582 BREAKER, Circuit - 60 Ampere
    BREAKER, Circuit - 60 Ampere
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 14
    11-68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
    NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 15
    10-45862 SCREW, (#10-32 x .875), CIRCUIT BREAKER
    SCREW, (#10-32 x .875), CIRCUIT BREAKER
  • 16
    11-46438 NUT, (#10-32), INSULATOR SCREW
    NUT, (#10-32), INSULATOR SCREW
  • 17
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 18
    10-98256 SCREW, (.250-28 x .500), STARTER SOLENOID
    SCREW, (.250-28 x .500), STARTER SOLENOID
  • 19
    11-826709109 NUT, (.250-28), STARTER COLENOID SCREW
    NUT, (.250-28), STARTER COLENOID SCREW
  • 20
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
  • 21
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 22
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 23
    86-45915 TERMINAL BLOCK
    USE WITH RING TERMINALS
    TERMINAL BLOCK
    USE WITH RING TERMINALS
  • 24
    10-62568 SCREW, (#10-16 x .375), TERMINAL BLOCK
    USE WITH RING TERMINALS
    SCREW, (#10-16 x .375), TERMINAL BLOCK
    USE WITH RING TERMINALS
  • 24
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK
    USE WITH RING TERMINALS
    SCREW, (#10-16 x .500), TERMINAL BLOCK
    USE WITH RING TERMINALS
  • 25
    84-94227A2 RESISTOR WIRE KIT (TO REPLACE RESISTER WIRE)
    RESISTOR WIRE KIT (TO REPLACE RESISTER WIRE)
  • -
    84-11149A5 HARNESS ASSEMBLY, Adapter
    THIS KIT IS USED TO ADAPT "RING TERMINAL" AND "BULLET CONNECTOR" WIRING HARNESSES.
    HARNESS ASSEMBLY, Adapter
    THIS KIT IS USED TO ADAPT "RING TERMINAL" AND "BULLET CONNECTOR" WIRING HARNESSES.
