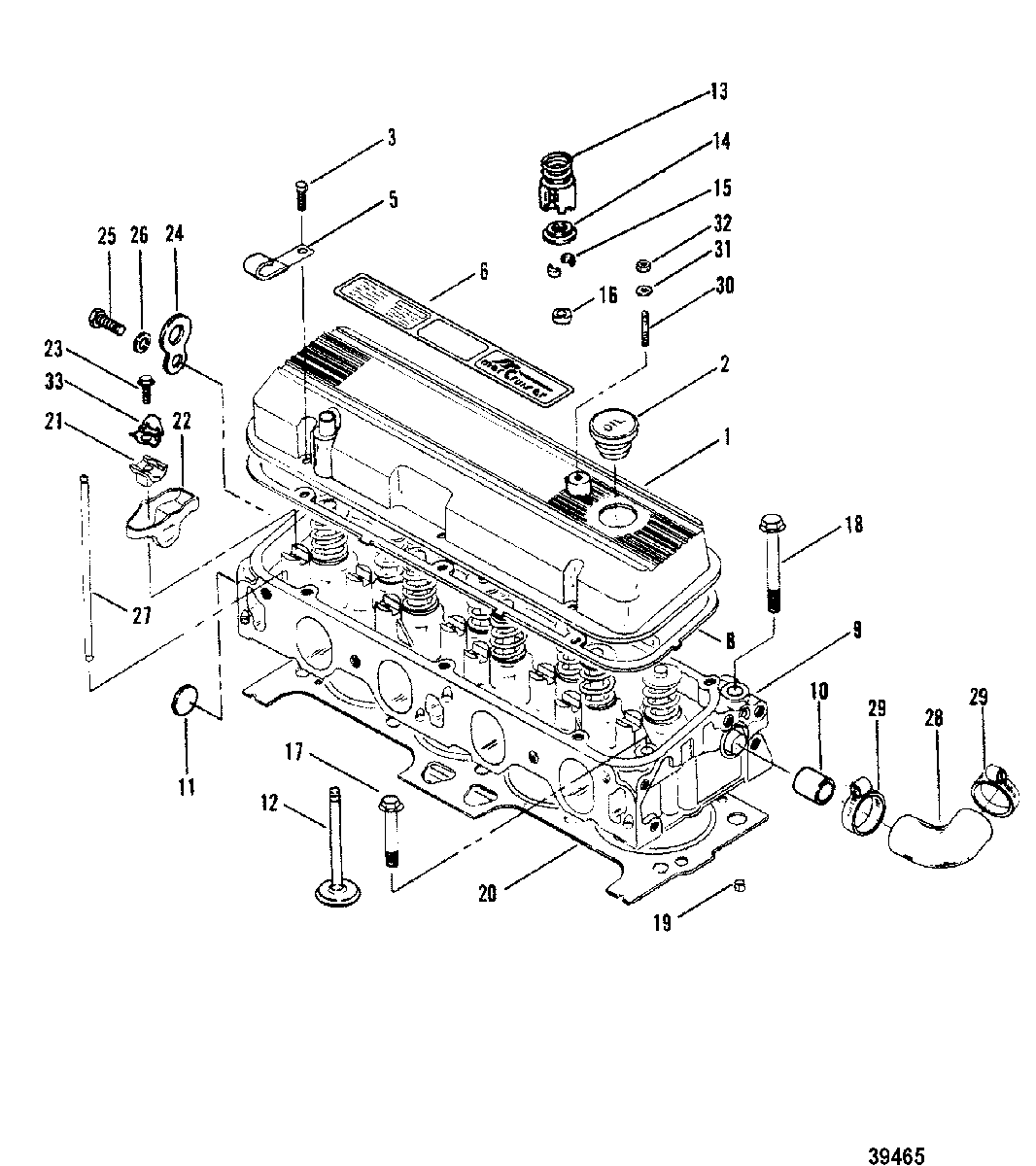

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 190 (4 BBL.) MERCURY 224 I/L4 1985-1986 6916779 THRU 0B436390

  • №
    Артикул
    Название
  • 1
    41638A1 ROCKER COVER
    ROCKER COVER
  • 2
    36-807152 CAP, Filler, OIL FILLER
    CAP, Filler, OIL FILLER
  • 3
    10-65746 SCREW, (.250-20 x .750), ROCKER COVER
    SCREW, (.250-20 x .750), ROCKER COVER
  • 5
    54-642351 J CLIP, ROCKER COVER SCREW
    J CLIP, ROCKER COVER SCREW
  • 6
    37-11857170 DECAL, ROCKER COVER
    (170)
    DECAL, ROCKER COVER
    (170)
  • 6
    37-11857190 DECAL, ROCKER COVER
    (190)
    DECAL, ROCKER COVER
    (190)
  • 6
    37-118572 DECAL, ROCKER COVER
    (165)
    DECAL, ROCKER COVER
    (165)
  • 6
    37-118571 DECAL, ROCKER COVER
    (3.7L)
    DECAL, ROCKER COVER
    (3.7L)
  • 6
    37-1681215 DECAL, ROCKER COVER
    (3.7L/LX)
    DECAL, ROCKER COVER
    (3.7L/LX)
  • 8
    27-73666 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 9
    966-9451R2 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 10
    23-72119 SLEEVE
    SLEEVE
  • 11
    19-74832 PLUG, CYLINDER HEAD
    PLUG, CYLINDER HEAD
  • 12
    44182A1 VALVE, EXHAUST
    STANDARD
    VALVE, EXHAUST
    STANDARD
  • 12
    42449 VALVE, EXHAUS
    (.015 O.S.)
    VALVE, EXHAUS
    (.015 O.S.)
  • 12
    44181A1 VALVE, INTAKE
    STANDARD
    VALVE, INTAKE
    STANDARD
  • 12
    42451 VALVE, INTAKE
    (.015 O.S.)
    VALVE, INTAKE
    (.015 O.S.)
  • 13
    99292T1 SPRING ASSEMBLY, Valve
    SPRING ASSEMBLY, Valve
  • 14
    75412 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 15
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 16
    26-75624 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 17
    10-67503 SCREW, (4-3/8 Inch), CYLINDER HEAD (4-3/8")
    SCREW, (4-3/8 Inch), CYLINDER HEAD (4-3/8")
  • 18
    10-72769 SCREW, CYLINDER HEAD (5-1/8")
    SCREW, CYLINDER HEAD (5-1/8")
  • 19
    17-67489 PIN, CYLINDER HEAD
    PIN, CYLINDER HEAD
  • 20
    27-13709 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 21
    67504 BALL, Rocker Arm
    BALL, Rocker Arm
  • 22
    806751A1 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 23
    10-67506 SCREW, ROCKER ARM
    SCREW, ROCKER ARM
  • 24
    54-72531 LIFTING EYE
    LIFTING EYE
  • 25
    10-48948 SCREW, (.437-14 x .880), LIFTING EYE-FRONT
    SCREW, (.437-14 x .880), LIFTING EYE-FRONT
  • 26
    13-32993 LOCKWASHER, (.437), LIFTING EYE SCREW-FRONT
    LOCKWASHER, (.437), LIFTING EYE SCREW-FRONT
  • 25
    10-68101 SCREW, (.375-16 x 1.375), LIFTING EYE -REAR
    SCREW, (.375-16 x 1.375), LIFTING EYE -REAR
  • 27
    675025 PUSH ROD, VALVE
    (NO DYE)
    PUSH ROD, VALVE
    (NO DYE)
  • 27
    675023 PUSH ROD, VALVE
    (RED DYE)
    PUSH ROD, VALVE
    (RED DYE)
  • 27
    675024 PUSH ROD, VALVE
    (BLUE DYE)
    PUSH ROD, VALVE
    (BLUE DYE)
  • 27
    67502T2 PUSH ROD, VALVE
    (YELLOW DYE)
    PUSH ROD, VALVE
    (YELLOW DYE)
  • 28
    32-89653 HOSE, CYLINDER HEAD TO EXHAUST MANIFOLD
    HOSE, CYLINDER HEAD TO EXHAUST MANIFOLD
  • 29
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 30
    16-38525 STUD, THROTTLE CABLE ANCHOR
    180-190-3.7L/LX
    STUD, THROTTLE CABLE ANCHOR
    180-190-3.7L/LX
  • 31
    12-24664 WASHER, (M4 x 20), THROTTLE CABLE ANCHOR
    180-190-3.7L/LX
    WASHER, (M4 x 20), THROTTLE CABLE ANCHOR
    180-190-3.7L/LX
  • 32
    11-826709109 NUT, (.250-28), THROTTLE CABLE ANCHOR
    180-190-3.7L/LX
    NUT, (.250-28), THROTTLE CABLE ANCHOR
    180-190-3.7L/LX
  • 33
    806751A1 BAFFLE, OIL
    BAFFLE, OIL
  • -
    27-43186A1 GASKET SET
    GASKET SET
