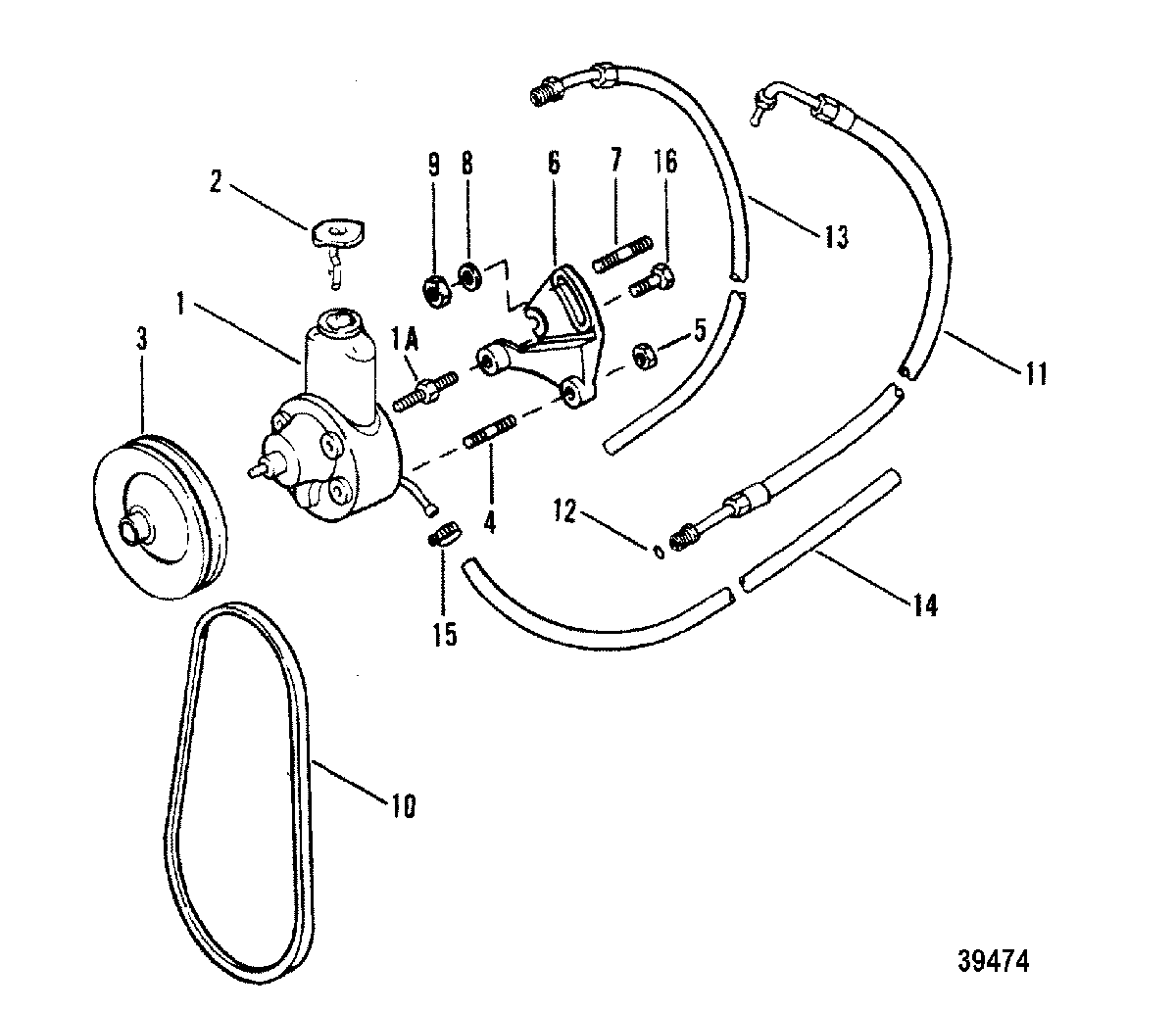

POWER STEERING COMPONENTS для Mercruiser - 165 (2 BBL.) MERCURY 224 I/L4 1987 0B434941 THRU 0B774251

  • №
    Артикул
    Название
  • 1
    90495A7 PUMP ASSEMBLY, POWER STEERING
    PUMP ASSEMBLY, POWER STEERING
  • 1A
    16-41878 STUD, POWER STEERING PUMP
    STUD, POWER STEERING PUMP
  • 2
    77108 CAP, POWER STEERING PUMP
    CAP, POWER STEERING PUMP
  • 3
    73873A1 PULLEY, POWER STEERING PUMP
    PULLEY, POWER STEERING PUMP
  • 4
    16-90511 STUD, POWER STEERING PUMP
    STUD, POWER STEERING PUMP
  • 5
    11-25269 NUT, (.375-24), MOUNTING STUD
    NUT, (.375-24), MOUNTING STUD
  • 6
    90510A1 BRACKET, PUMP MOUNTING
    BRACKET, PUMP MOUNTING
  • 7
    16-54176 STUD, (1 5/8), MOUNTING
    (NON STEPSTUD)
    STUD, (1 5/8), MOUNTING
    (NON STEPSTUD)
  • 7
    16-13363 STUD, MOUNTING
    STEPSTUDS
    STUD, MOUNTING
    STEPSTUDS
  • 7
    16-13364 STUD, MOUNTING
    STEPSTUDS
    STUD, MOUNTING
    STEPSTUDS
  • 8
    12-55149 WASHER, MOUNTING STUD
    WASHER, MOUNTING STUD
  • 9
    11-25269 NUT, (.375-24), MOUNT STUD
    NUT, (.375-24), MOUNT STUD
  • 10
    57-64032Q1 V BELT, POWER STEERING PUMP
    V BELT, POWER STEERING PUMP
  • 11
    32-90494 HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
    HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
  • 12
    25-89879 O-RING, (.301 x .064), PRESSURE HOSE
    O-RING, (.301 x .064), PRESSURE HOSE
  • 13
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
    HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
  • 14
    32-8M0062341 HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER
    HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER
  • 15
    54-815504206 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 16
    10-4008420 SCREW, (M10 x 20), PUMP MOUNTING
    SCREW, (M10 x 20), PUMP MOUNTING
